Plug-In Charge Control System

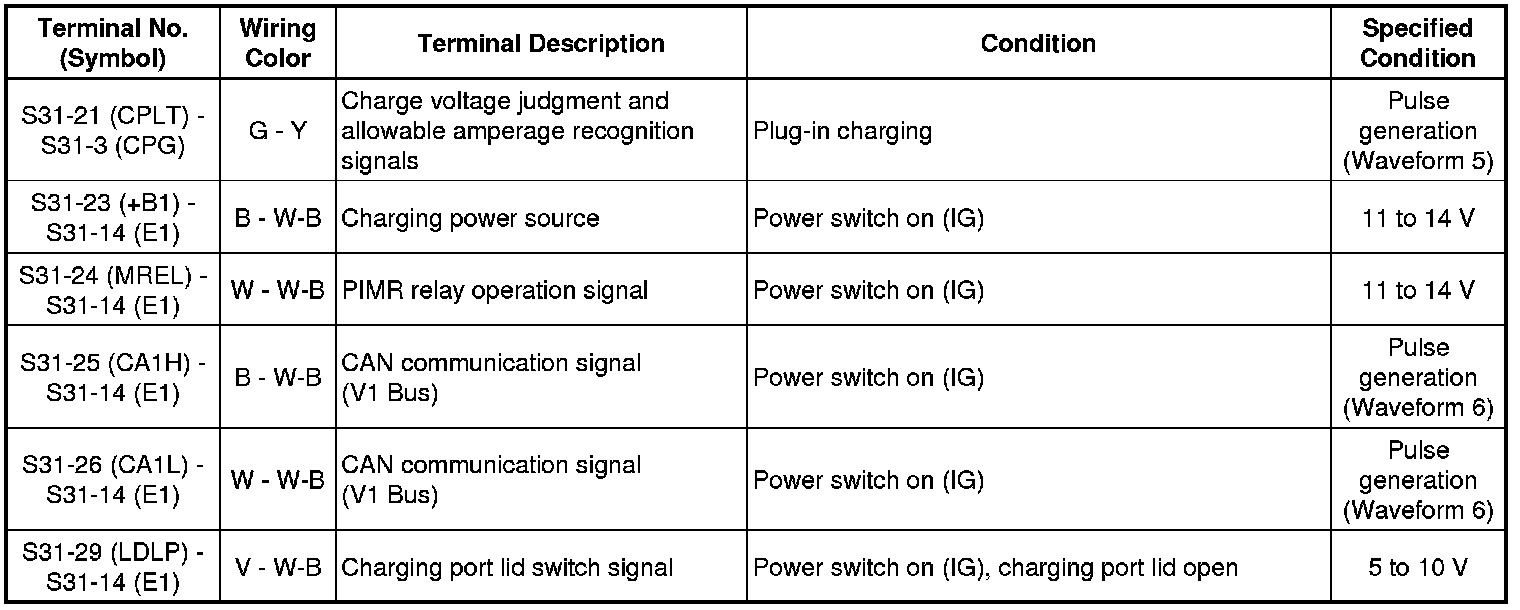

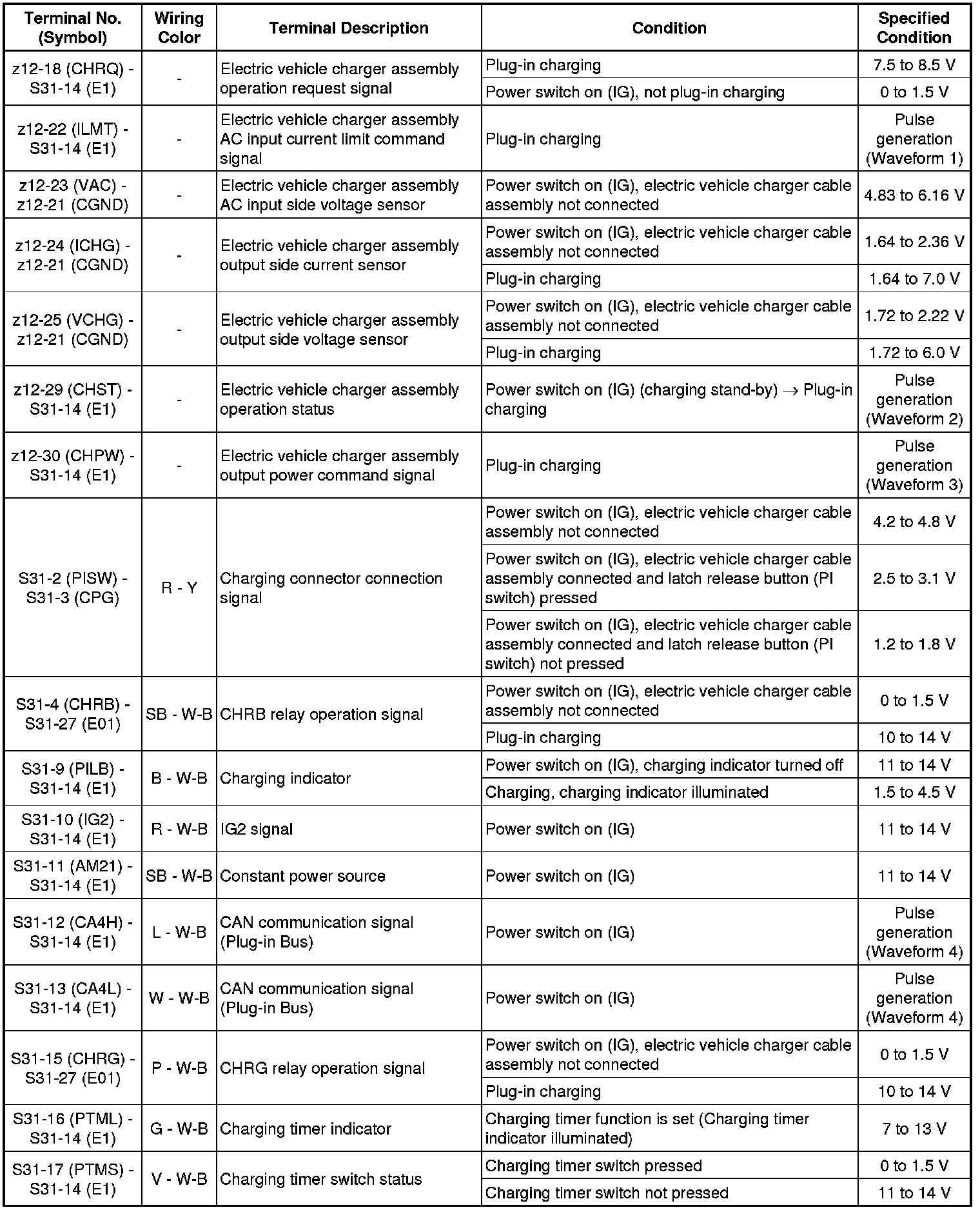

HYBRID / BATTERY CONTROL: PLUG-IN CHARGE CONTROL SYSTEM: TERMINALS OF ECU





Text in Illustration

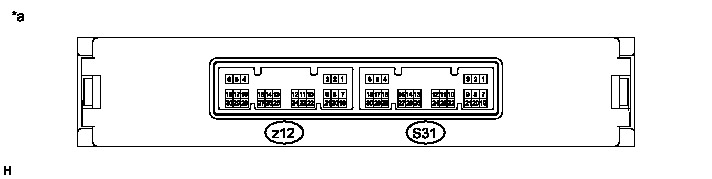

Plug-in charge control ECU assembly









1. Oscilloscope waveforms

HINT
Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

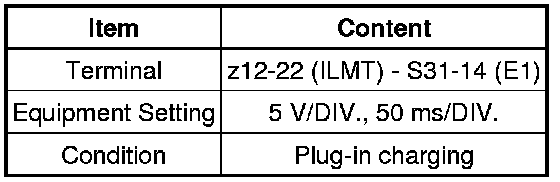

(a) Waveform 1 (Electric vehicle charger assembly AC input current limit command signal)





HINT
Duty ratio varies by the AC input current limit value of the electric vehicle charger assembly.





(b) Waveform 2 (Electric vehicle charger assembly operation status)









Text in Illustration

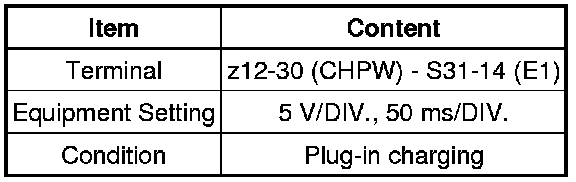

(c) Waveform 3 (Electric vehicle charger assembly output power command signal)





HINT
Duty ratio varies by the output power command value of the electric vehicle charger assembly.

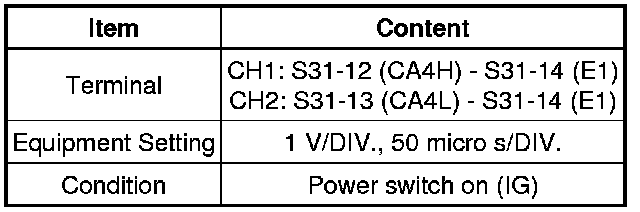

(d) Waveform 4 (CAN communication signal (Plug-in Bus))





HINT
The waveform will vary depending on the content of the digital communication (digital signal).

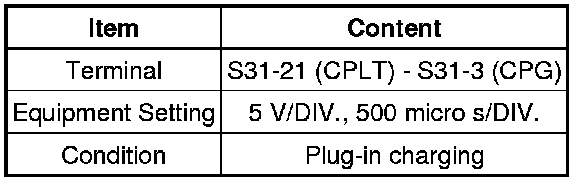

(e) Waveform 5 (Charge voltage judgment and allowable amperage recognition signals)





HINT
Duty ratio varies by the AC input allowable amperage of the charging cable and charging station.





(f) Waveform 6 (CAN communication signal (V1 Bus))





HINT
The waveform will vary depending on the content of the digital communication (digital signal).
