Data List / Active Test

HYBRID / BATTERY CONTROL: PLUG-IN CHARGE CONTROL SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

NOTICE:
* Some Data List values may vary significantly if there are slight differences in the environment in which the vehicle is operating when measurements are obtained. Variations may also occur due to aging of the vehicle. Due to these considerations, it is not always possible to provide definite values to be used for judgment of malfunctions. It is possible that a malfunction may be present even if measured values are within the reference range.
* In the event of a problem with intricate symptoms, collect sample data from another vehicle of the same model operating under identical conditions in order to reach an overall judgment by comparing all the items in the Data List.

(a) Connect the Techstream to the DLC3.

(b) Start plug-in charging the vehicle.

HINT
If plug-in charging is started with the power switch on (IG), the power switch will be turned off automatically.

(c) Turn the power switch on (IG).

NOTICE:
If the power switch is turned on (IG) during plug-in charging, the power switch will be turned off automatically after several tens of seconds.

(d) Enter the following menus: Powertrain / Plug-in Control / Data List

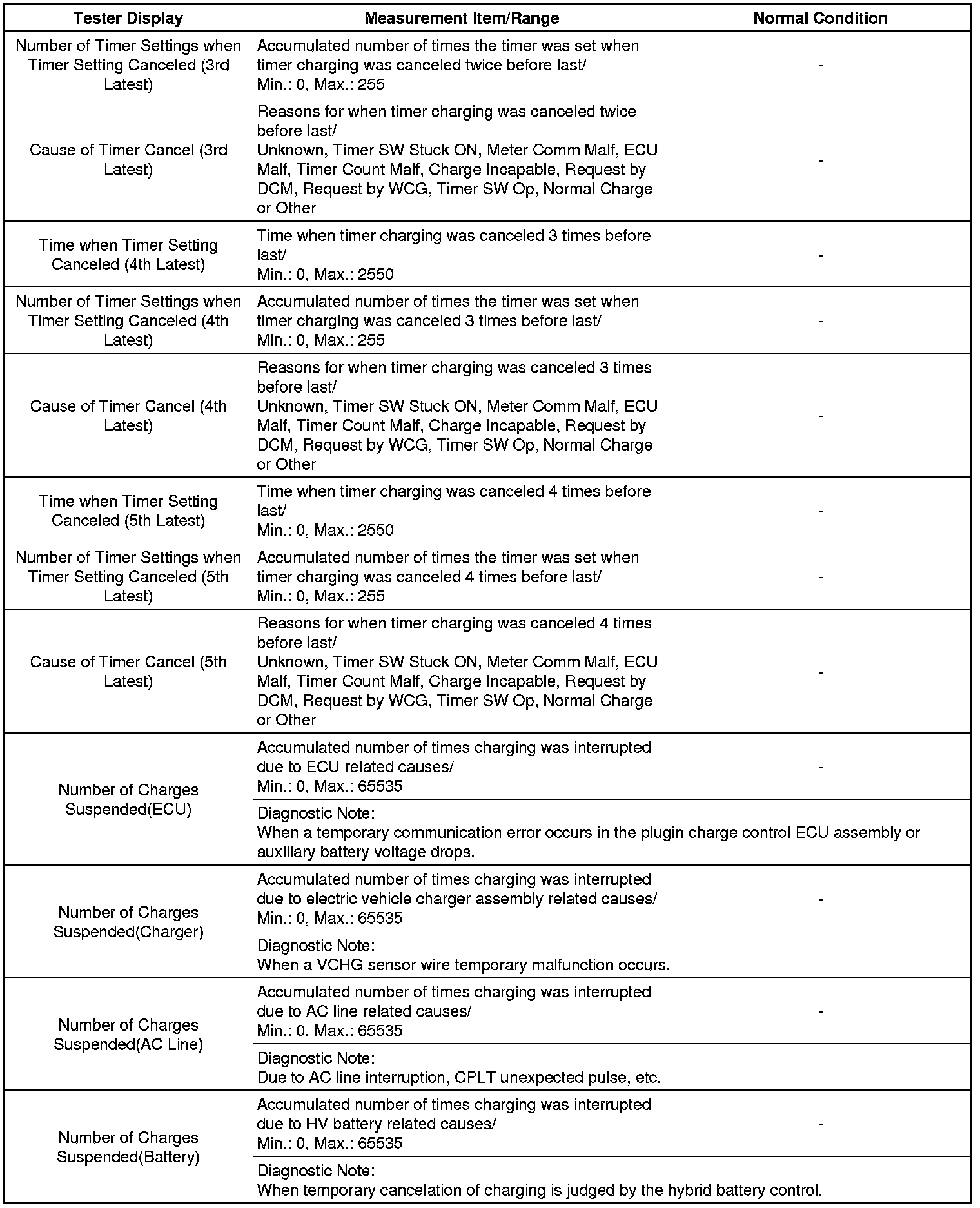

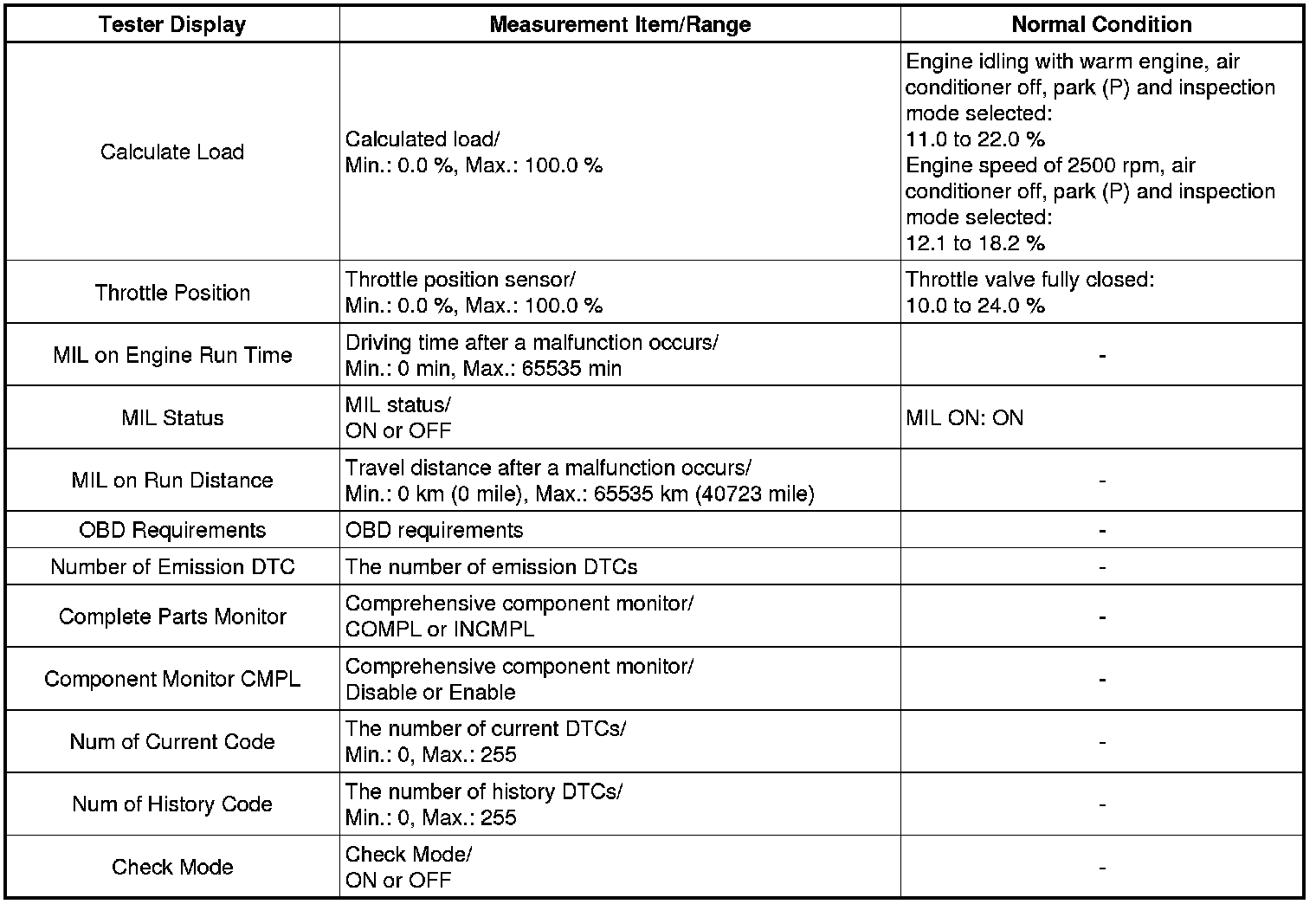

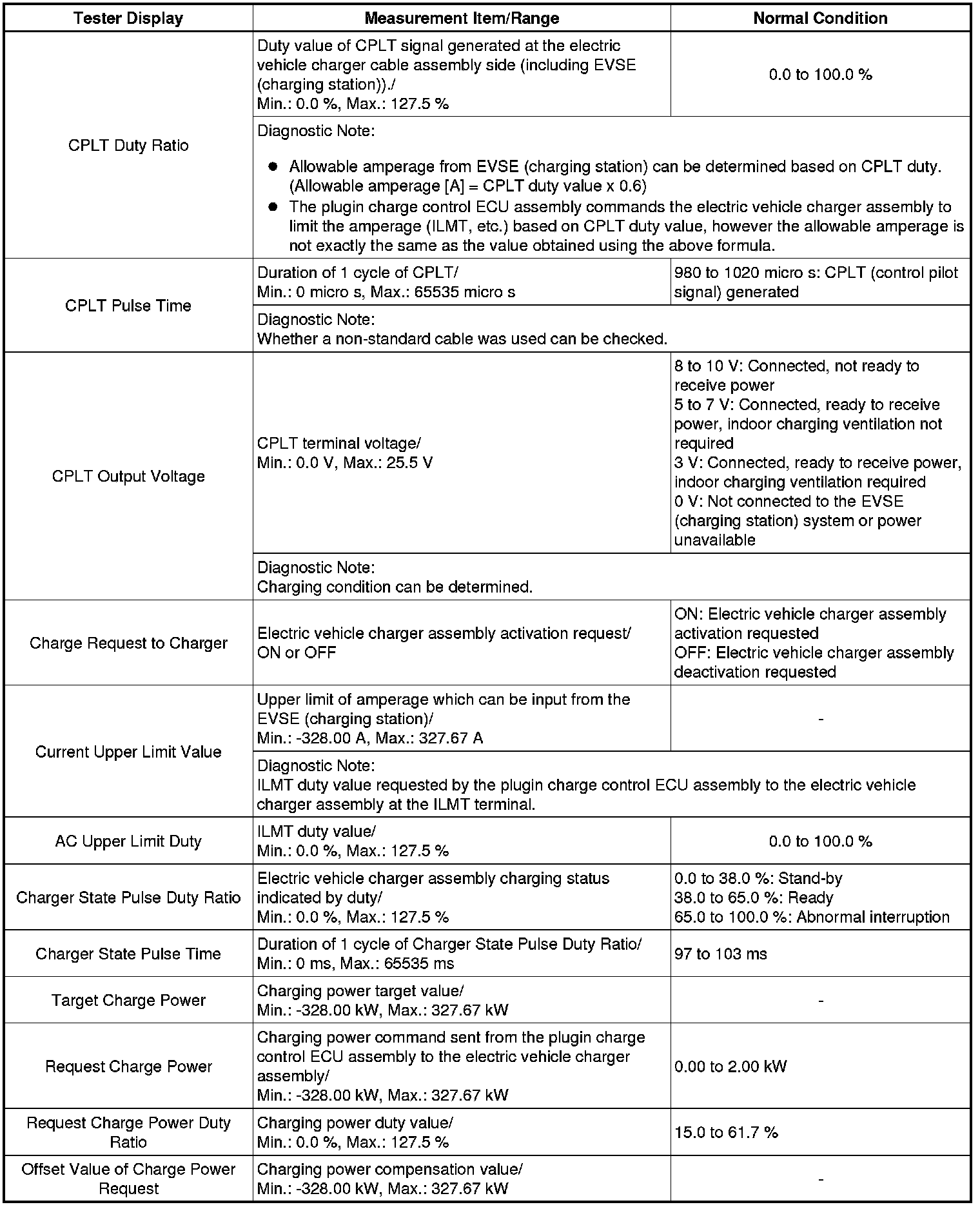

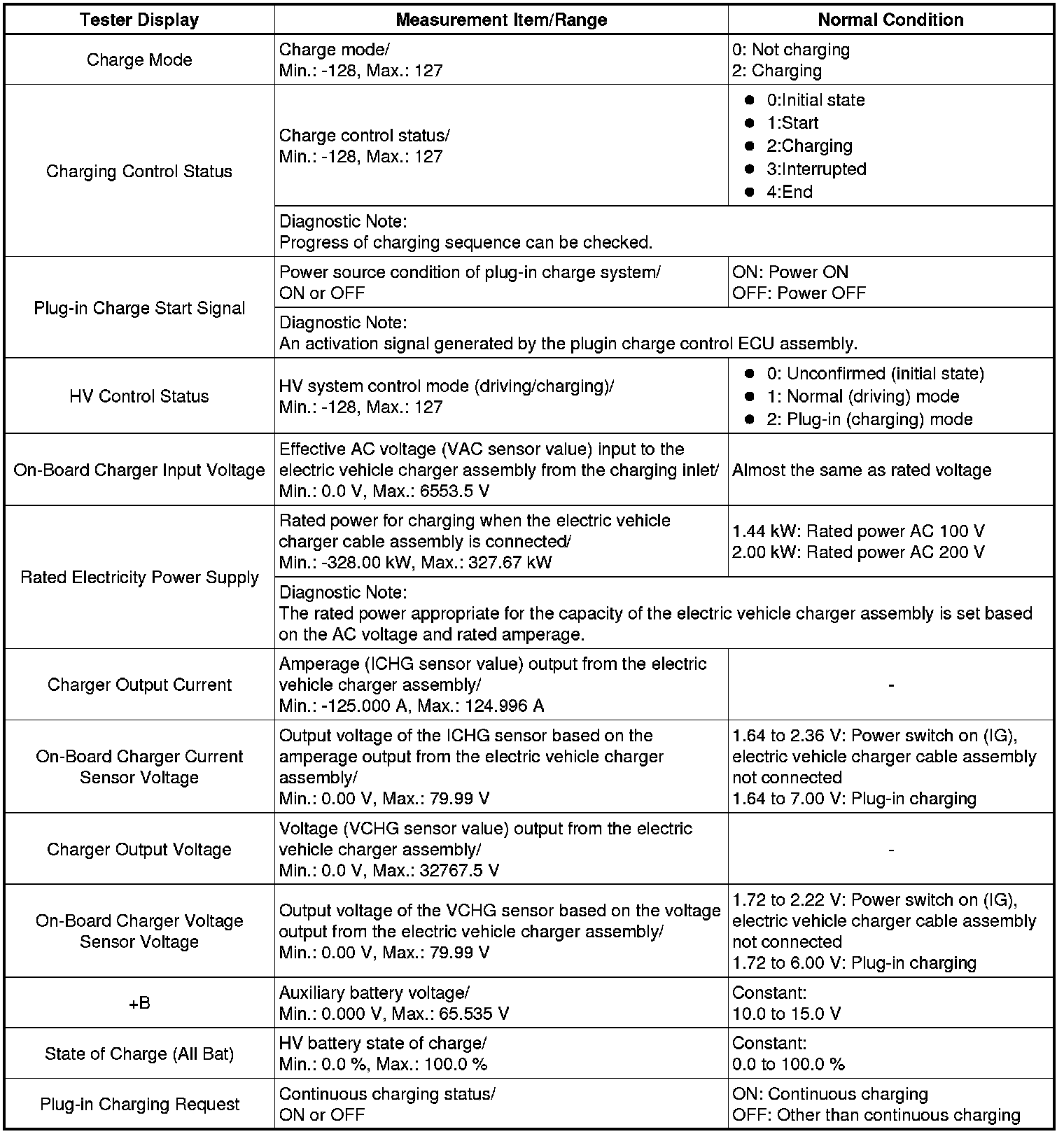

(e) Check the results by referring to the following table.

HINT
* When reviewing Data List information, try to select only the specific Data List items related to the inspection being performed. If all items are selected when checking the Data List, the interval between updates for each item will be longer, resulting in delayed or incorrect data.
