Freeze Frame Data





HYBRID / BATTERY CONTROL: PLUG-IN CHARGE CONTROL SYSTEM: FREEZE FRAME DATA

1. FREEZE FRAME DATA

HINT
The plug-in charge control ECU assembly records vehicle and driving condition information as freeze frame data the moment a DTC is stored. Freeze frame data is used to determine the condition of the vehicle at the time the malfunction occurred and to perform a reproduction test. When checking the information codes for the plug-in charge control system, refer to Detail Code 1 to 5.

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Plug-in Control / Trouble Codes.

(e) Select a DTC in order to display its freeze frame data.

(f) Check the freeze frame information recorded with the DTC.

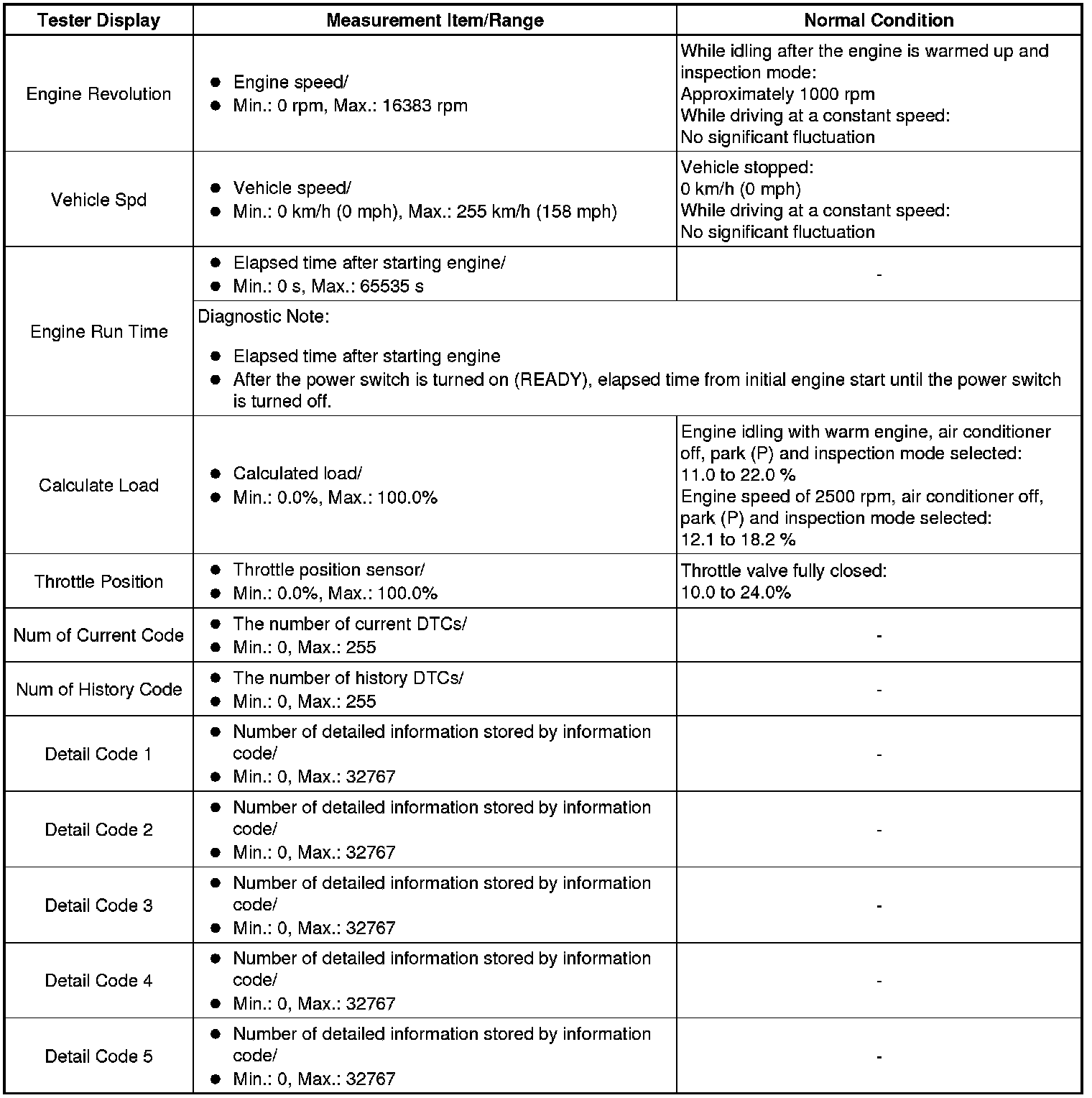

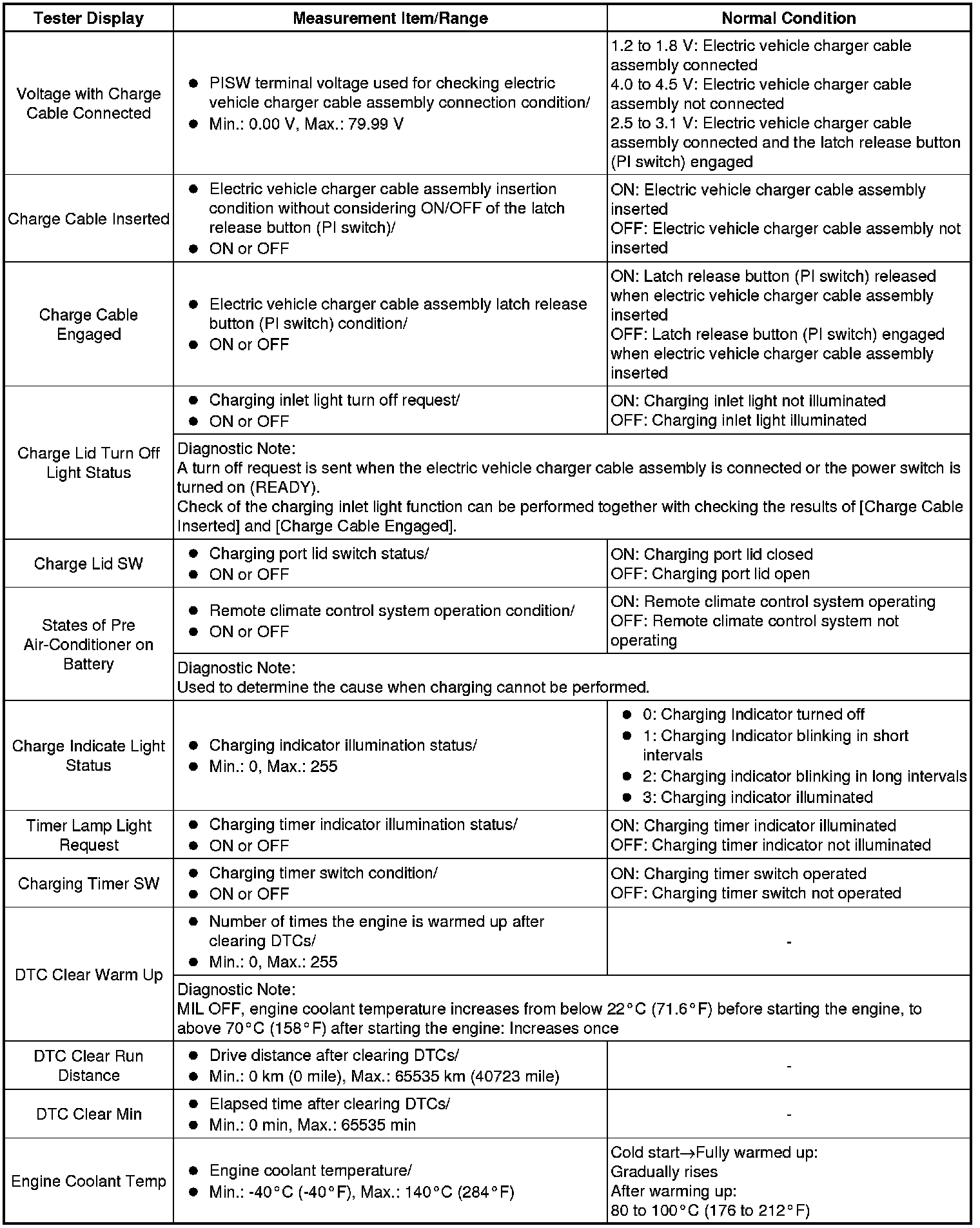

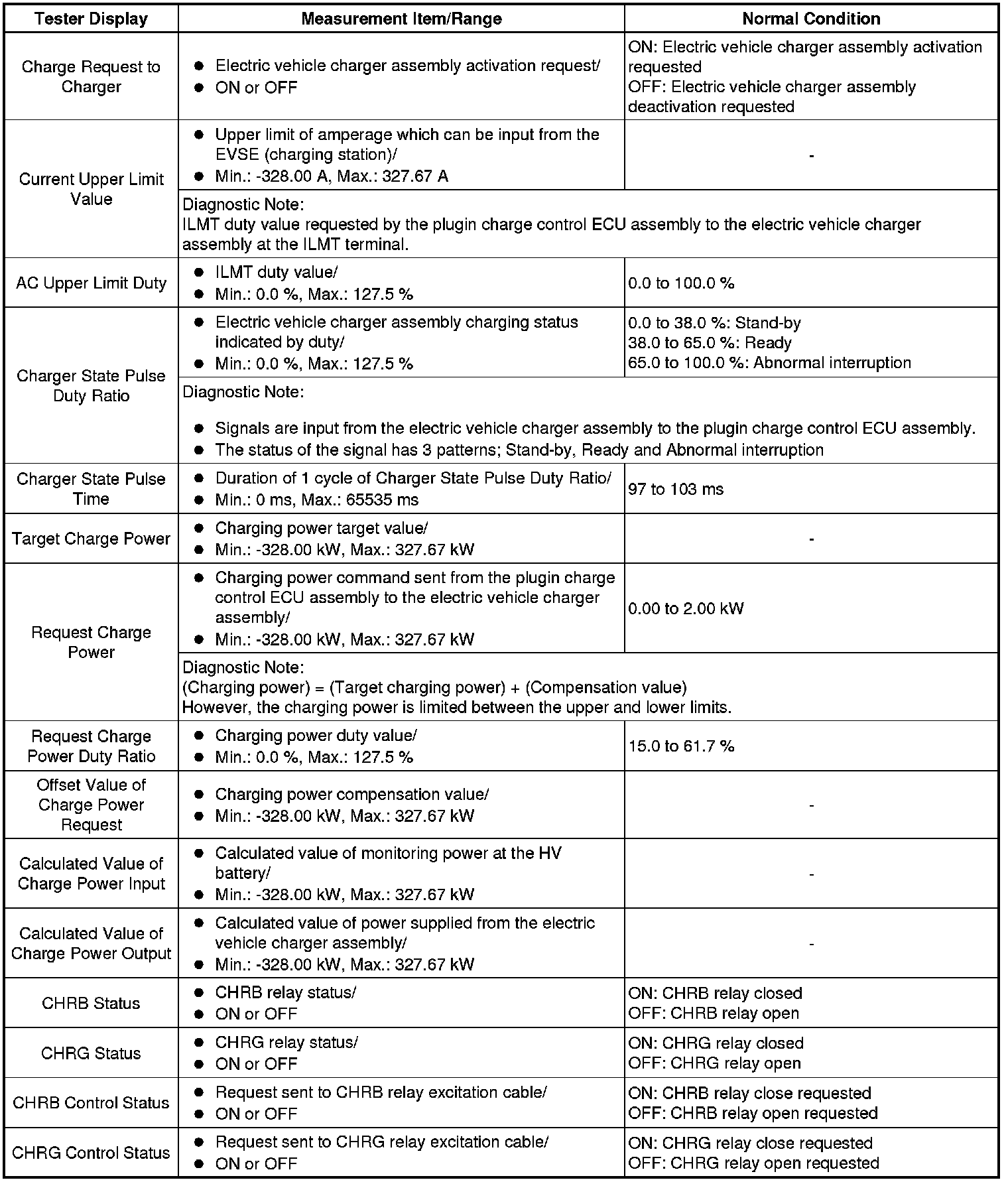

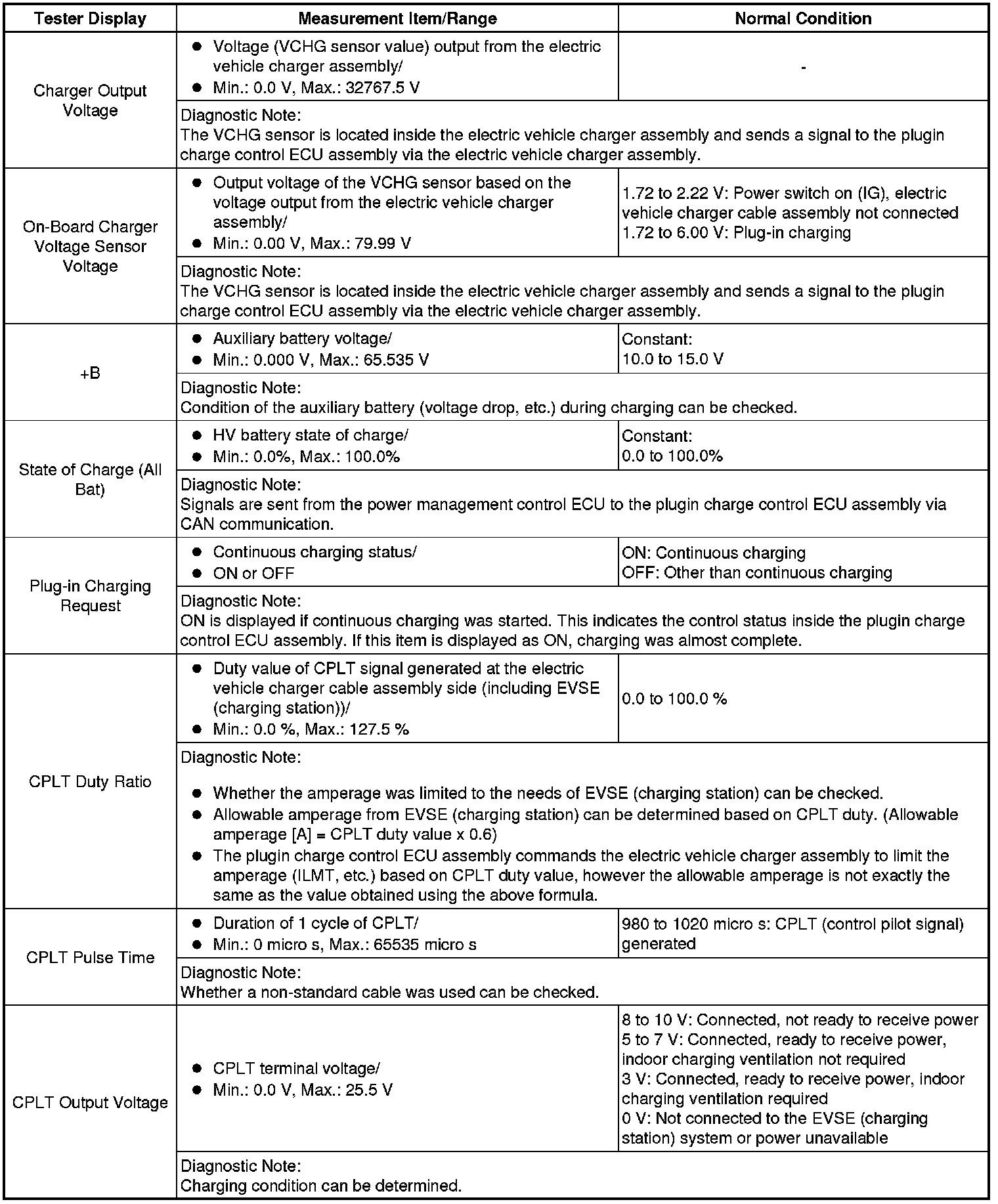

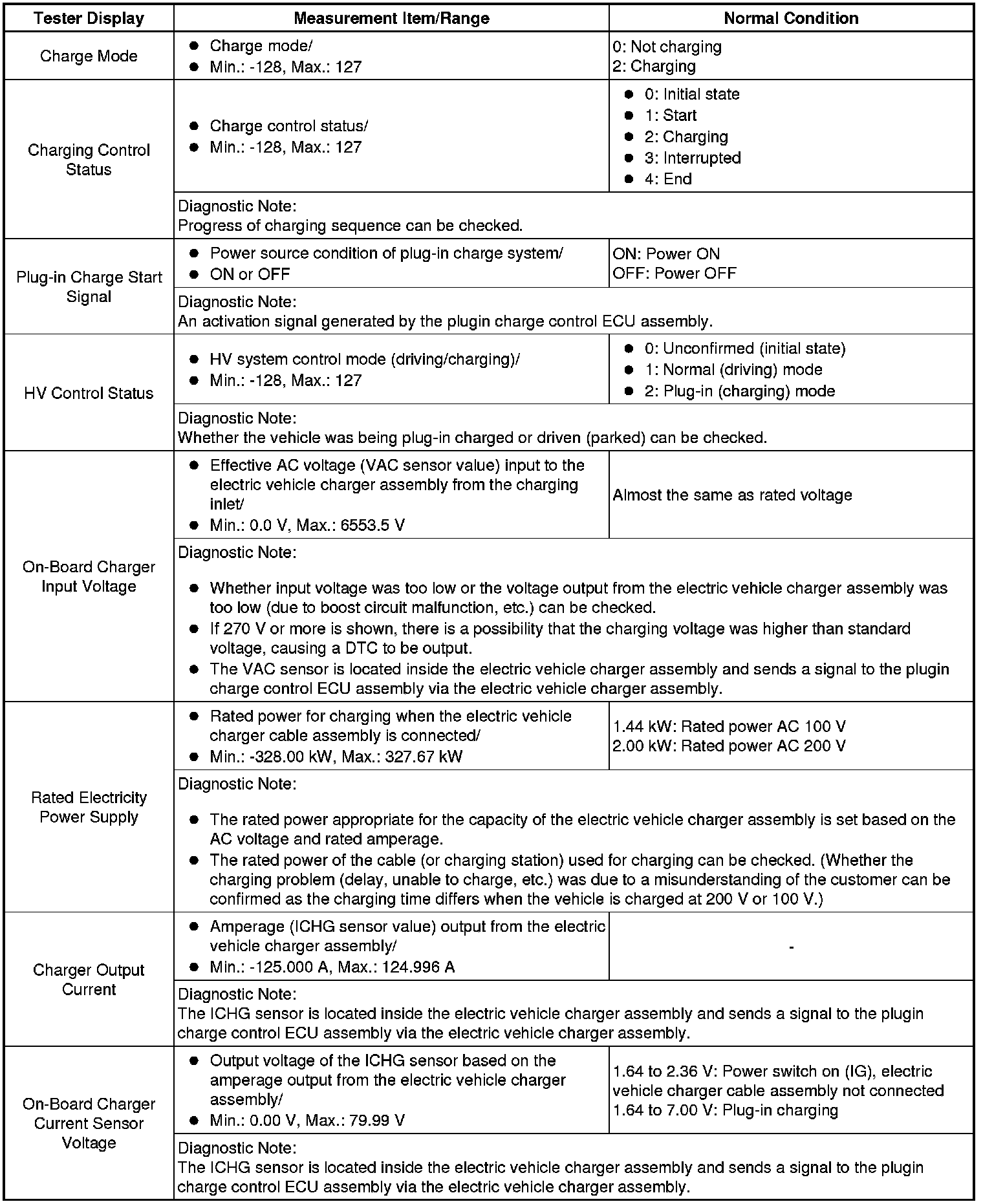

FREEZE FRAME DATA
