Accelerator Pedal Position Sensor: Testing and Inspection
HYBRID / BATTERY CONTROL: ACCELERATOR PEDAL SENSOR: ON-VEHICLE INSPECTION 1.
INSPECT ACCELERATOR PEDAL SENSOR ASSEMBLY
(a)
Connect the Techstream to the DLC3.
(b)
Turn the power switch on (IG).
(c)
Enter the following menus: Powertrain / Hybrid Control / Data List / Accel Pedal Pos #1, Accel Pedal Pos #2.
(d)
Read the Data List.

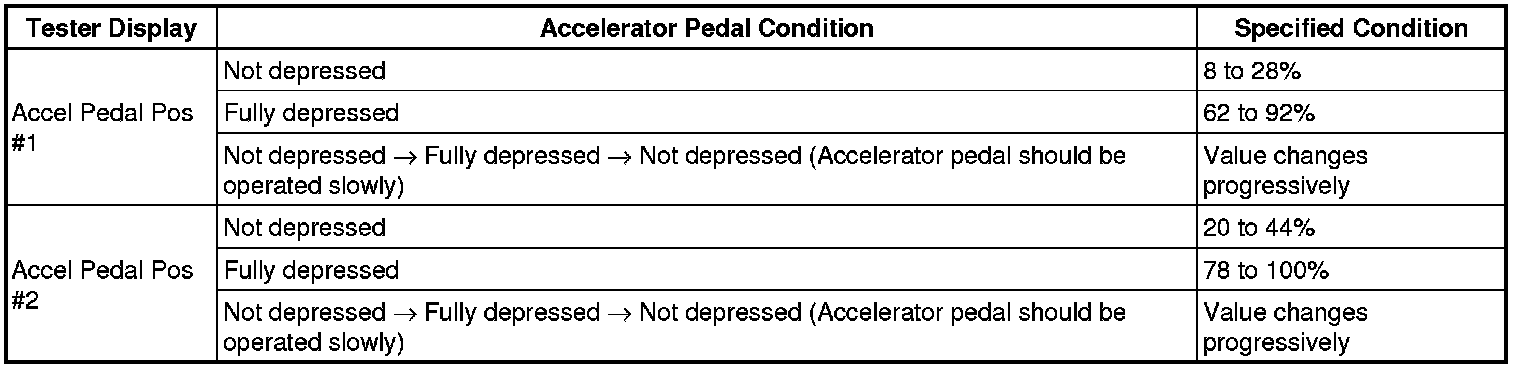

Result:
