Battery Temperature Sensor: Testing and Inspection





2ZR-FXE BATTERY / CHARGING: BATTERY THERMOMETER SENSOR: ON-VEHICLE INSPECTION

1. INSPECT BATTERY THERMOMETER SENSOR ASSEMBLY

(a) Disconnect the connector from the battery thermometer sensor assembly.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

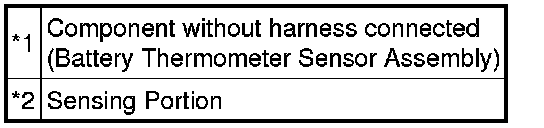

Text in Illustration





NOTICE:
* Hold the sensor only by its connector. Touching the sensor may change the resistance value.
* When measuring, the sensor temperature must be the same as the ambient temperature.

HINT
As the temperature increases, the resistance decreases (see the graph).

If the resistance is not as specified, replace the battery thermometer sensor assembly.
