2ZR-FXE EMISSION CONTROL: FUEL TANK PRESSURE SENSOR: INSTALLATION

1. INSTALL VAPOR PRESSURE SENSOR ASSEMBLY

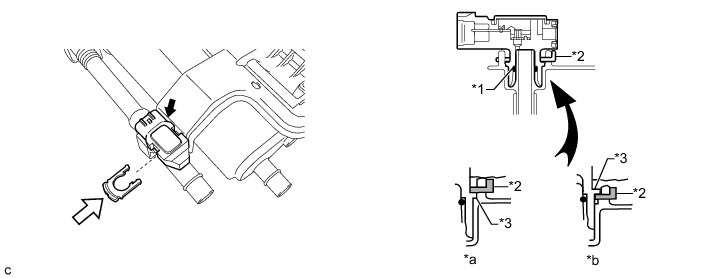

(a) Install the vapor pressure sensor assembly with the tube joint clip.

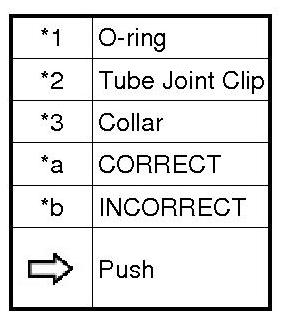

Text in Illustration





NOTICE:
* Check that there are no scratches or foreign matter on the connecting part.
* Check that the vapor pressure sensor assembly is inserted securely.
* Check that the tube joint clip is on the collar of the vapor pressure sensor assembly.
* After installing the tube joint clip, check that the tube joint is not pulled off.

(b) Connect the connector.

2. INSTALL CHARCOAL CANISTER ASSEMBLY
