Part 2

2ZR-FXE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST (Continued..)

9. Ignition System (Ignition)

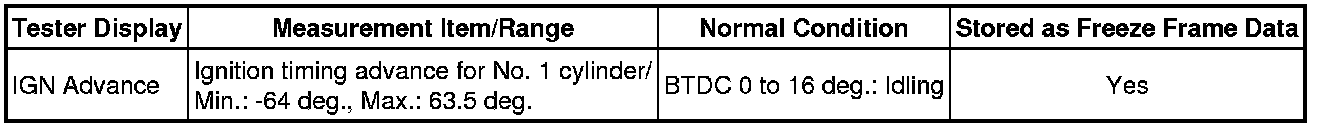

IGN Advance

Knock Feedback Value

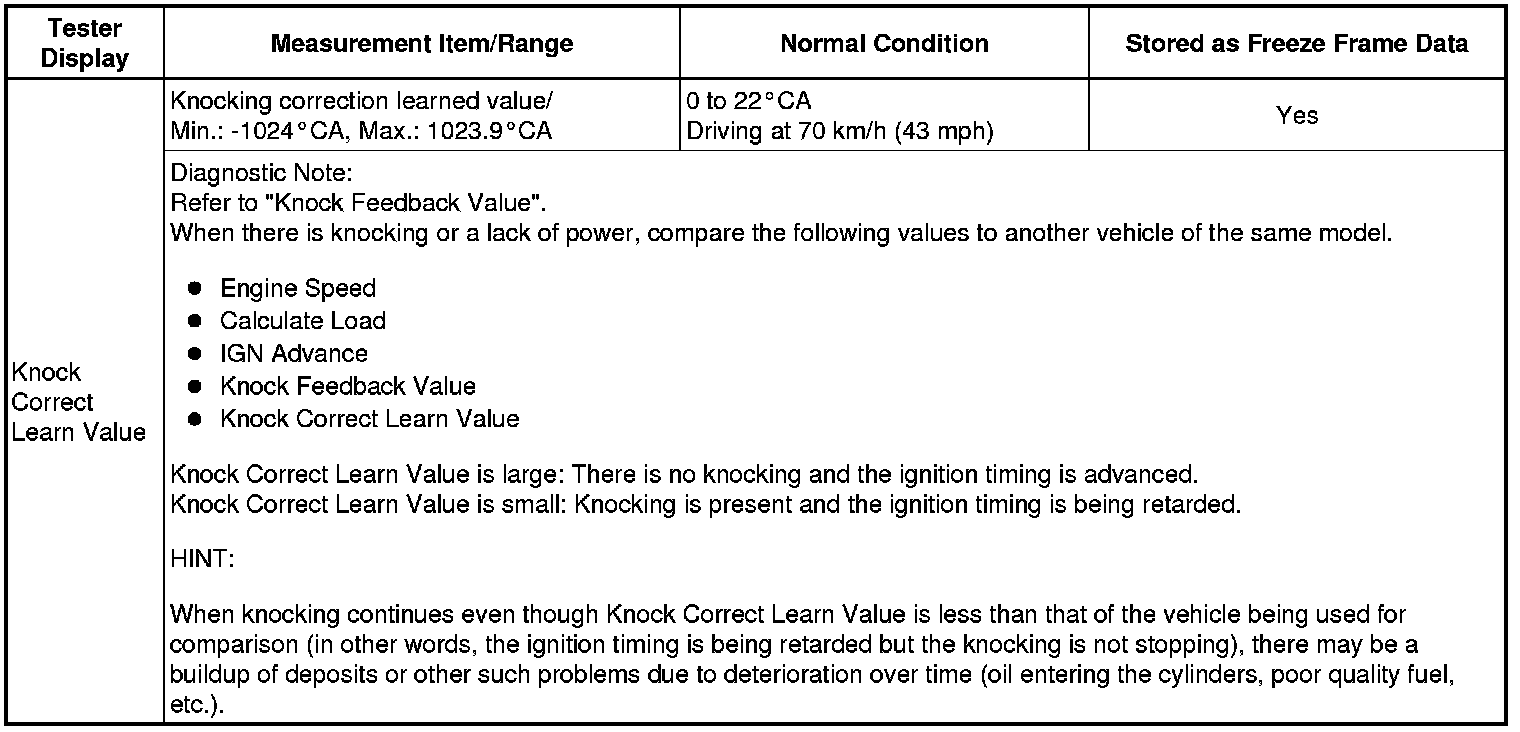

Knock Correct Learn Value

10. EGR System (All Data)

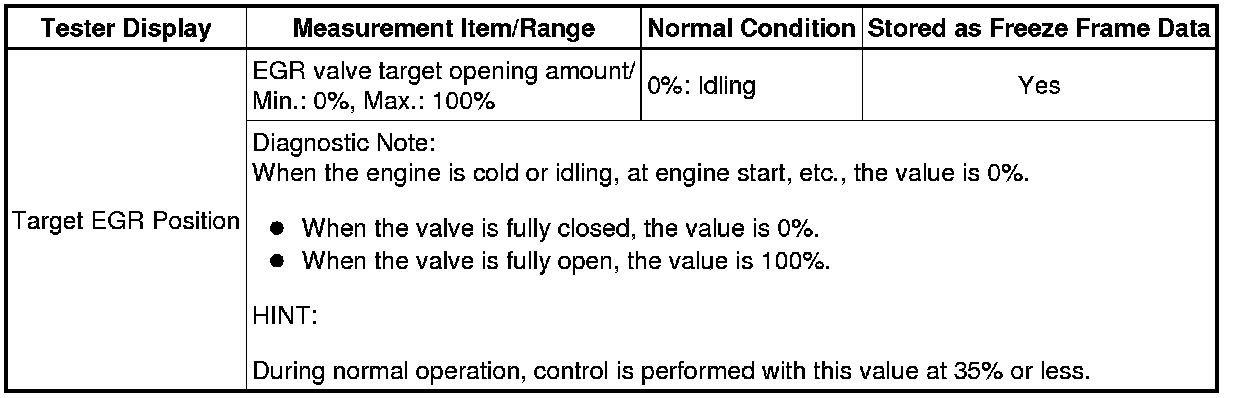

Target EGR Position

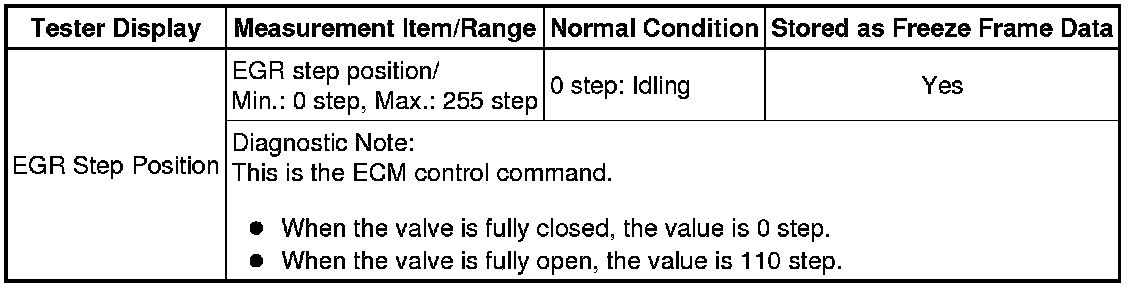

EGR Step Position

11. VVT Control 1 (All Data)

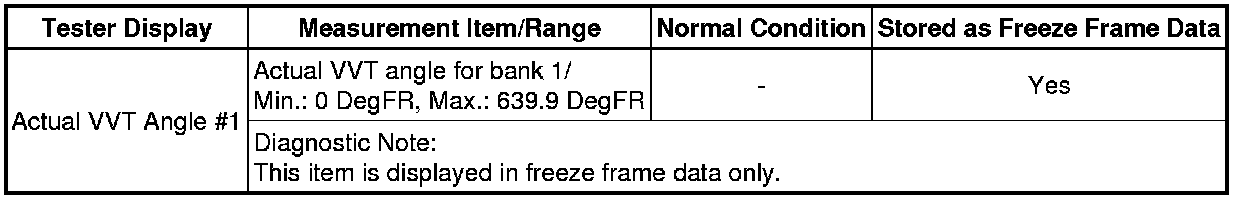

Actual VVT Angle #1

12. VVT Control 2 (Gas Valve Control)

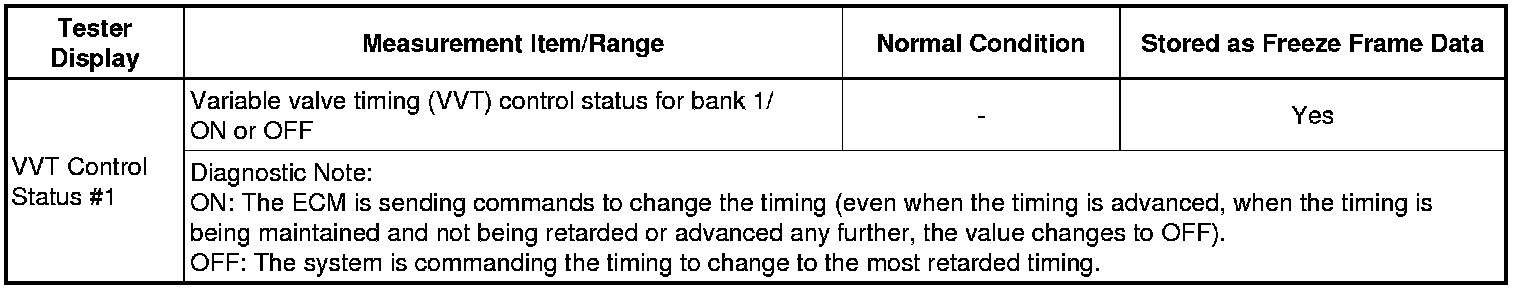

VVT Control Status #1

VVT Aim Angle #1

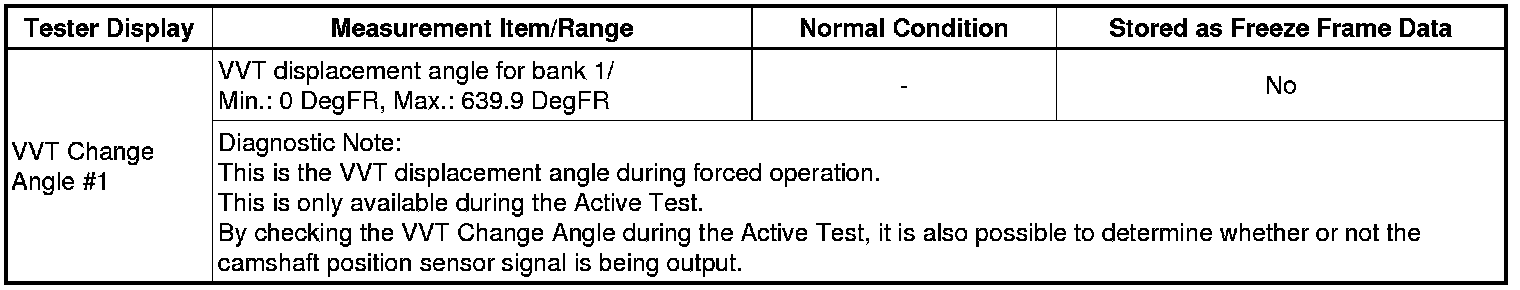

VVT Change Angle #1

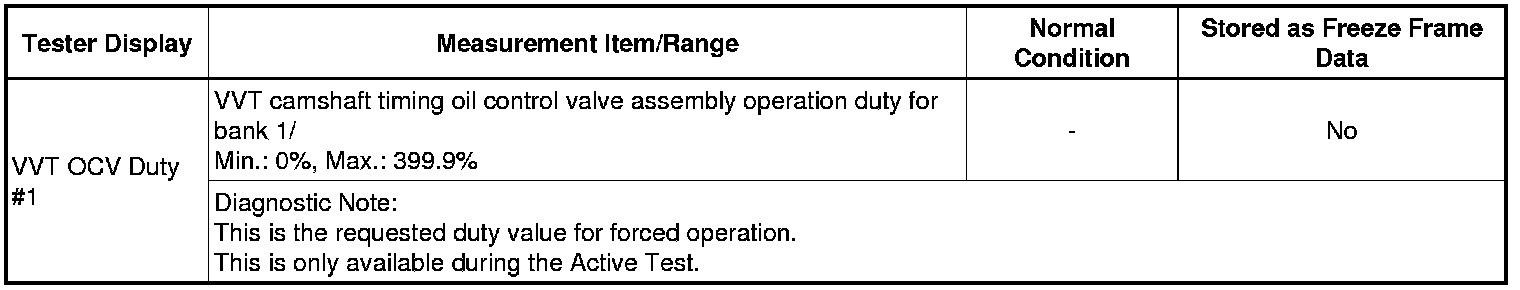

VVT OCV Duty #1

13. Various Vehicle Conditions 2 (All Data)

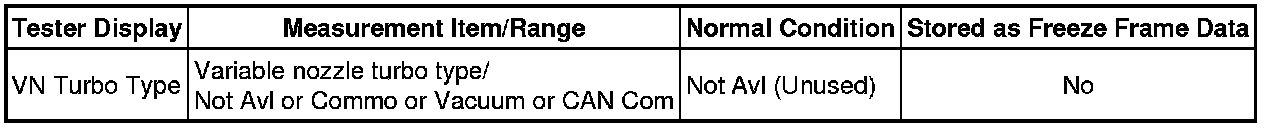

VN Turbo Type

14. Catalyst (Gas CAT Converter)

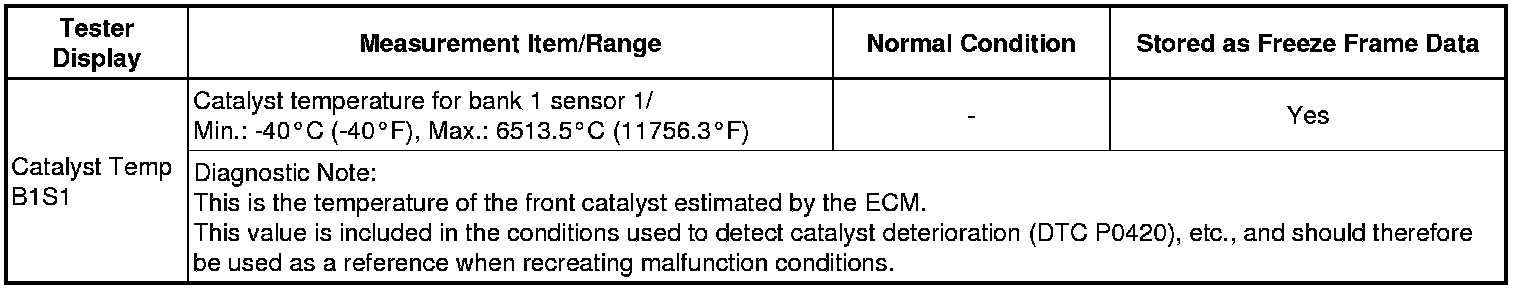

Catalyst Temp B1S1

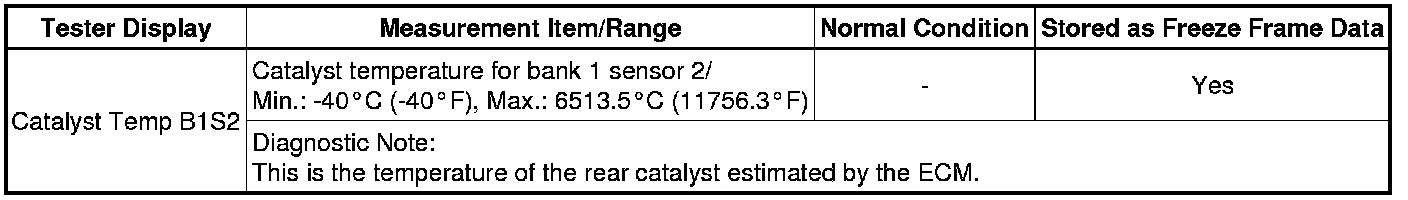

Catalyst Temp B1S2

15. Various Vehicle Conditions 3 (All Data)

Closed Throttle Position SW

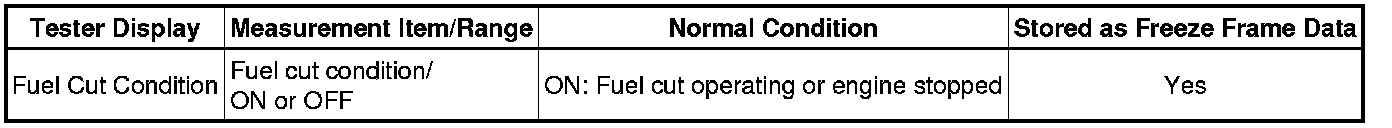

Fuel Cut Condition

16. Check Mode (Check Mode)

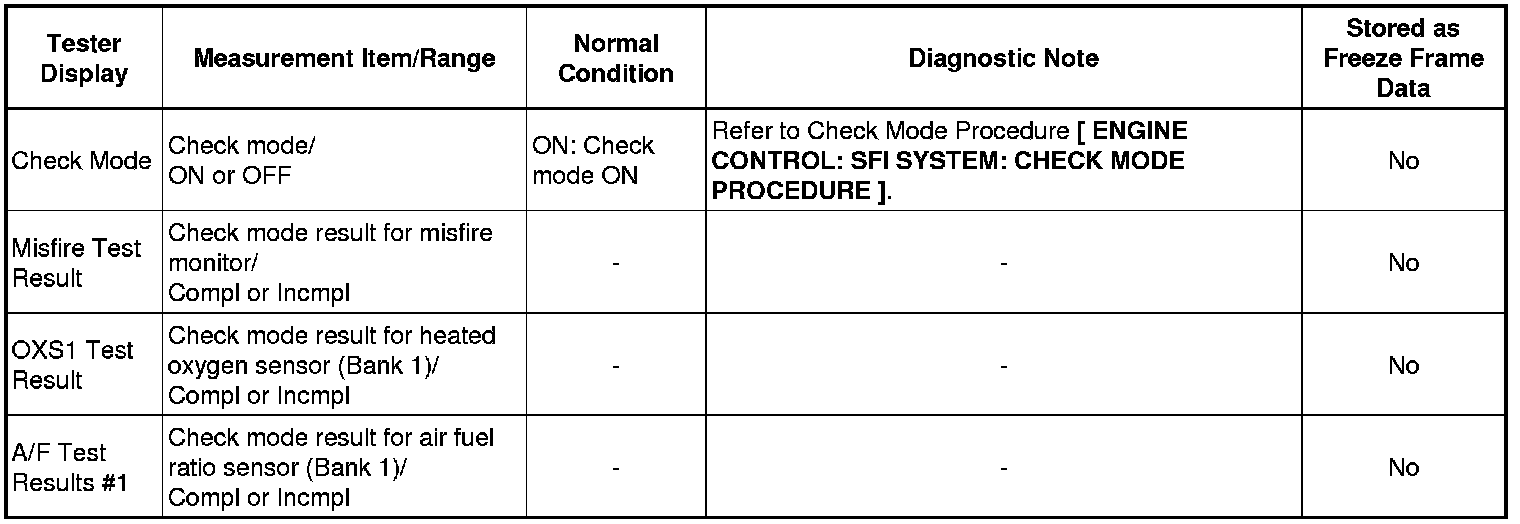

Check Mode

17. Test Result (Monitor Status)

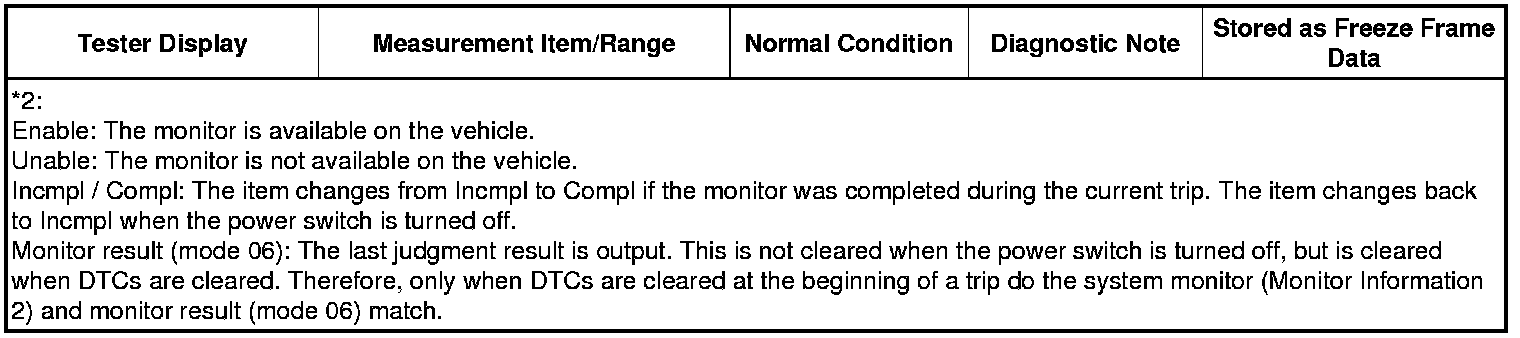

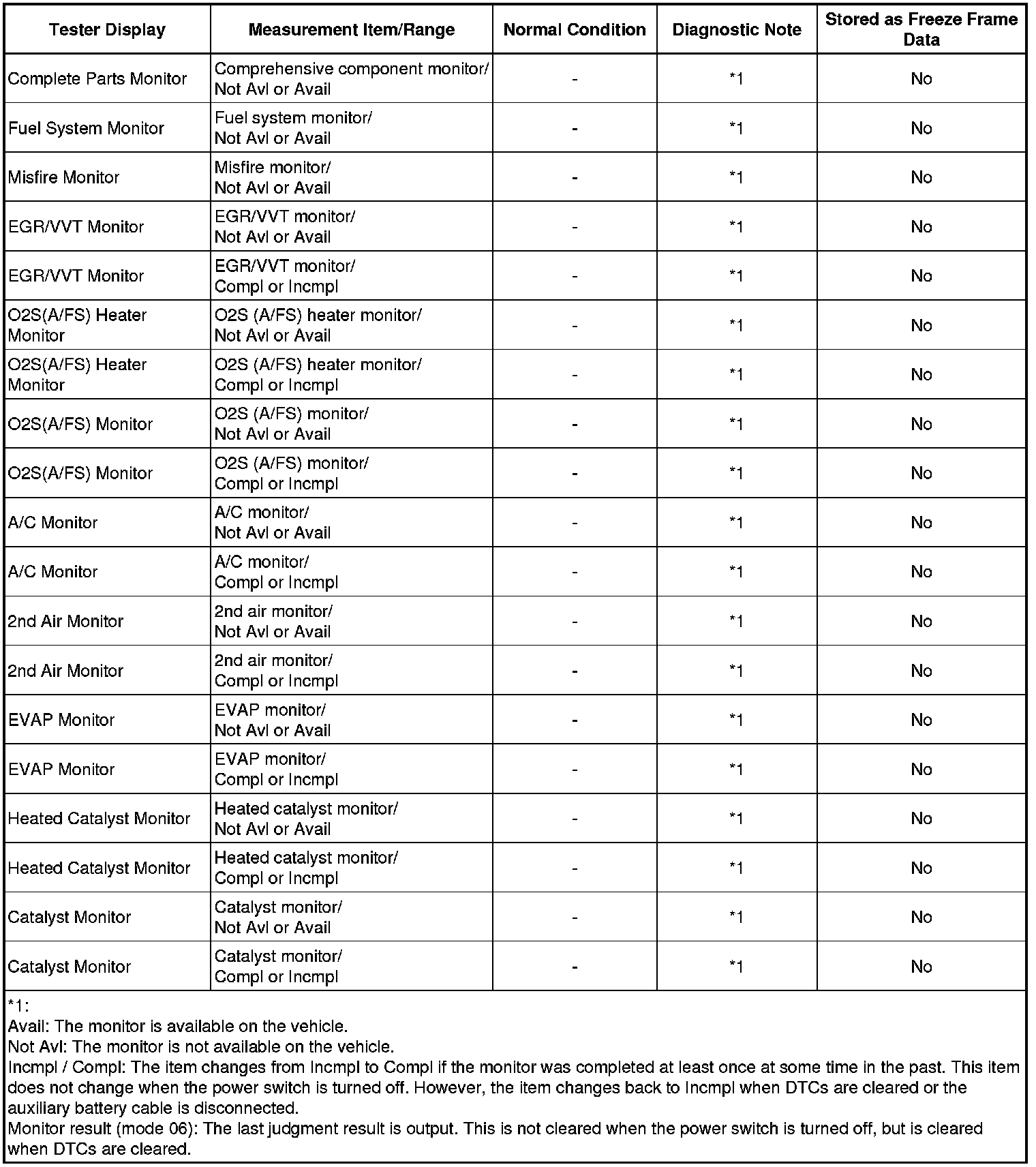

Monitor Information 1

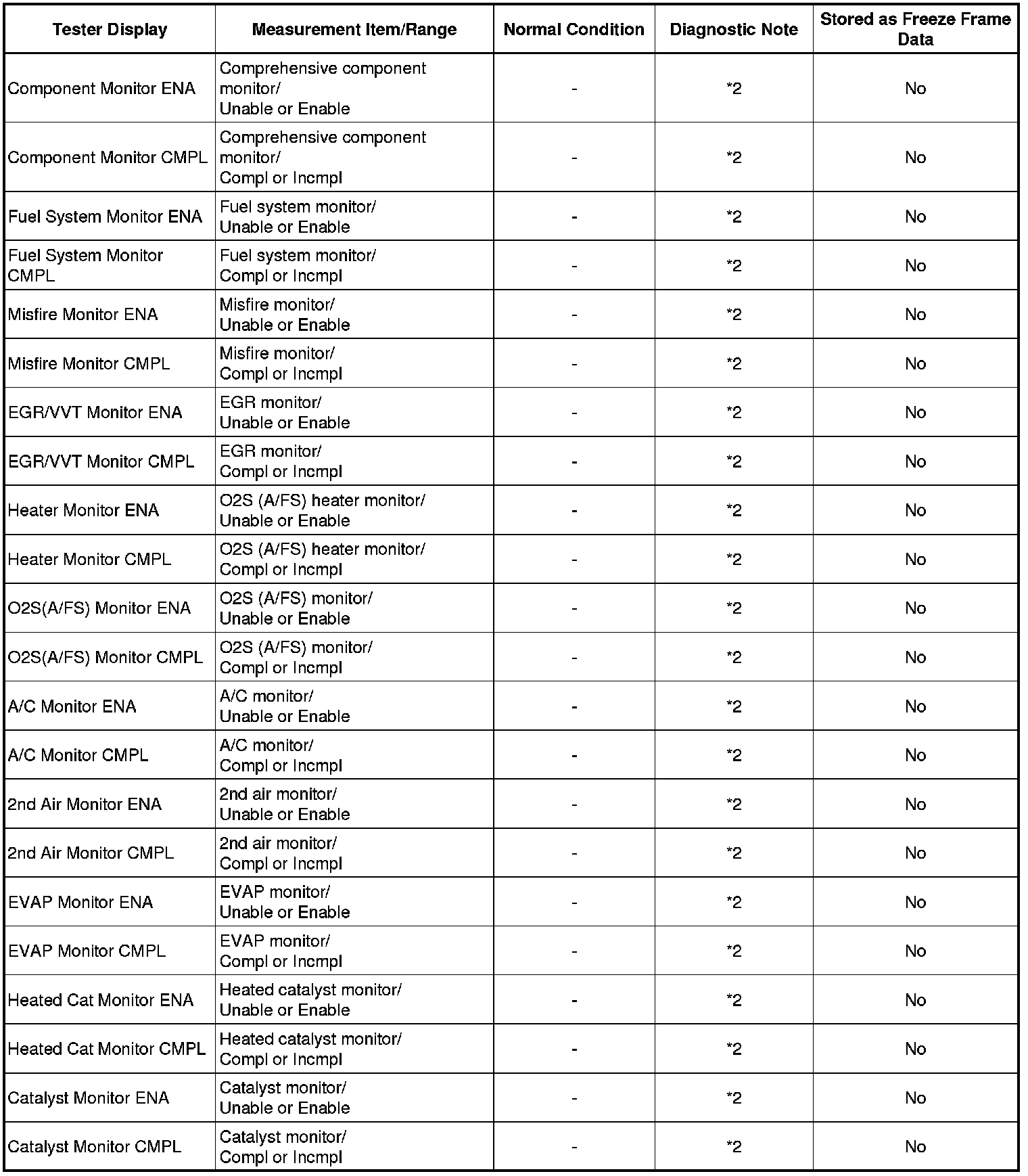

Monitor Information 2

18. Various Vehicle Conditions 4 (All Data)

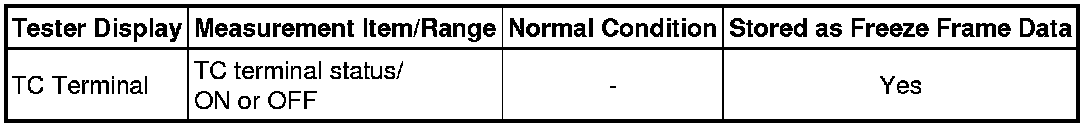

TC Terminal

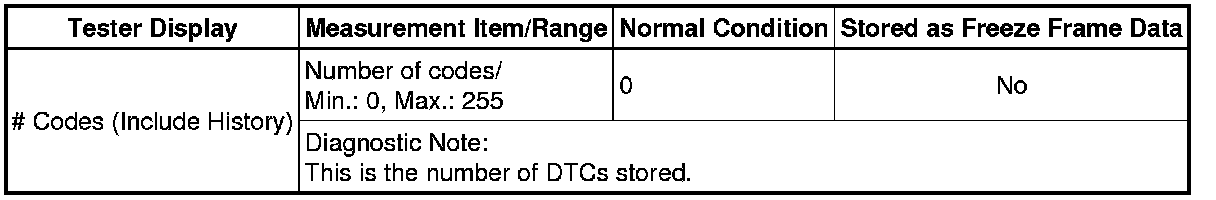

# Codes (Include History)

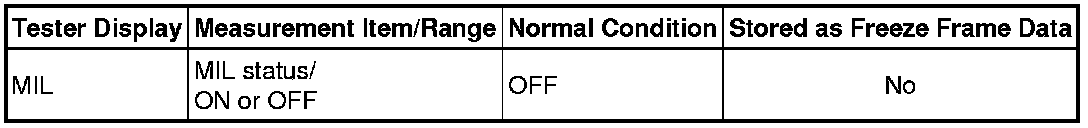

MIL

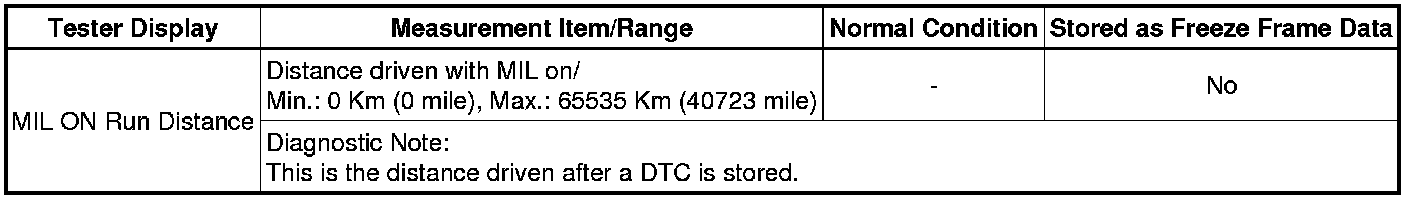

MIL ON Run Distance

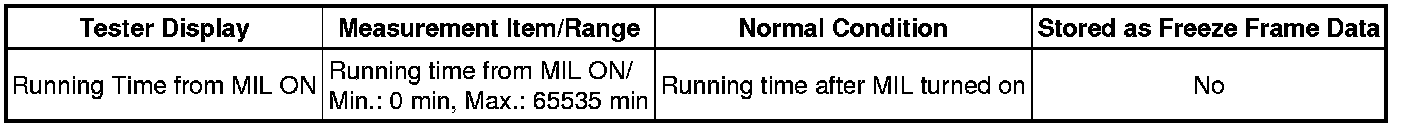

Running Time from MIL ON

Time after DTC Cleared

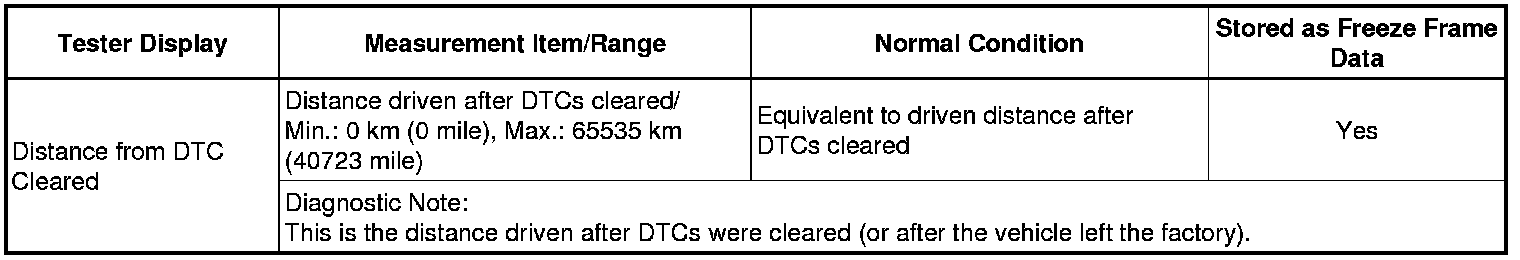

Distance from DTC Cleared

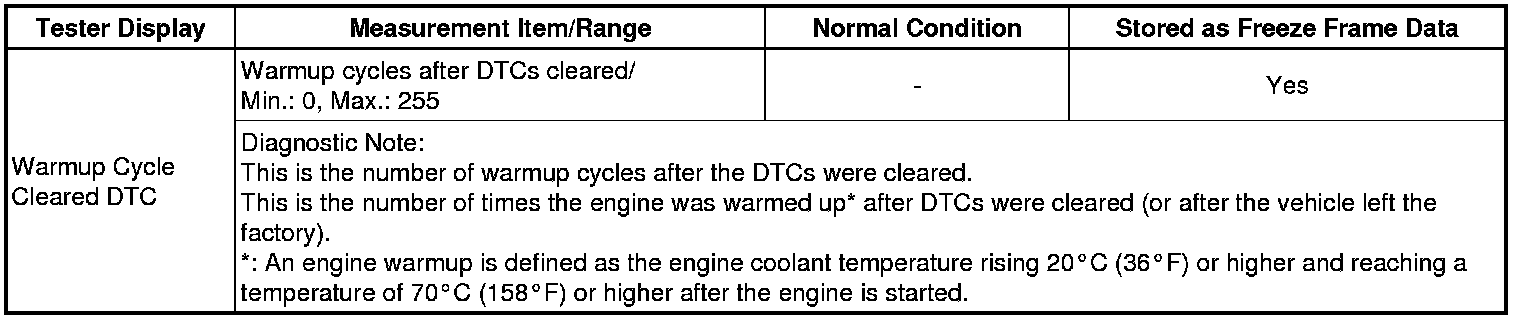

Warmup Cycle Cleared DTC

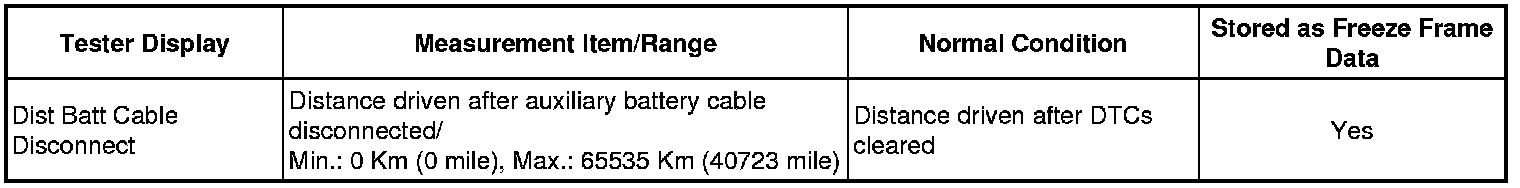

Dist Batt Cable Disconnect

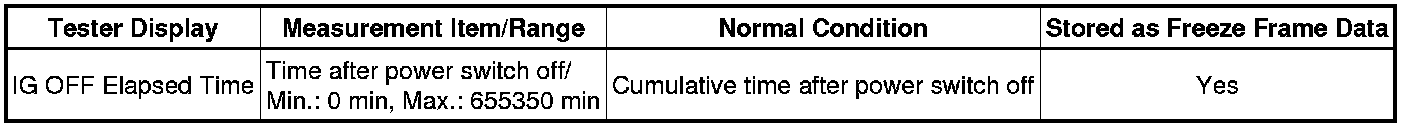

IG OFF Elapsed Time

OBD Requirements

Number of Emission DTC

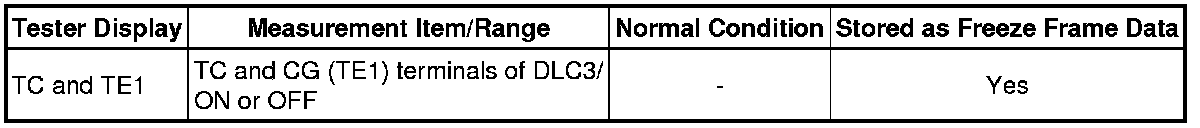

TC and TE1

19. Misfire (Gas Misfire)

Ignition Trig. Count

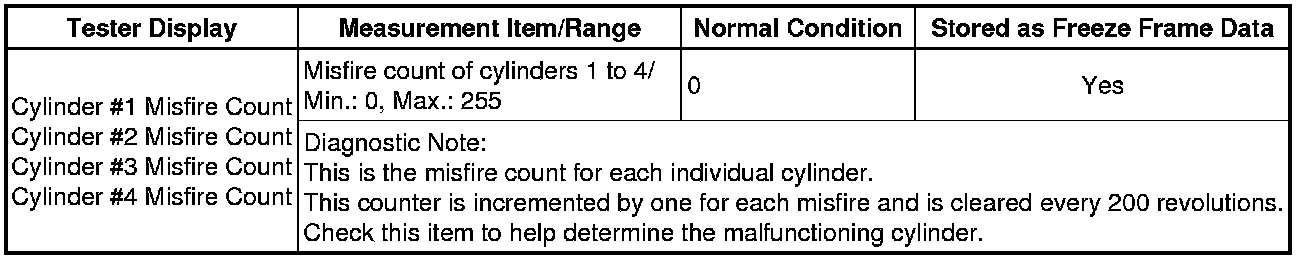

Cylinder #1 Misfire Count to Cylinder #4 Misfire Count

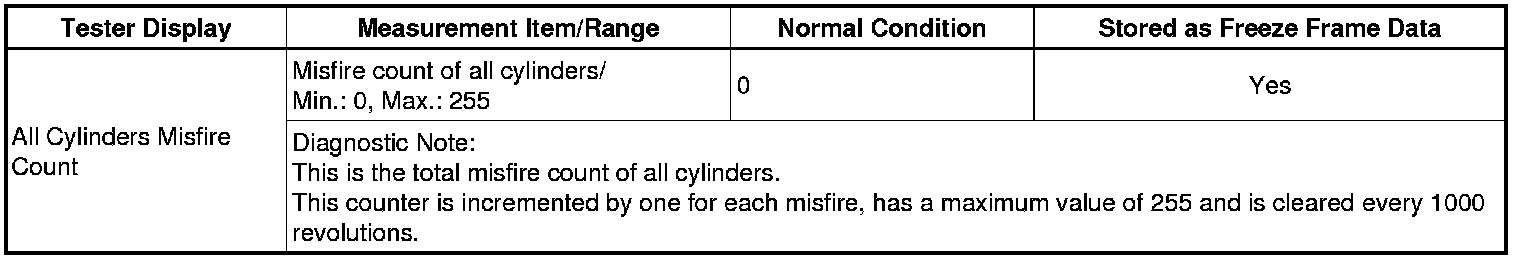

All Cylinders Misfire Count

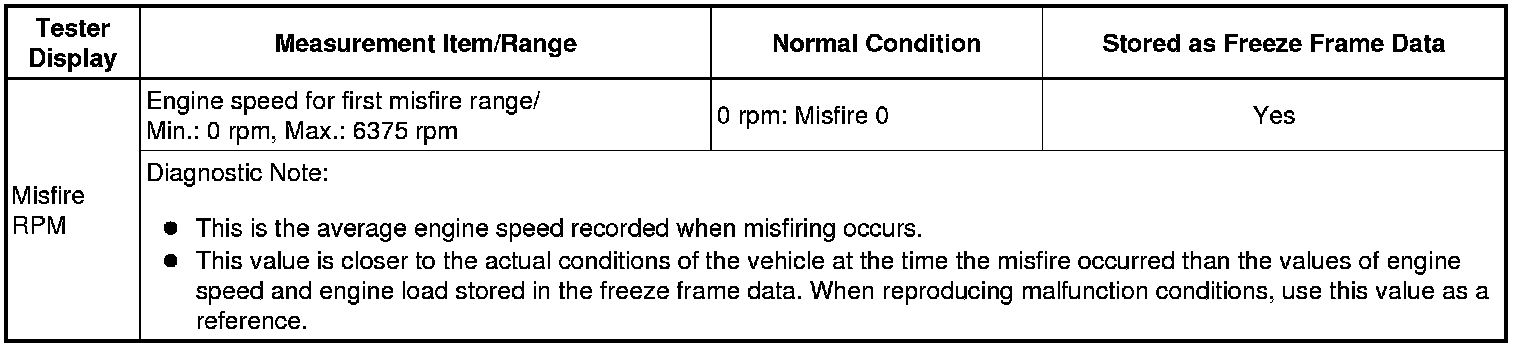

Misfire RPM

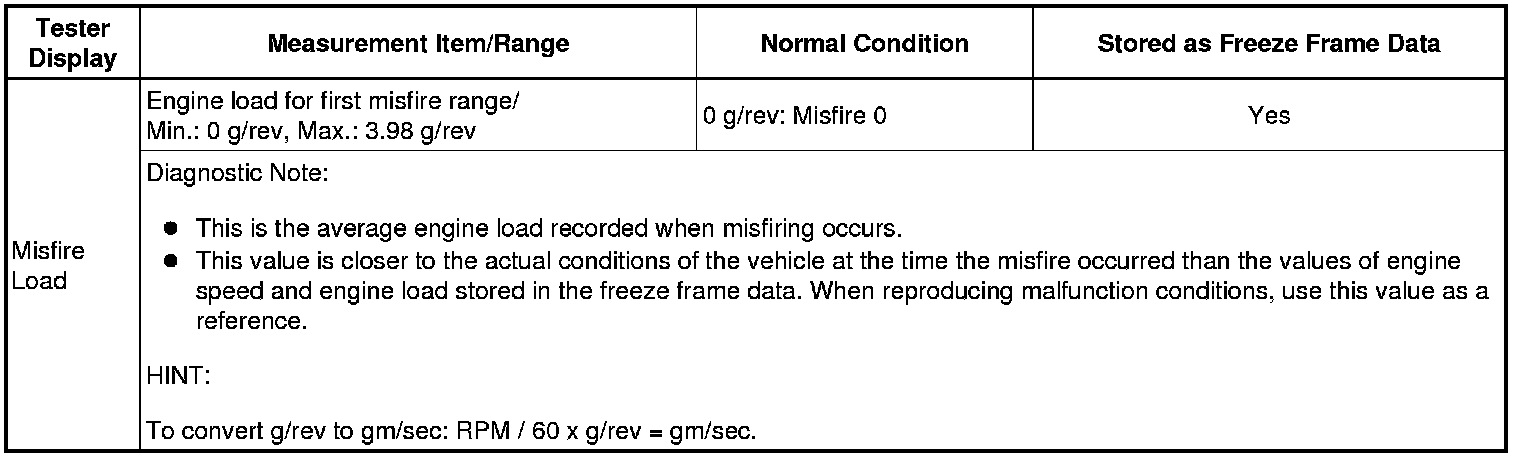

Misfire Load

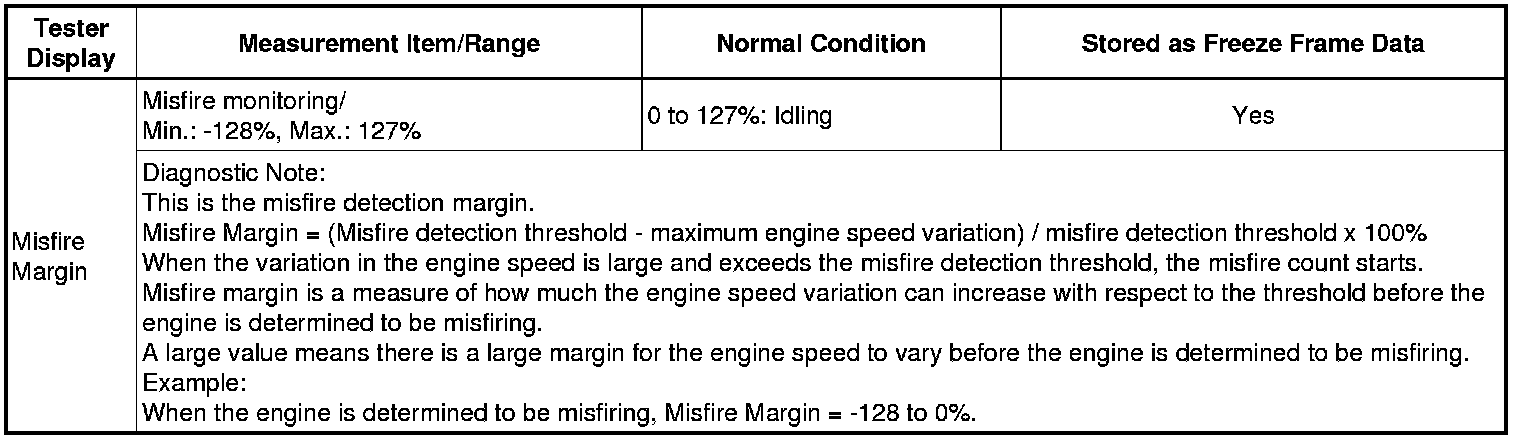

Misfire Margin

20. Various Vehicle Conditions 5 (All Data)

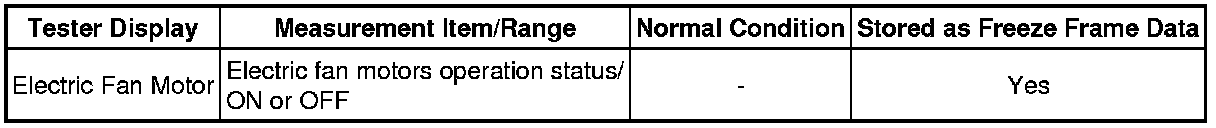

Electric Fan Motor

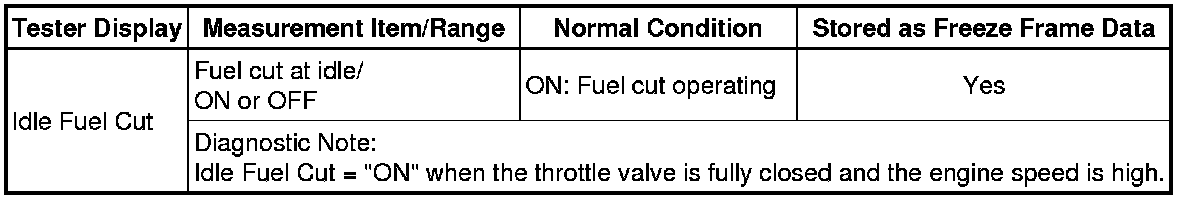

Idle Fuel Cut

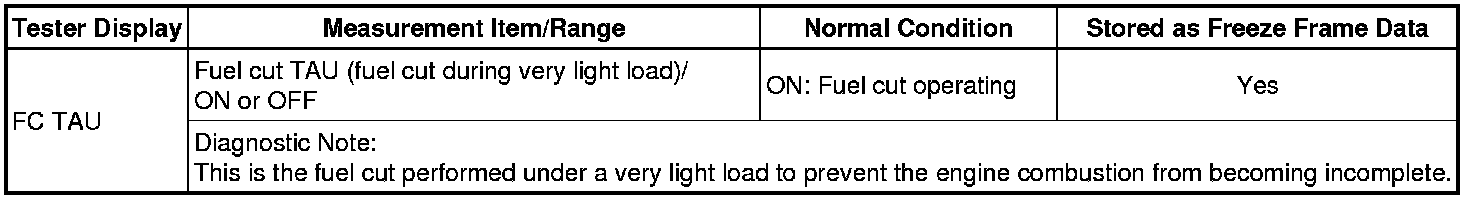

FC TAU

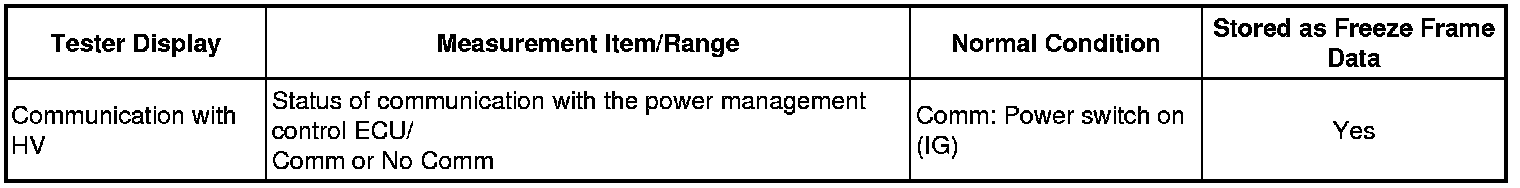

Communication with HV

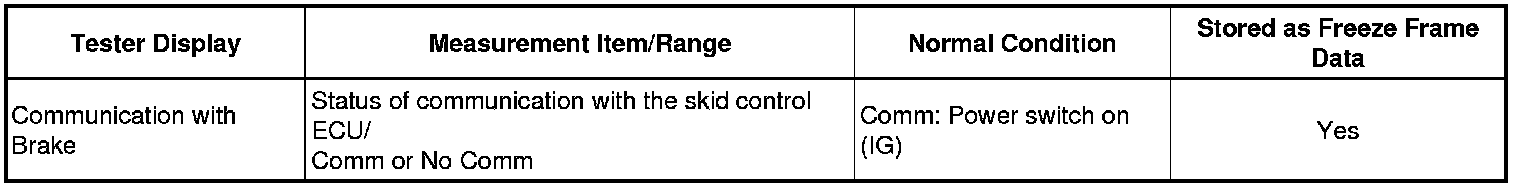

Communication with Brake
