Pattern Select Switch

METER / GAUGE / DISPLAY: PATTERN SELECT SWITCH: INSPECTION

1. INSPECT PATTERN SELECT SWITCH ASSEMBLY

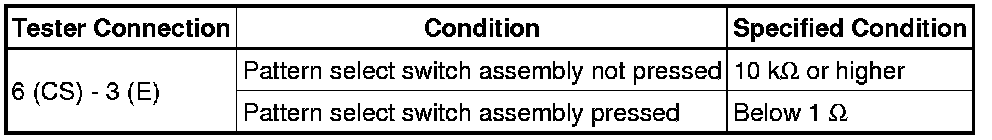

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





(b) Apply auxiliary battery voltage from the wire harness back side between the terminals of the switch, and check the lighting condition of the pattern select switch assembly.

OK:

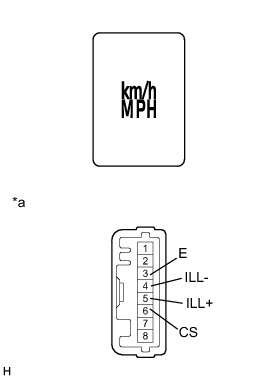

Text in Illustration





If the result is not as specified, replace the pattern select switch assembly.
