Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

Install the timing chain cover sub-assembly with the 25 bolts and a new gasket as shown in the illustration.






Text in Illustration






Bolt A, E, F - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)

Bolt B, C - Torque 51 Nm (520 kgf-cm, 38 ft-lbf)

Bolt D - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

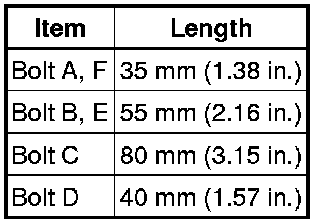

Bolt Length:






Using a 8mm deep socket wrench, install the stud bolt from the engine mounting bracket RH.






Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
