Home >> Toyota >> 2012 >> Prius PHV L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Keyless Starting System >> Locations

Keyless Starting System: Locations

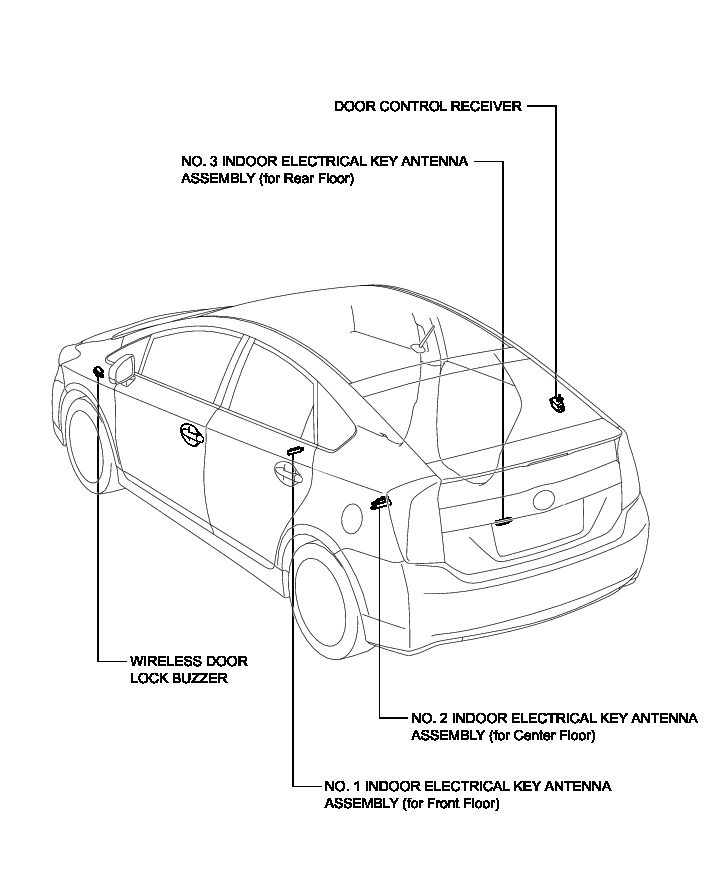

THEFT DETERRENT / KEYLESS ENTRY: PUSH-BUTTON START: PARTS LOCATION
