Programming and Relearning

THEFT DETERRENT / KEYLESS ENTRY: PUSH-BUTTON START: CUSTOMIZE PARAMETERS

1. CUSTOMIZE PUSH BUTTON START

HINT
The items in the table below can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current setting before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3.

(2) Turn the power switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting.

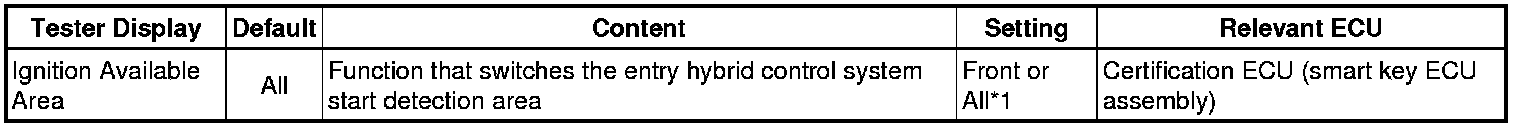

(5) Select the setting by referring to the table below.

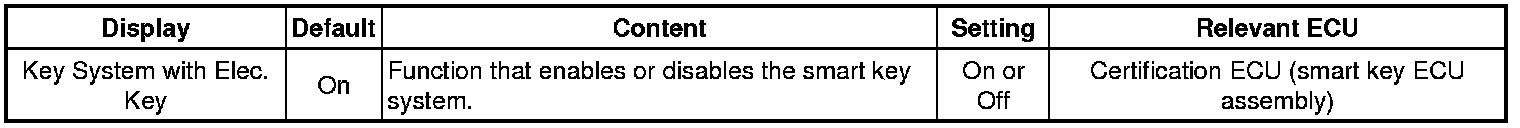

Smart Key / Access

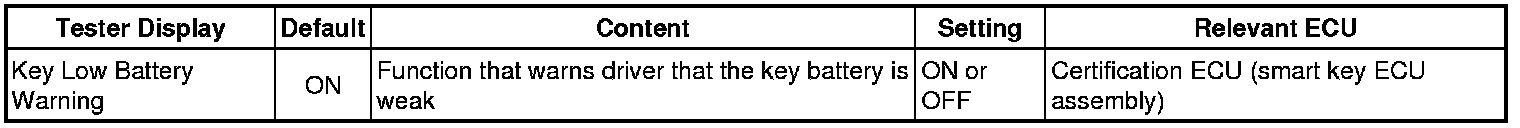

Warning





(b) Customizing with the multi-display (for Navigation Receiver Type)

(1) Turn the power switch on (IG).

(2) Enter the following menus: SETUP / Vehicle / Vehicle Customization / Door Lock Setting.

(3) Select the setting by referring to the table below.





(c) Customizing with the multi-display ( for Radio and Display Type)

(1) Turn the power switch on (IG).

(2) Enter the following menus: SETUP / Vehicle.

(3) Select the setting by referring to the table below.





(d) Entry cancel function (manual operation).

The electrical key cancel operation disables the following functions:

* Push Button Start

* Warning

(1) The operation procedure is as follows:

Precondition:

Power switch off, driver door closed and unlocked.

1 Push the unlock switch of the key once.

2 Open the driver door within 5 seconds.

3 Push the unlock switch of the key twice within 5 seconds.

4 Close and open the driver door twice within 30 seconds.

(Driver door: Close -> Open -> Close -> Open)

5 Push the unlock switch of the key twice within 5 seconds.

6 Close and open the driver door within 30 seconds.

(Driver door: Close -> Open)

7 Close the driver door within 5 seconds.

When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform the procedure again. When the original condition is returned, the wireless door lock buzzer sounds once.
