Freeze Frame Data





P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: FREEZE FRAME DATA

1. CHECK FREEZE FRAME DATA

HINT
The transmission control ECU assembly records vehicle and driving condition information as freeze frame data the moment a DTC is stored. Freeze frame data can help determine the vehicle conditions when the malfunction occurred and help duplicate conditions when troubleshooting.

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(e) Select a DTC in order to display its freeze frame data.

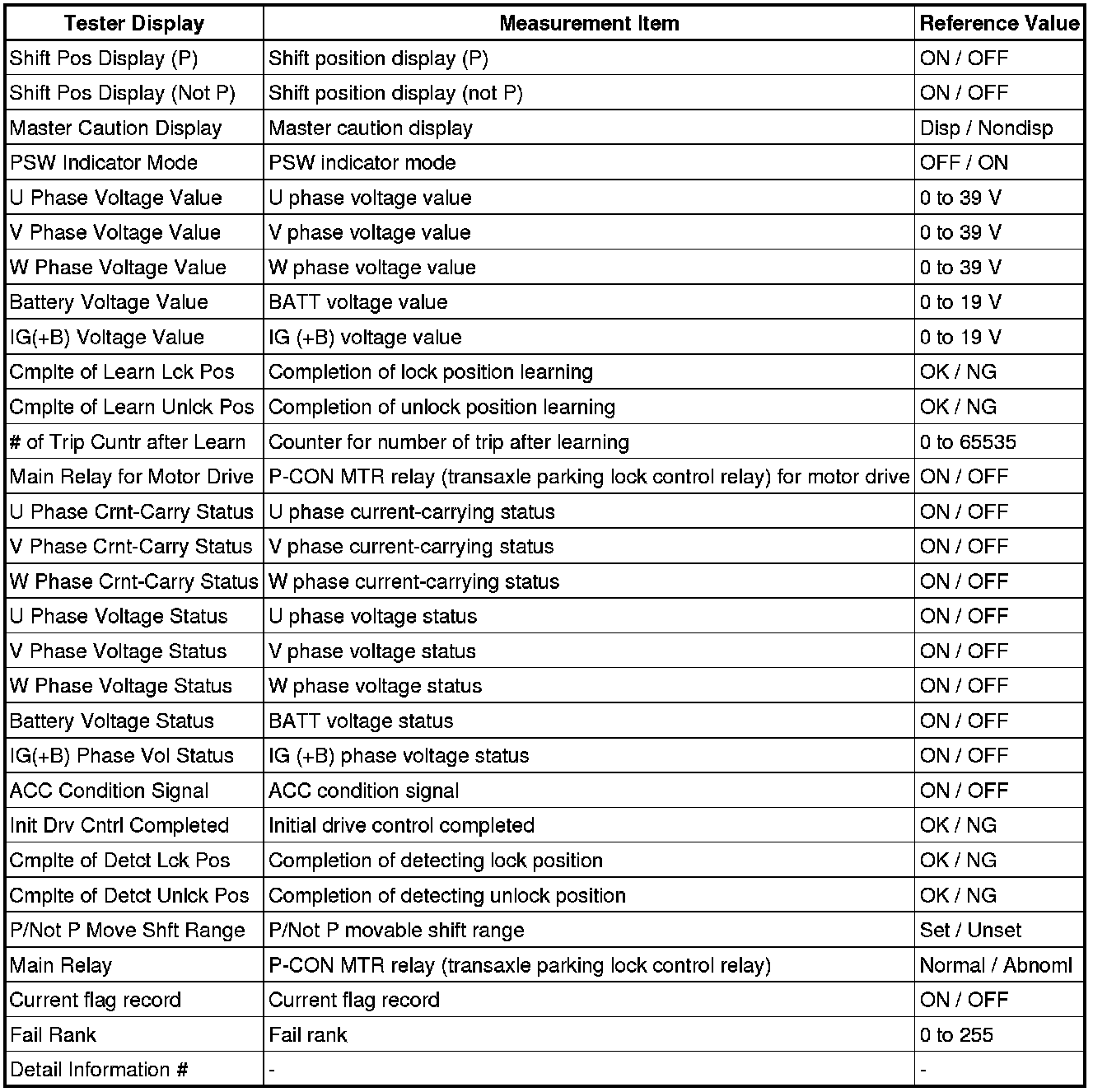

2. LIST OF FREEZE FRAME DATA
