Removal

NAVIGATION: NAVIGATION ANTENNA: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

3. REMOVE COMBINATION METER ASSEMBLY Removal

4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

5. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

6. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET Removal

7. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY Removal

8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

9. REMOVE FRONT PILLAR GARNISH LH Removal

10. REMOVE FRONT PILLAR GARNISH RH Removal

11. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal

12. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT Disassembly

13. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT Disassembly

14. REMOVE NO. 1 HEATER TO REGISTER DUCT Disassembly

15. REMOVE NO. 2 HEATER TO REGISTER DUCT Disassembly

16. REMOVE NO. 3 HEATER TO REGISTER DUCT Disassembly

17. REMOVE NAVIGATION ANTENNA ASSEMBLY

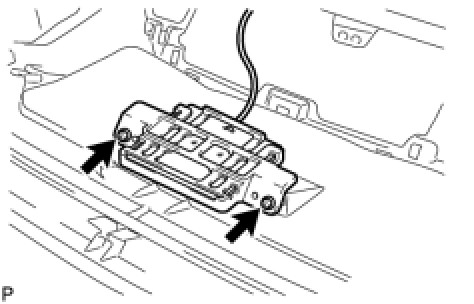

(a) Remove the 2 screws and navigation antenna.
