Canada - Navigation System Improper Operation

T-TCI-3724R1

March 29, 2012

ABNORMAL NAVIGATION OPERATION FOR DISPLAY AUDIO (NON-HDD TYPE)

Category Service
Audio/Visual/Telematics

Section
Navigation/Multi Info Display

Market
Canada

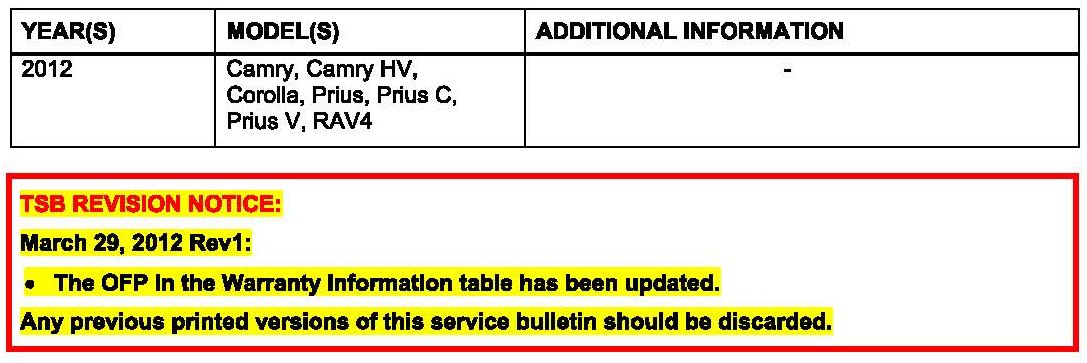

APPLICABILITY:

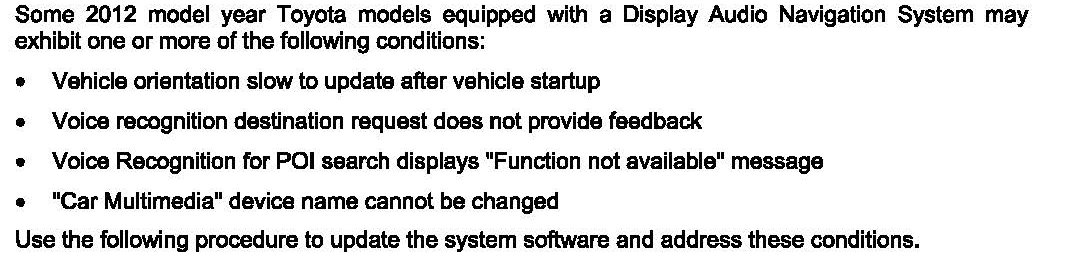

INTRODUCTION:

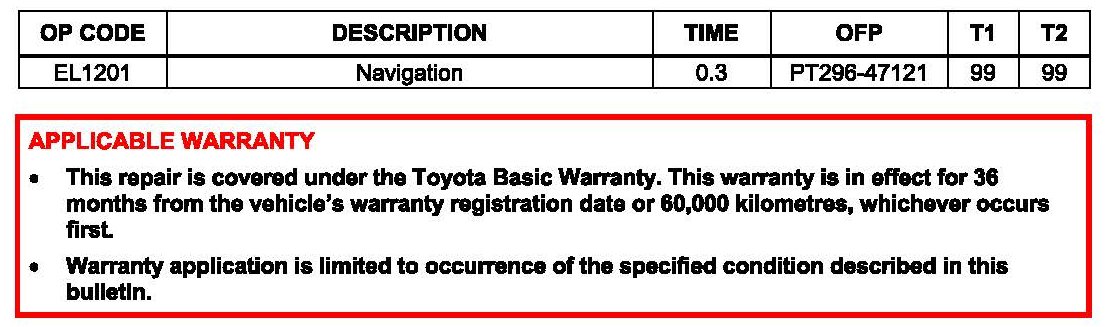

WARRANTY INFORMATION:





REQUIRED TOOLS & EQUIPMENT:

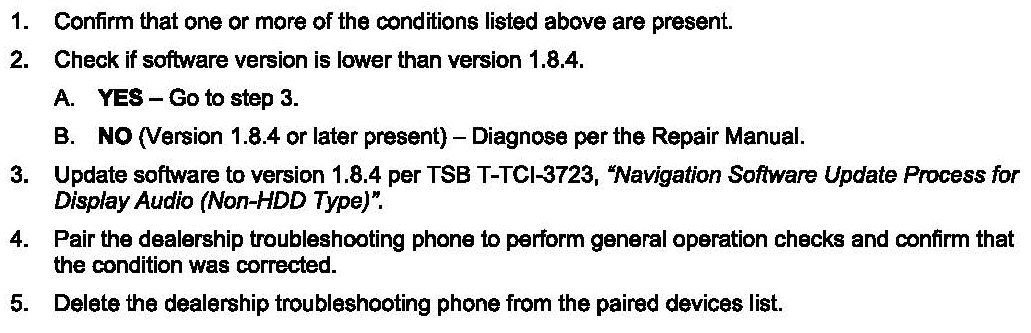

REPAIR PROCEDURE:

NOTE:
Issue of the Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.

© 2012 Toyota Motor Sales, Canada
