Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

CAUTION:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE STEERING PAD ASSEMBLY Removal

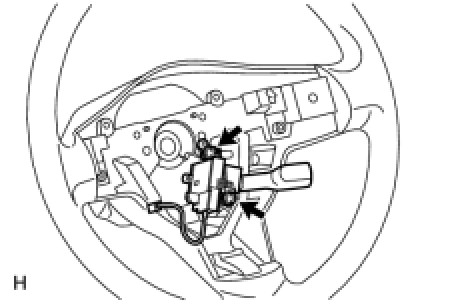

4. REMOVE CRUISE CONTROL MAIN SWITCH





(a) Disconnect the connector.

(b) Remove the 2 screws and switch.
