Installation

2AR-FE ENGINE MECHANICAL: ENGINE UNIT: INSTALLATION

1. INSTALL IGNITION COIL ASSEMBLY Installation

2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY Installation

3. INSTALL ENGINE COOLANT TEMPERATURE SENSOR Installation

4. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY Installation

5. INSTALL INTAKE MANIFOLD Installation

6. CONNECT NO. 2 VENTILATION HOSE Installation

7. INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) Installation

8. CONNECT WIRE HARNESS Installation

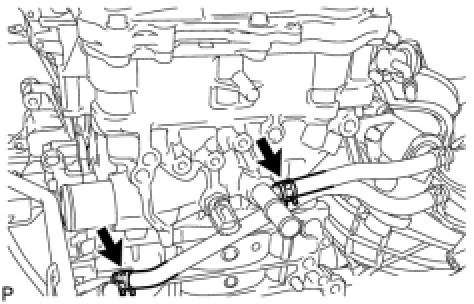

9. INSTALL WATER BY-PASS HOSE

(a) Install the No. 1 and No. 2 water by-pass hoses.





10. INSTALL THROTTLE BODY ASSEMBLY Installation

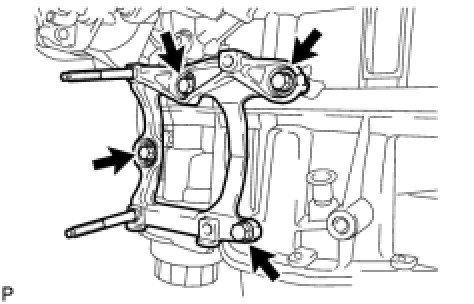

11. INSTALL NO. 1 COMPRESSOR MOUNTING BRACKET

(a) Install the bracket with the 4 bolts.





Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

12. INSTALL COOLER COMPRESSOR ASSEMBLY Installation

13. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY Installation

14. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR Installation

15. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR Installation

16. INSTALL NO. 2 MANIFOLD STAY Installation

17. INSTALL MANIFOLD STAY Installation

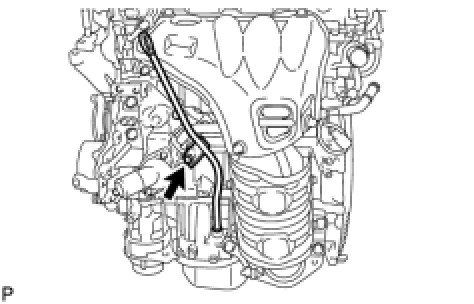

18. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

(a) Apply a light coat of engine oil to a new O-ring.





(b) Install the O-ring to the dipstick guide.

(c) Install the dipstick guide with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(d) Install the engine oil dipstick.
