Locations
>>
Connector Locations
Connector Locations

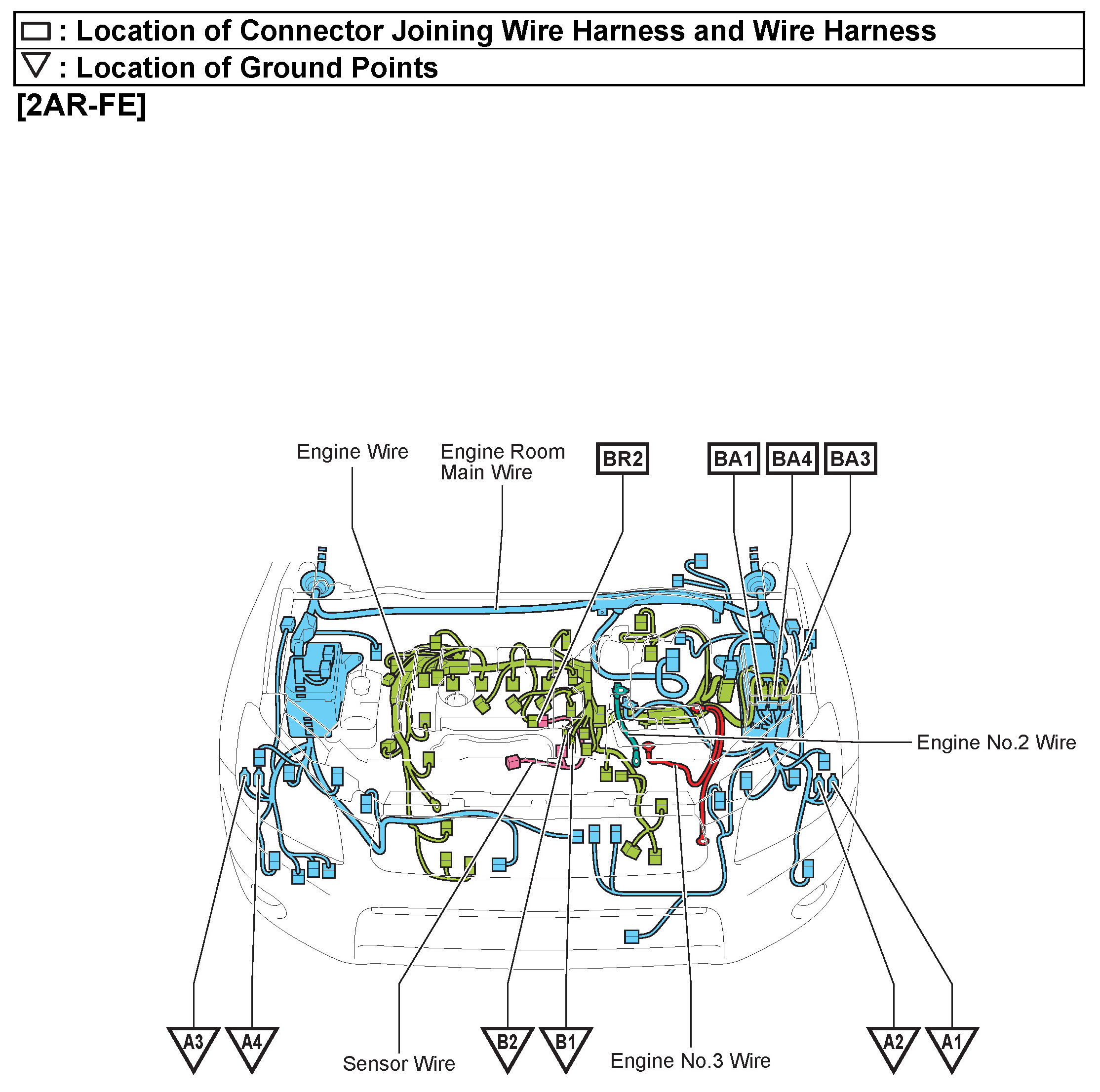

65 - A1-B2, BA1-BR2:

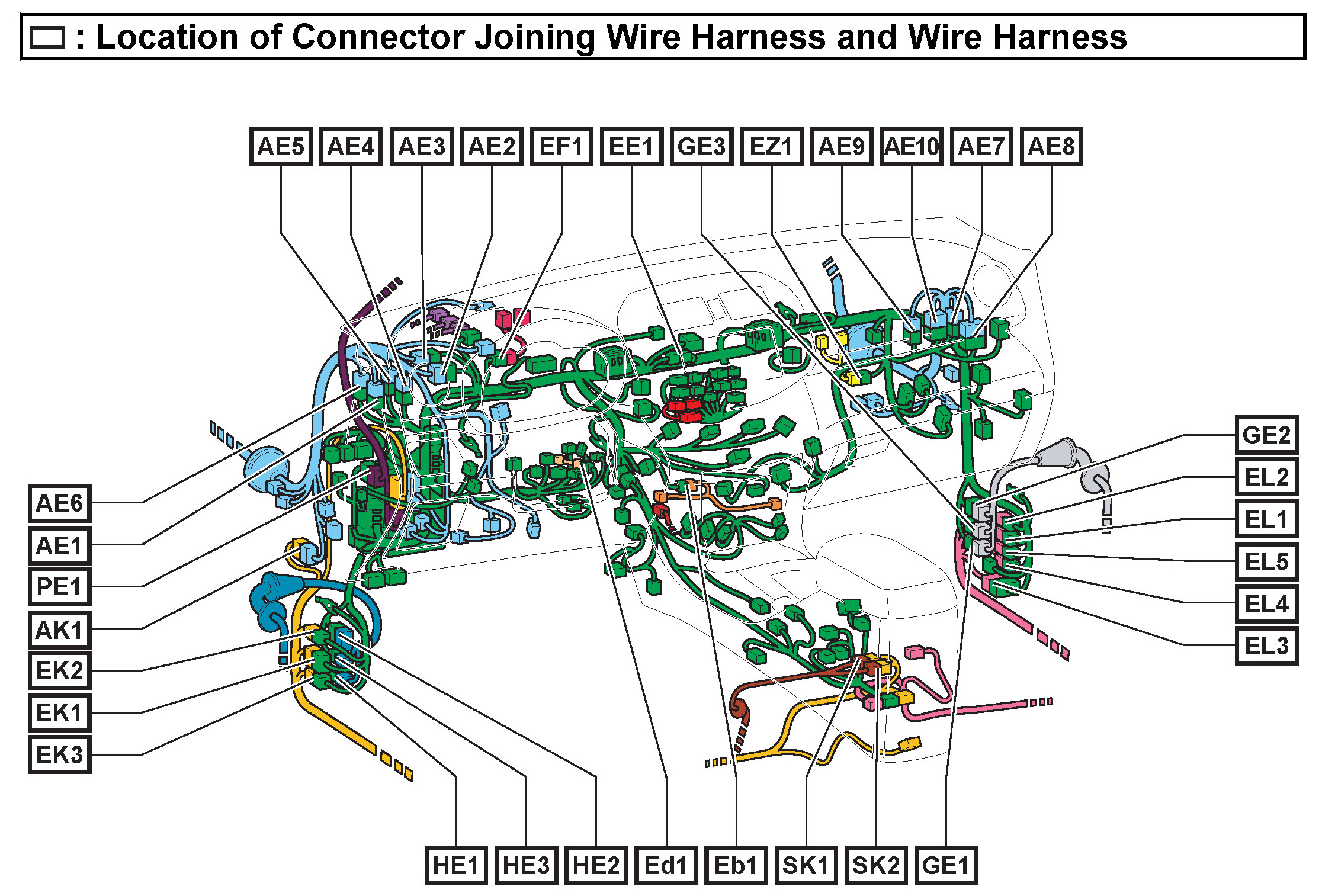

66 - AE1-SK2:

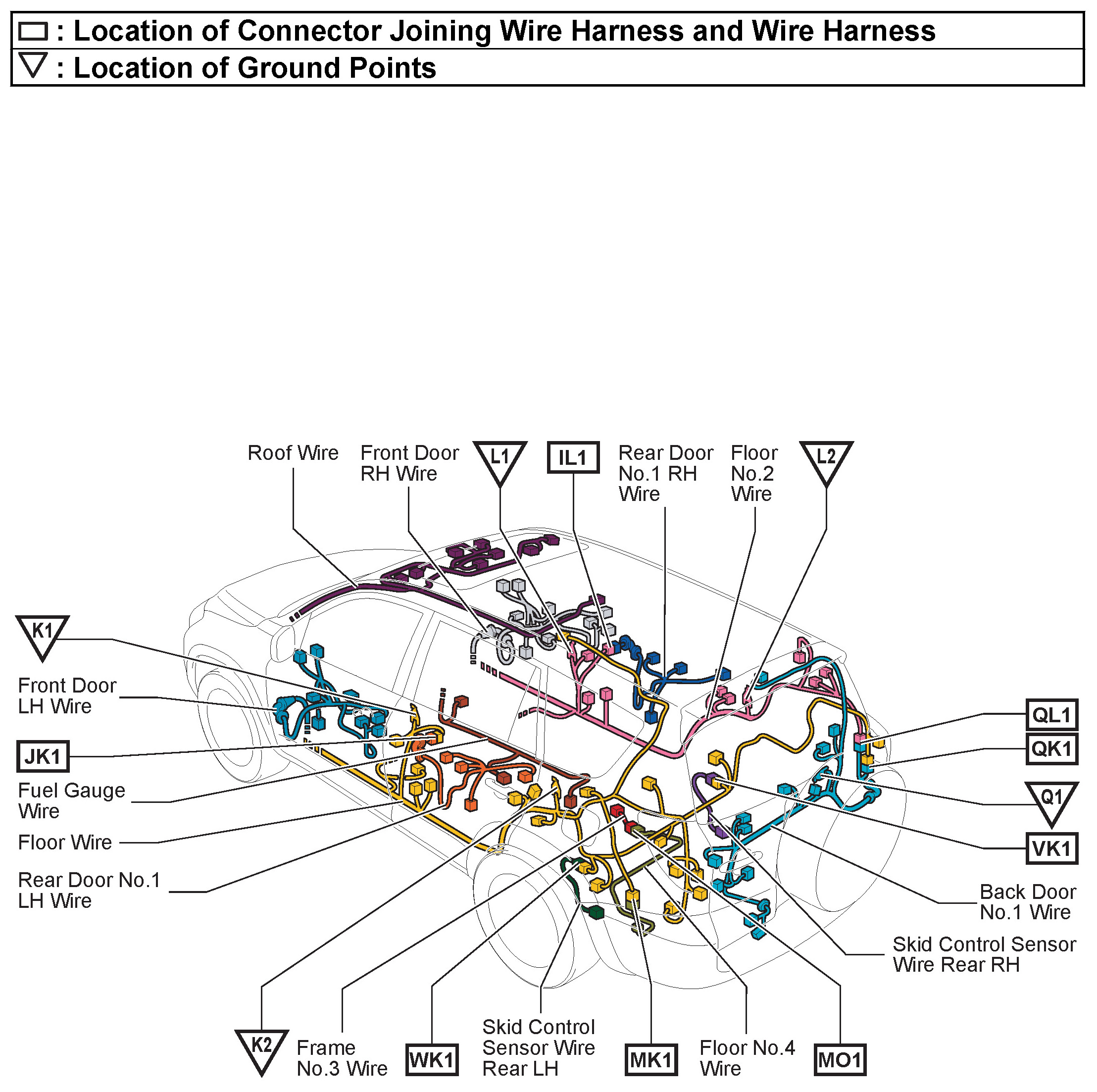

67 - K1-Q1, IL1-VK1:

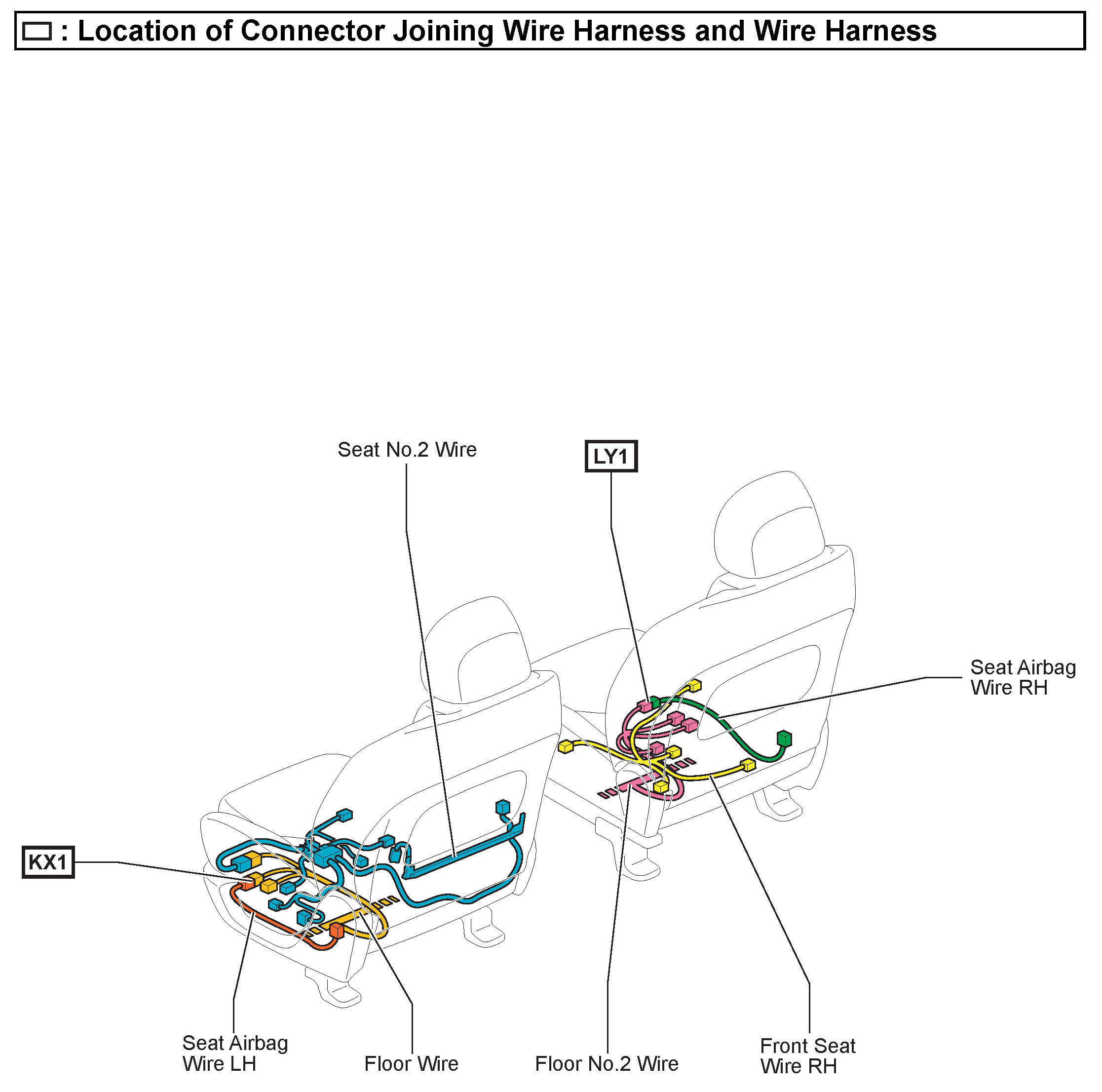

68 - KX1-LY1:
