Locations
>>

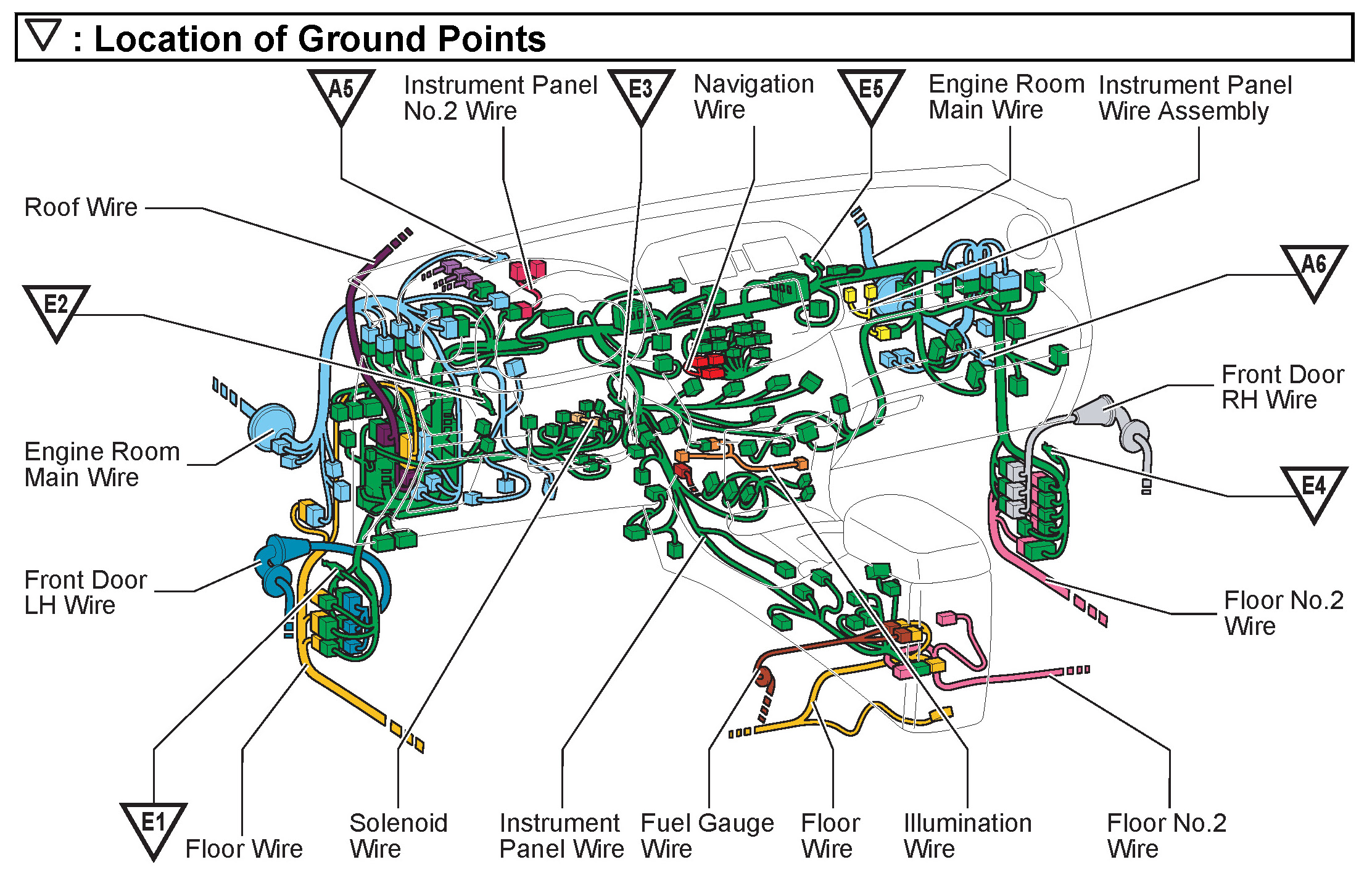

Ground Locations
Ground Locations
65 - A1-B2, BA1-BR2:
66 - A5-E5:
67 - K1-Q1, IL1-VK1:
