2AR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION

1. INSTALL FAN & GENERATOR V BELT

(a) Set the V belt onto each part as shown in the illustration except the water pump pulley.





(b) Loosen the V belt by turning the belt tensioner clockwise.

(c) Set the V belt onto the water pump pulley.

NOTICE:
Make sure that the belt is attached to each pulley. In particular, make sure that the belt is securely fitted into the grooves of the crankshaft pulley.

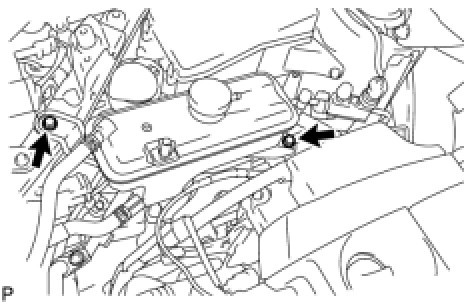

2. CONNECT RADIATOR RESERVOIR

(a) Connect the radiator reservoir with the 2 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

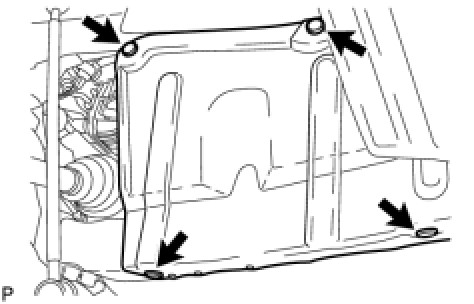

3. INSTALL REAR ENGINE UNDER COVER RH

(a) Install the under cover with the 4 clips.





4. INSTALL RADIATOR SUPPORT OPENING COVER

(a) Install the support opening cover with the 9 clips.
