Power Window Control System
Power Window Control System

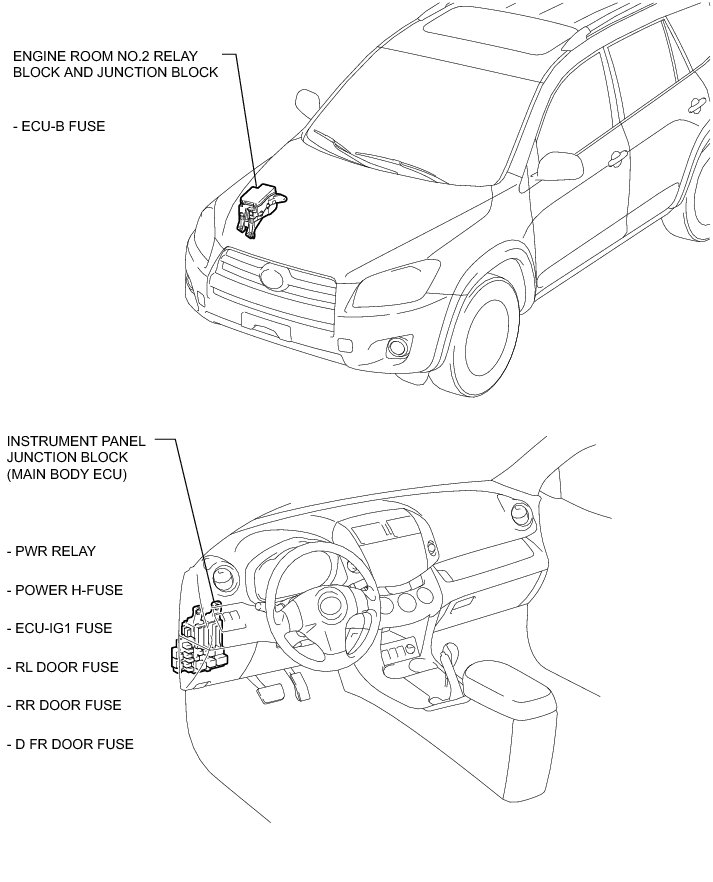

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: PARTS LOCATION
