Power Distribution Relay: Testing and Inspection
2AR-FE STARTING: ACC RELAY: ON-VEHICLE INSPECTION 1.

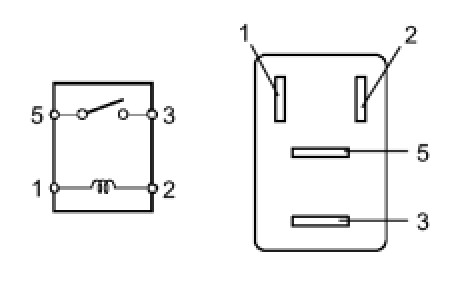

INSPECT ACC RELAY (ACC)
(a)

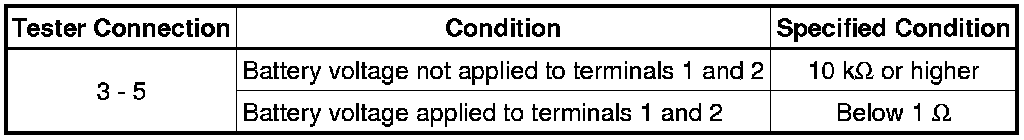

Measure the resistance according to the value(s) in the table below.
Standard Resistance: If the result is not as specified, replace the relay.
