Removal
2AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL 1.
DRAIN ENGINE COOLANT
Service and Repair 2.
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
(a)
Disconnect the sensor connector.
(b)

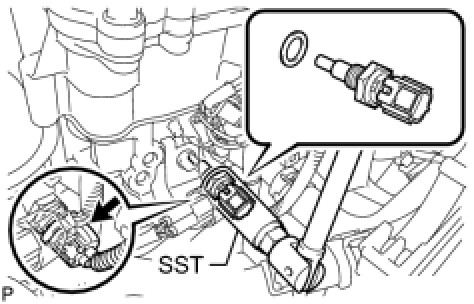

Using SST, remove the sensor and gasket.
SST : 09817-33190
