Removal

2AR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

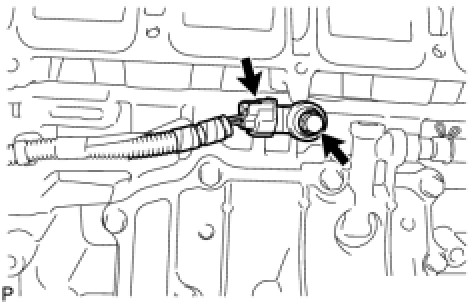

2. REMOVE KNOCK SENSOR

(a) Disconnect the sensor connector.

(b) Remove the bolt and sensor.
