System Diagram





U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

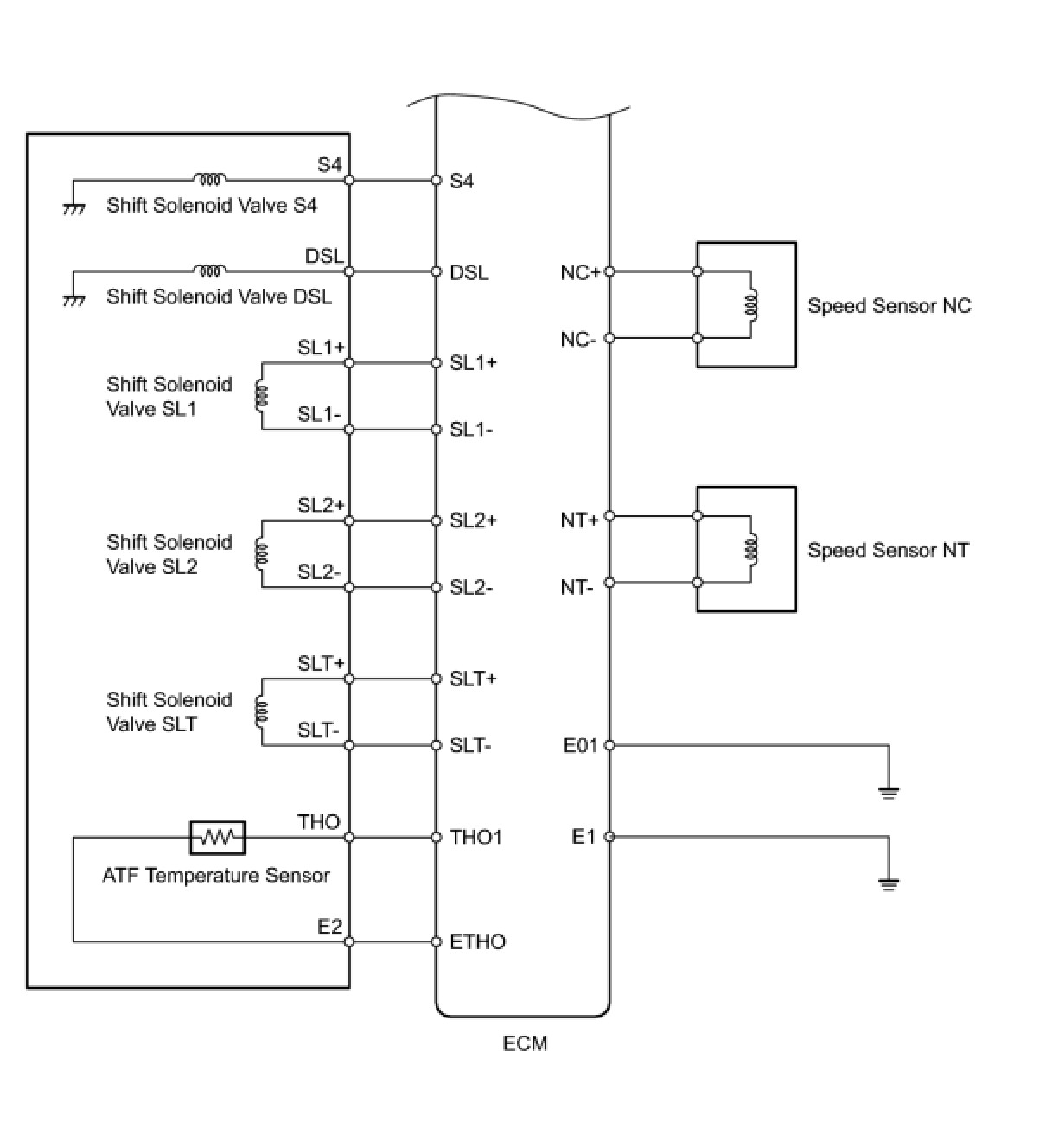

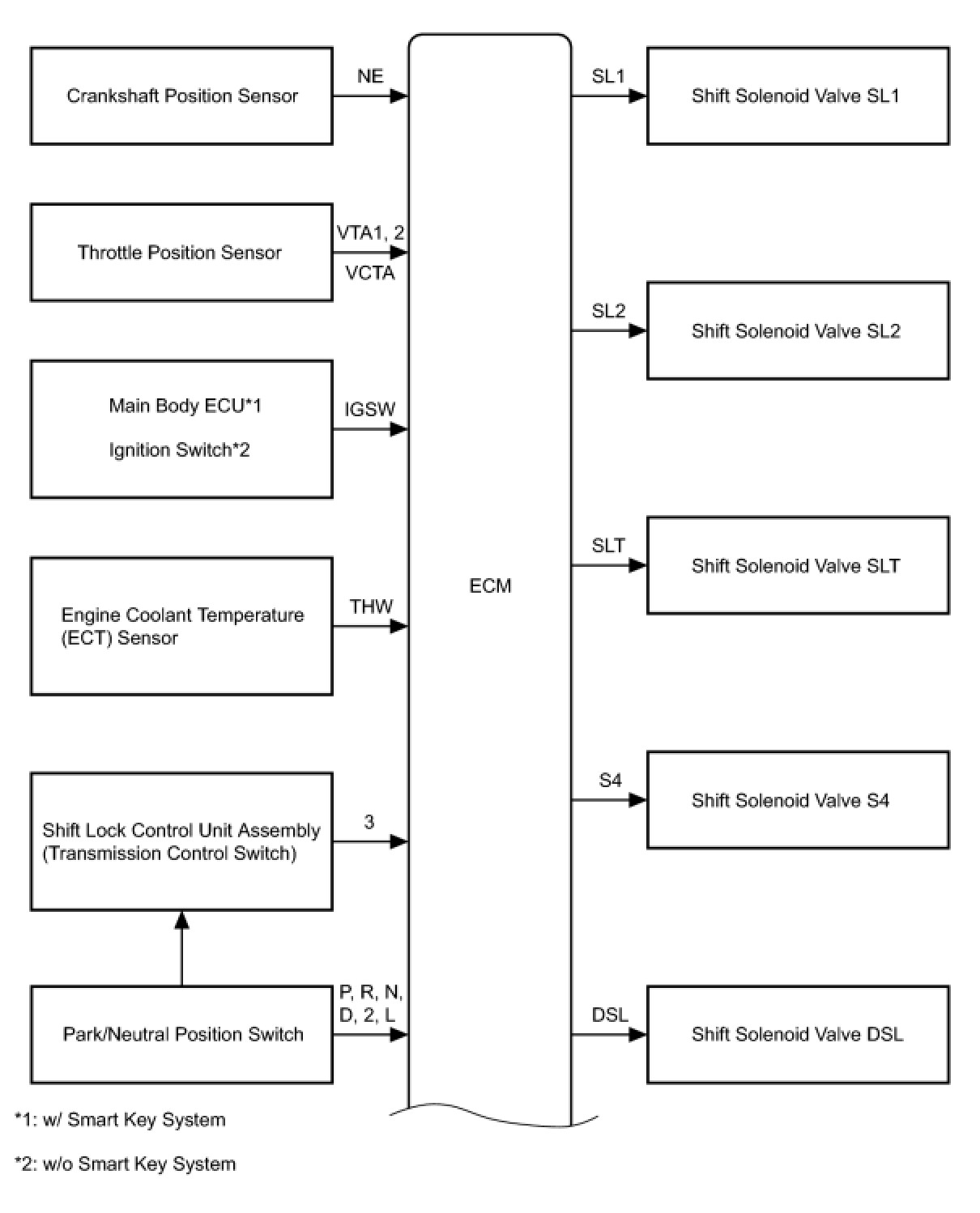

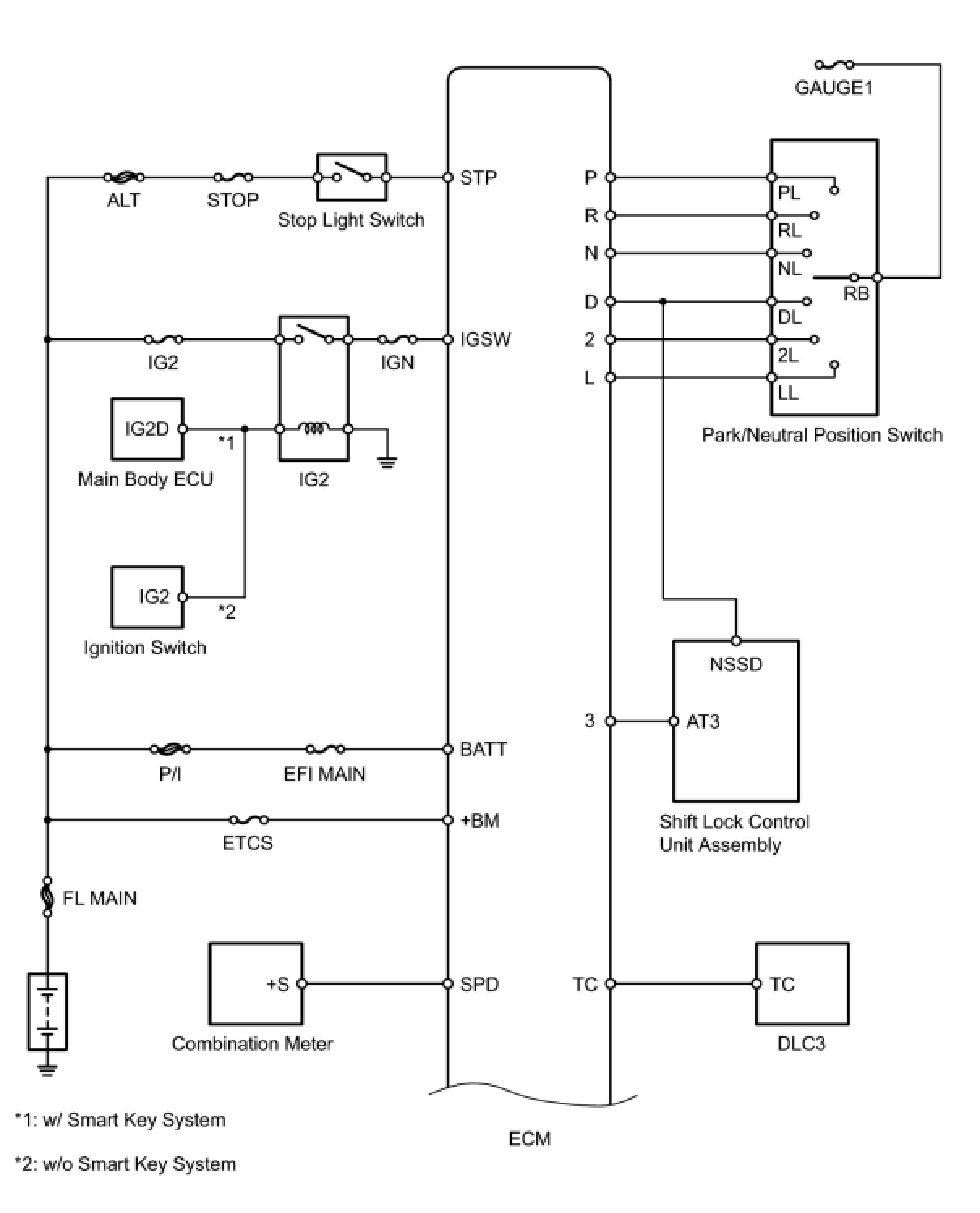

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following chart.
