Fluid Pan, A/T

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

Install the 3 magnets in the oil pan.

Install a new oil pan gasket to the oil pan.

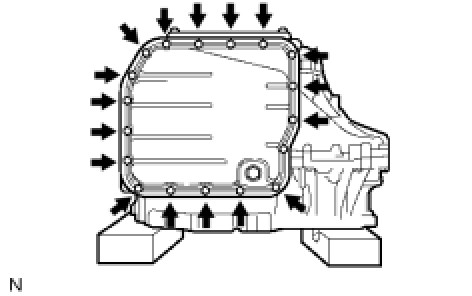

Install the oil pan to the transaxle with the 18 bolts.

Torque 7.6 Nm (77 kgf-cm, 67 in-lbf)
