Service Data

SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA

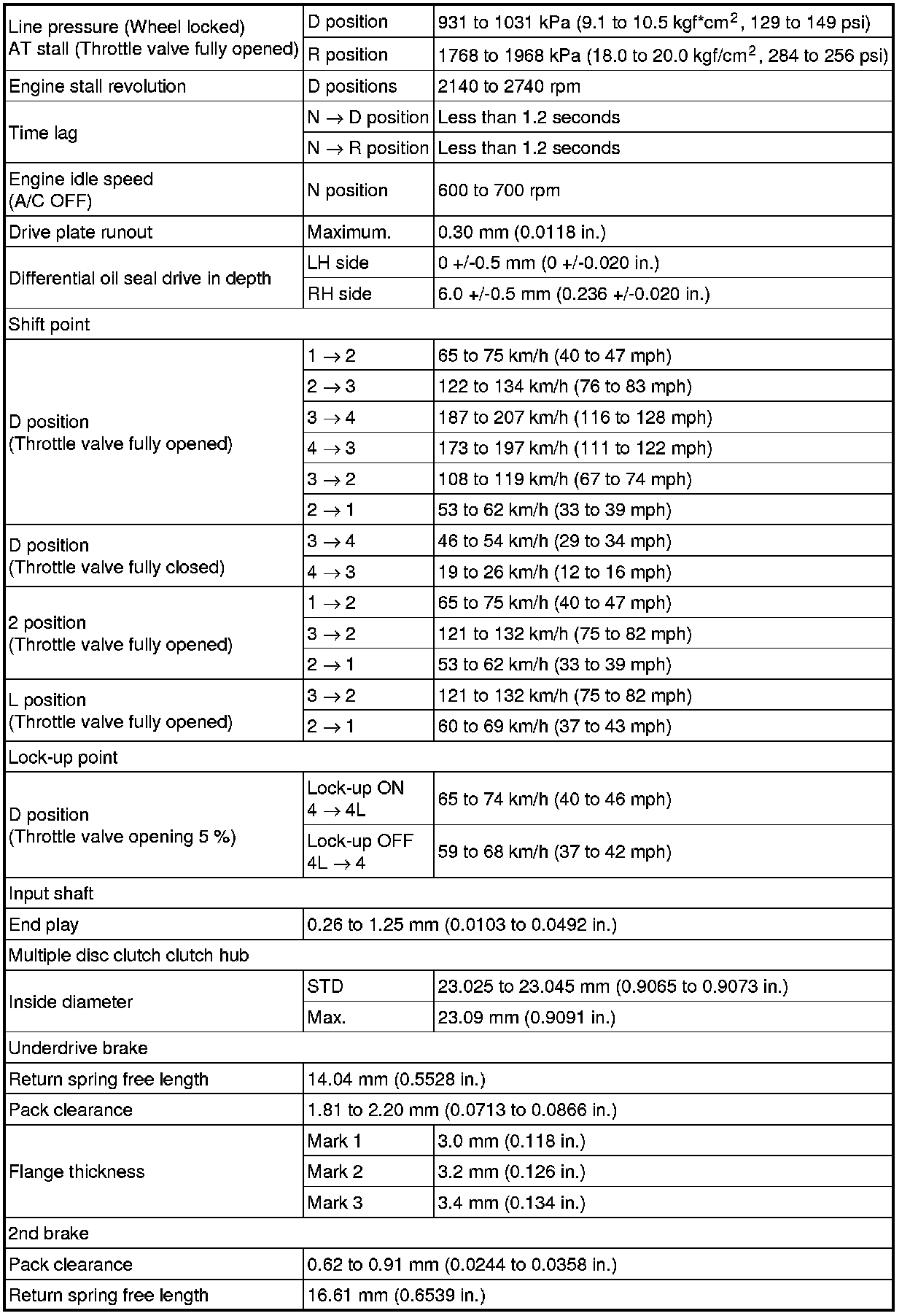

Automatic Transaxle Assembly

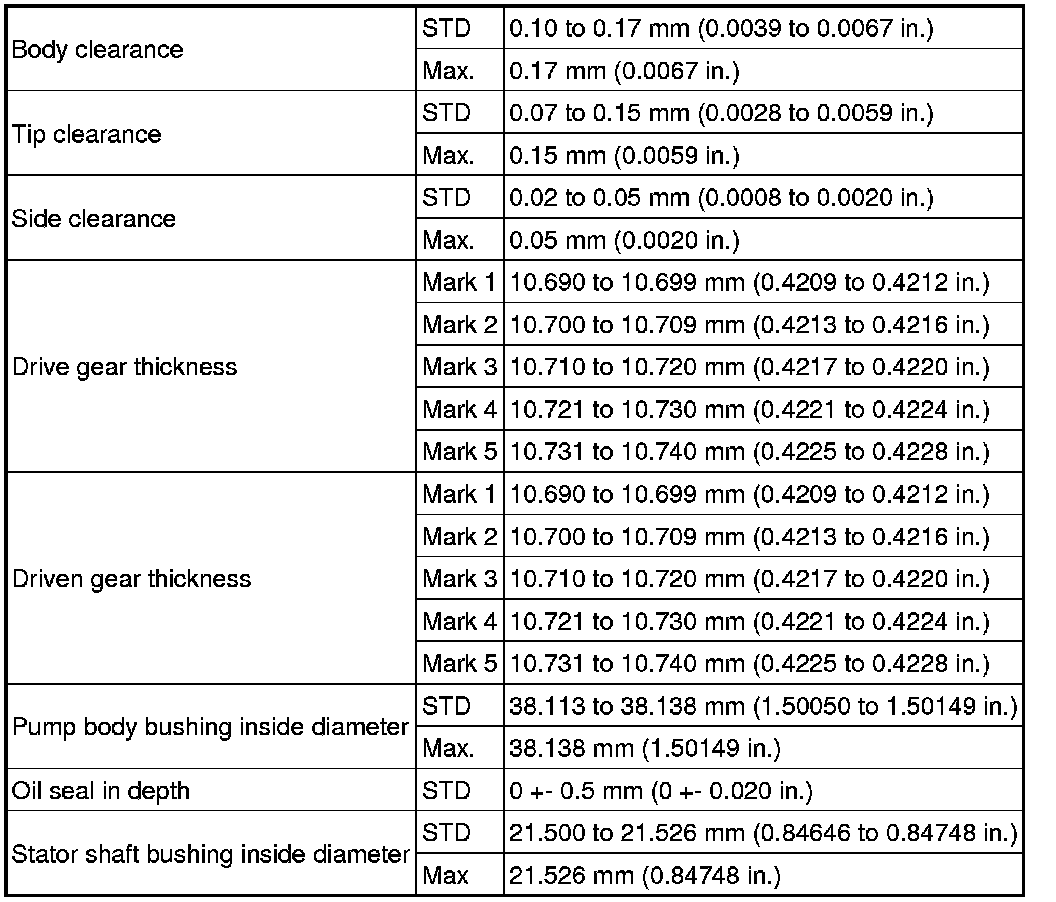

Oil Pump

Second Brake Piston

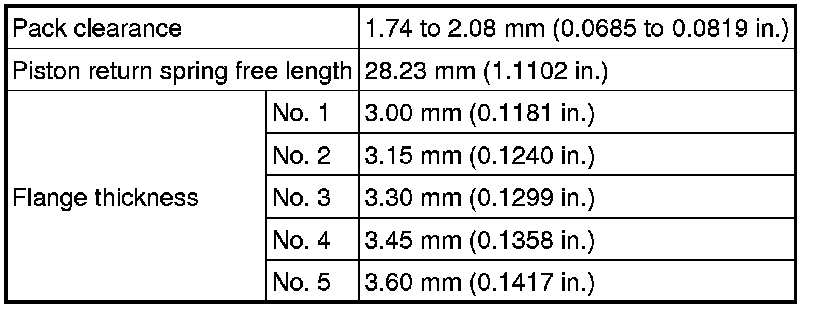

Forward Clutch

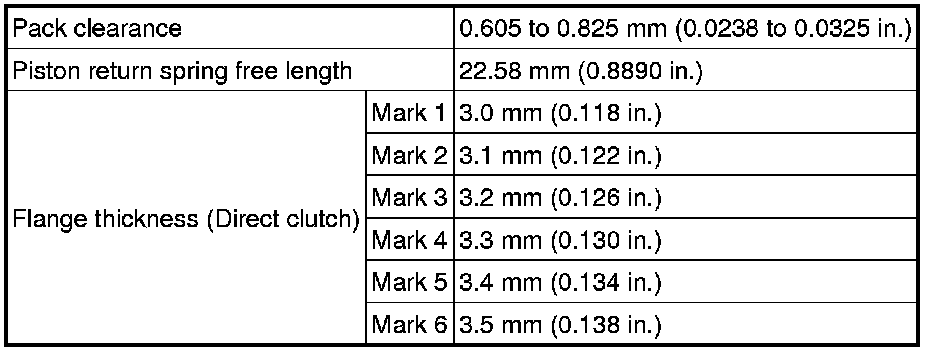

Direct Clutch

Underdrive Planetary Gear

Underdrive Clutch

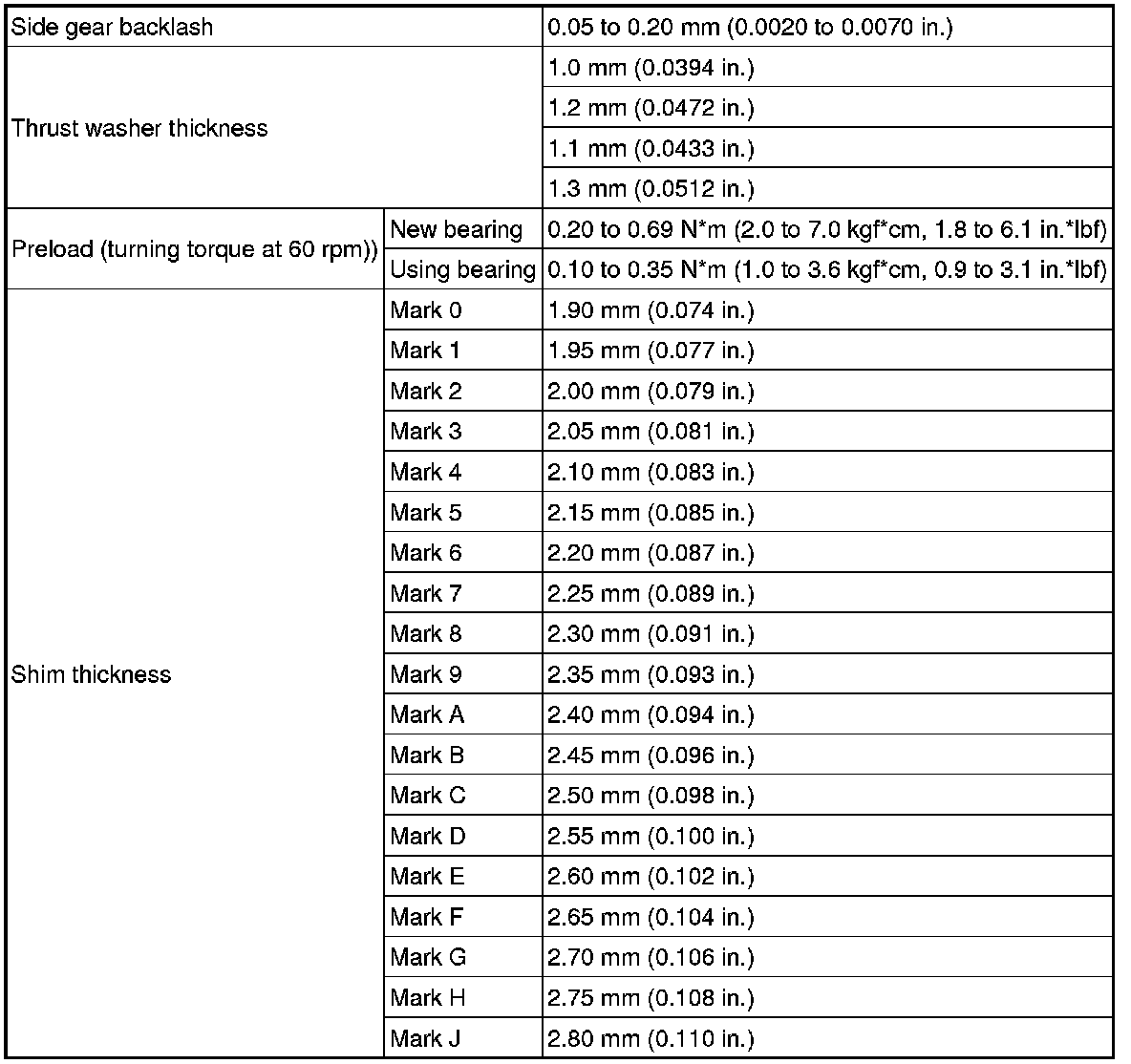

Differential
