Torque Specifications





SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

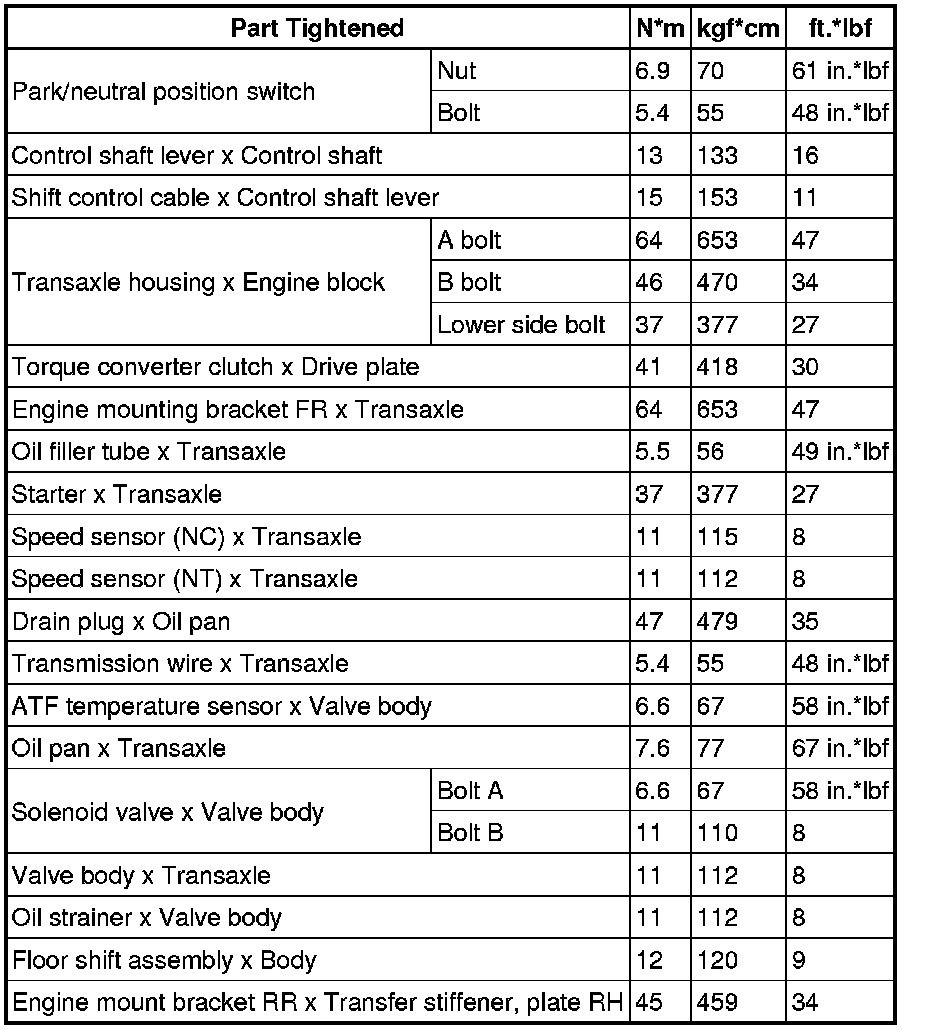

Automatic Transaxle Assembly

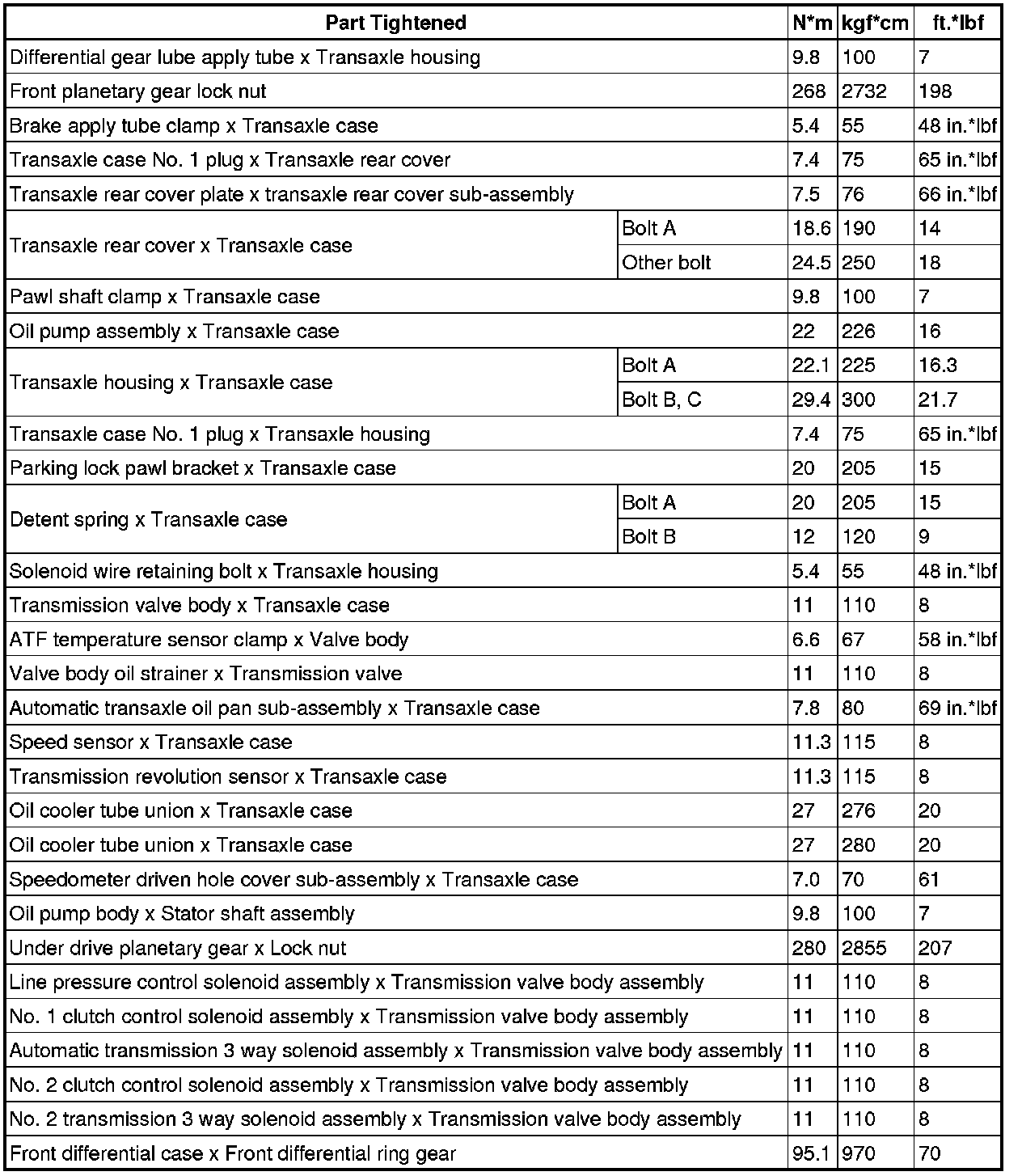

Automatic Transaxle Unit
