Service Data

SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

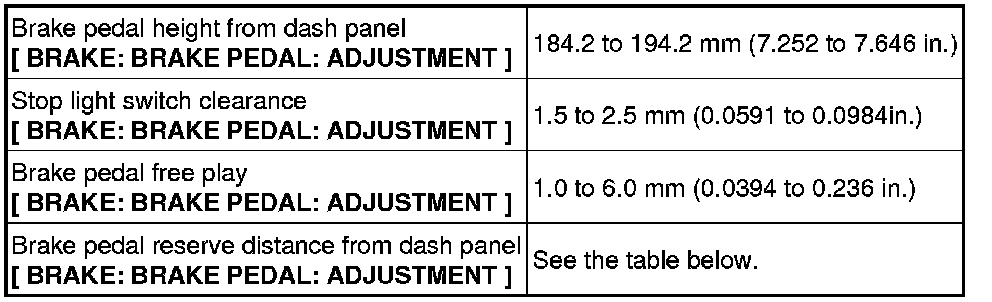

Brake Pedal

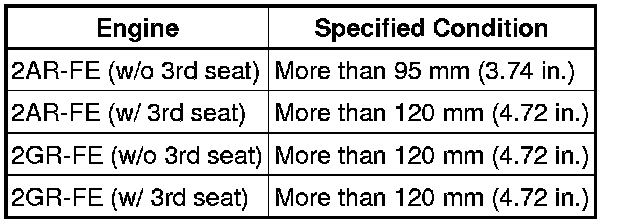

Brake Pedal Reserve Distance from Dash Panel

Brake Booster

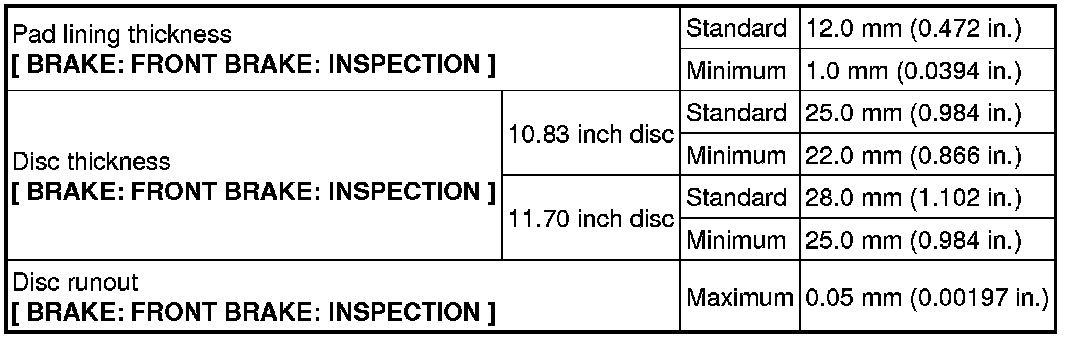

Front Brake

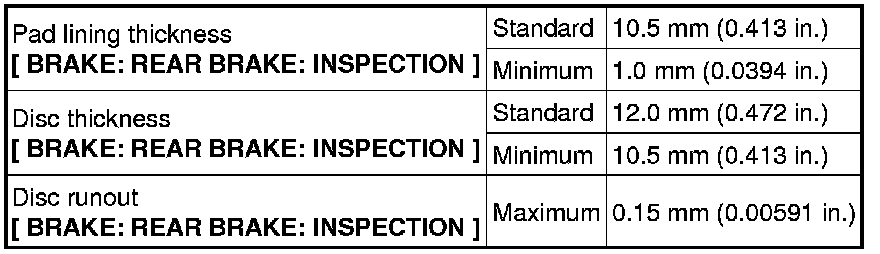

Rear Brake
