Computers and Control Systems





SERVICE SPECIFICATIONS: 2AR-FE ENGINE CONTROL SYSTEM: TORQUE SPECIFICATIONS

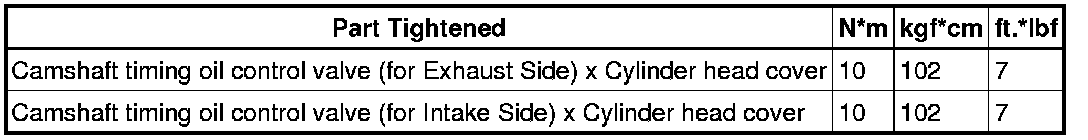

CAMSHAFT TIMING OIL CONTROL VALVE





THROTTLE BODY

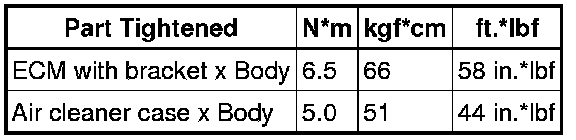

ECM





ACCELERATOR PEDAL





CAMSHAFT POSITION SENSOR





CRANKSHAFT POSITION SENSOR





ENGINE COOLANT TEMPERATURE SENSOR





KNOCK SENSOR





AIR FUEL RATIO SENSOR





HEATED OXYGEN SENSOR





(): For use with SST
