Intake Manifold

INTAKE MANIFOLD

Install a new gasket to the intake manifold.

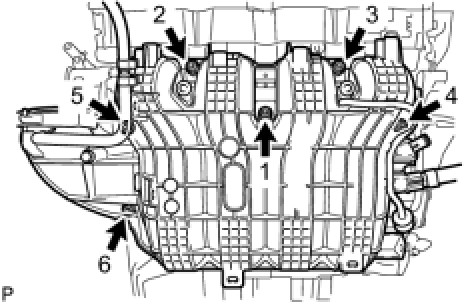

Install the intake manifold with the 6 bolts in the sequence shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
