Torque Specifications

SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

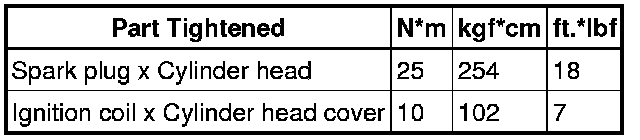

ENGINE

DRIVE BELT

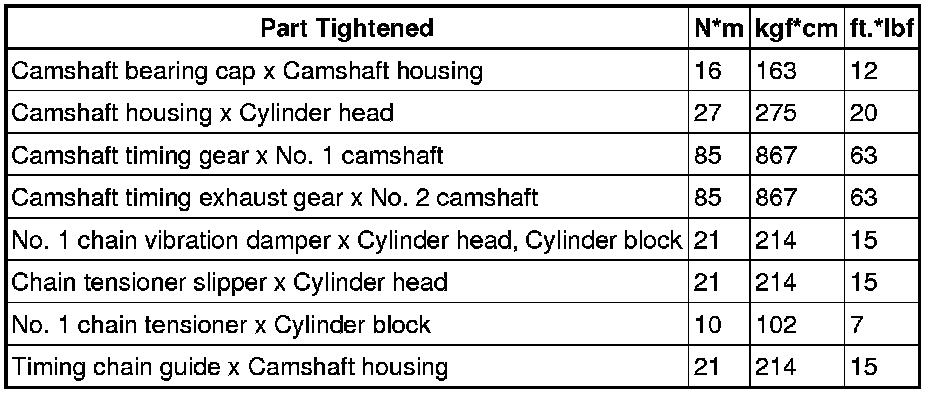

CAMSHAFT

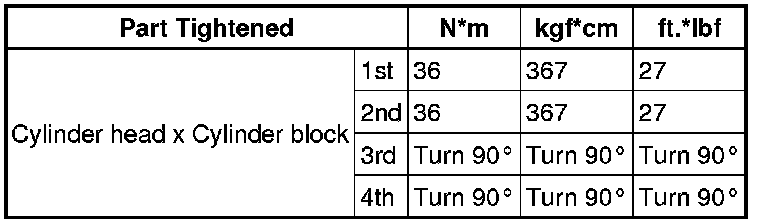

CYLINDER HEAD GASKET

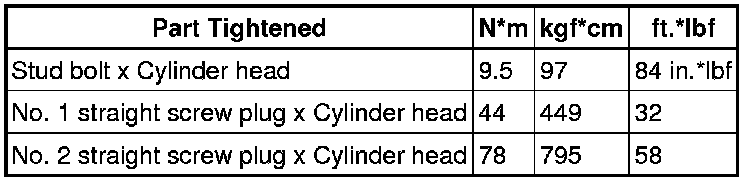

CYLINDER HEAD

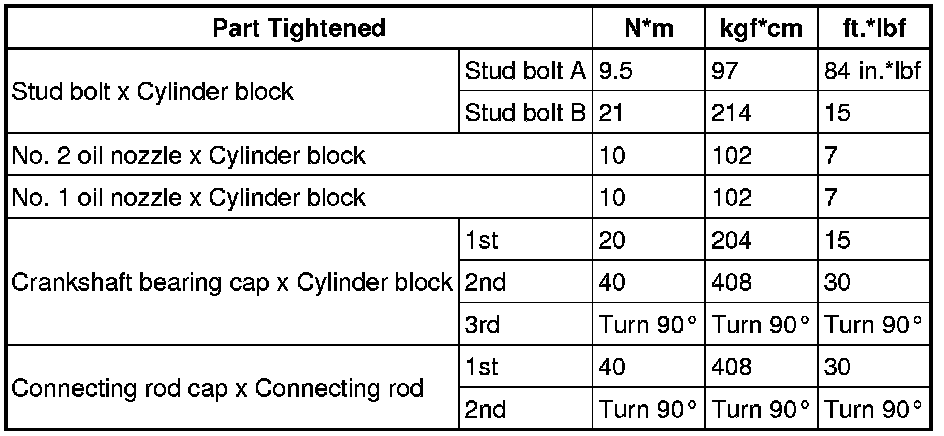

CYLINDER BLOCK

ENGINE REAR OIL SEAL

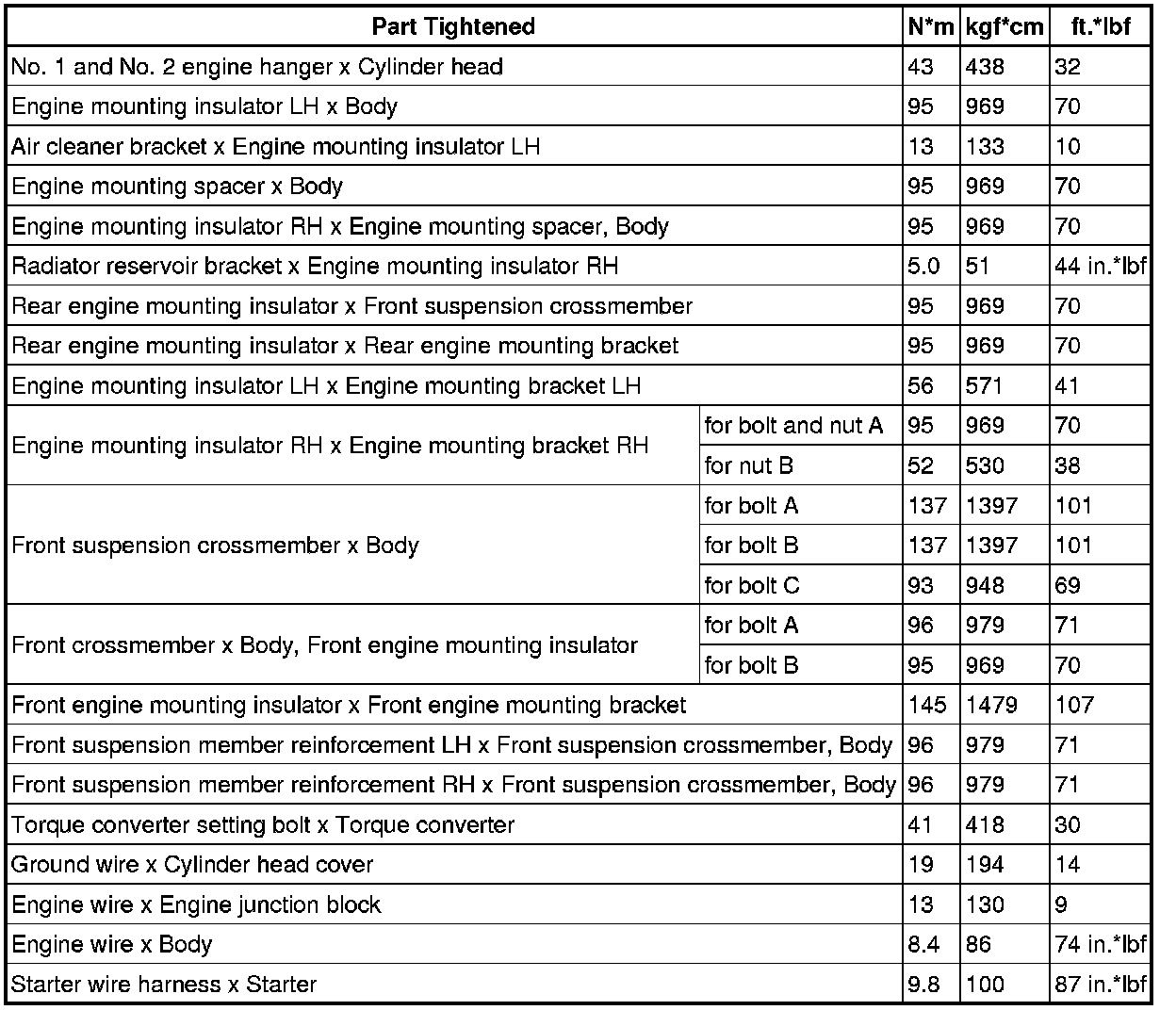

ENGINE ASSEMBLY

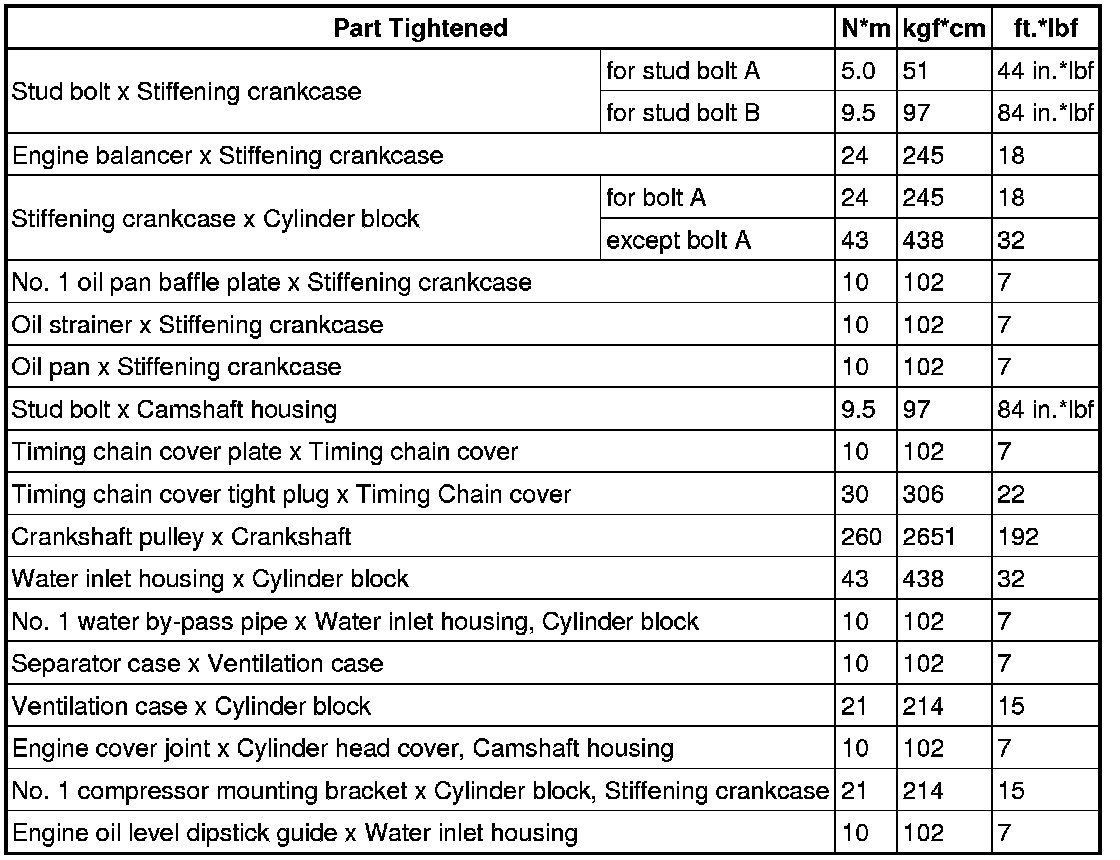

ENGINE UNIT
