2AR-FE CHARGING: GENERATOR: INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

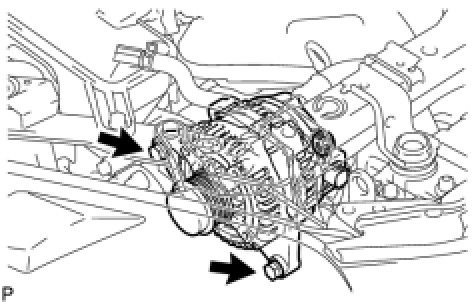

(a) Install the generator with the 2 bolts.





Torque : 52 Nm (530 kgf-cm, 38 ft-lbf)

(b) Install the wire harness clamp bracket with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

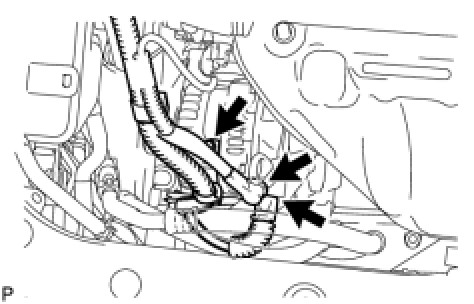

(c) Connect the generator wire with the nut.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(d) Install the terminal cap.

(e) Connect the generator connector.

2. INSTALL WIRE HARNESS CLAMP BRACKET

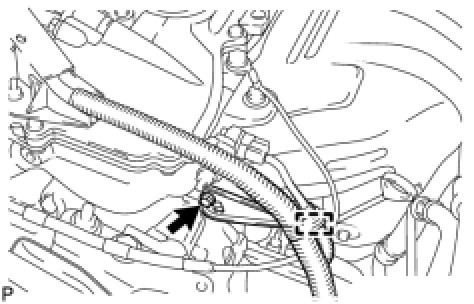

(a) Install the clamp bracket with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Attach the wire harness clamp to the clamp bracket.

3. INSTALL FAN & GENERATOR V BELT

(a) Install the belt Installation.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
