RAV4 2WD L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Description and Operation
>>
Smart Key System
>>
System Diagram
System Diagram

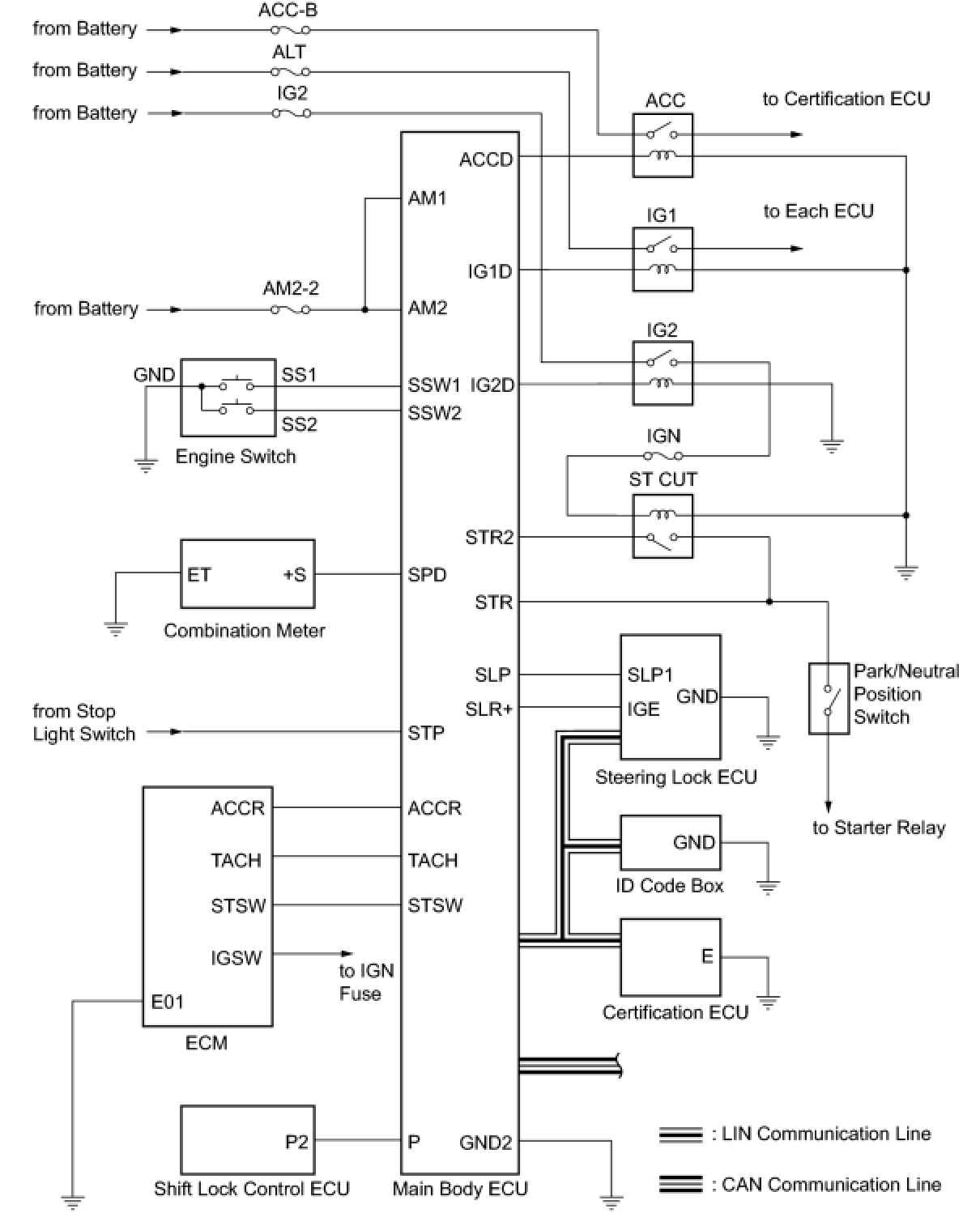

2AR-FE STARTING: SMART KEY SYSTEM: SYSTEM DIAGRAM

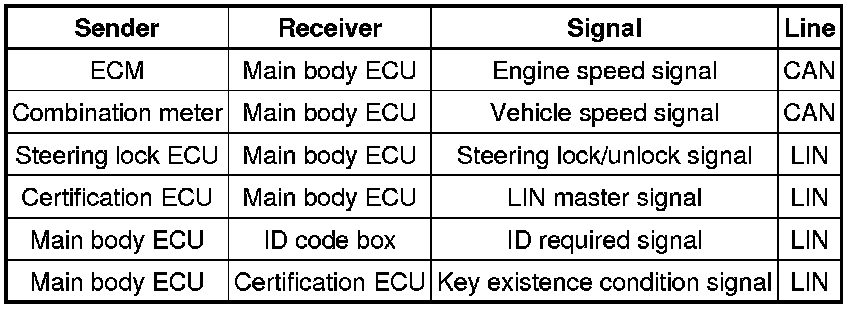

Communication Table
