Installation

2AR-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

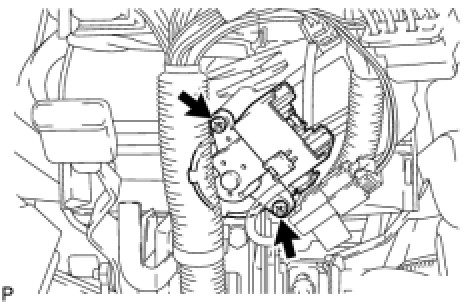

(a) Install the ignition switch with the 2 screws.

(b) Attach the claw to connect the key interlock solenoid wire harness connector to the ignition switch connector.

(c) Connect the ignition switch connector.

2. INSTALL LOWER STEERING COLUMN COVER

(a) Attach the 4 claws to install the lower steering column cover.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
