Ignition Switch: Testing and Inspection
2AR-FE STARTING: IGNITION SWITCH: INSPECTION 1.
INSPECT

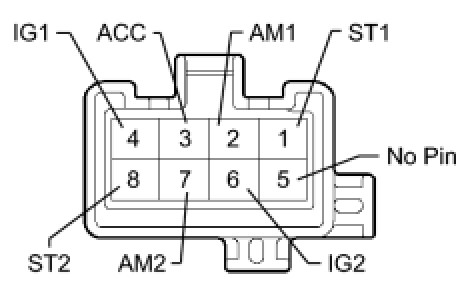

IGNITION SWITCH ASSEMBLY
(a)
Measure the resistance according to the value(s) in the table below.
Standard Resistance: If the result is not as specified, replace the
ignition switch assembly.
