Inspection

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR (for Sensor 1)

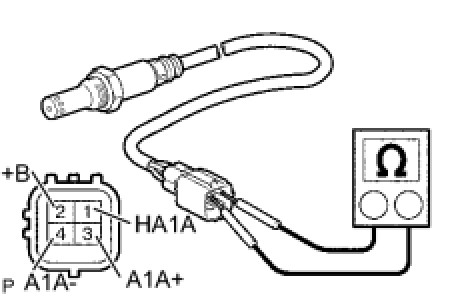

(a) Measure the resistance of the sensor.

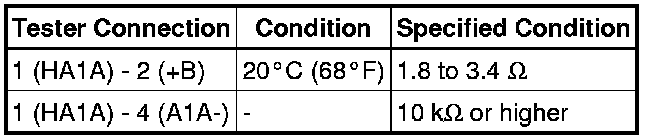

Standard resistance:





If the resistance is not as specified, replace the sensor.
