Ignition Relay No. 2

2GR-FE ENGINE CONTROL SYSTEM: IGNITION RELAY NO. 2: ON-VEHICLE INSPECTION

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE IG2 RELAY

(a) Remove the engine room No. 1 relay block cover.

(b) Remove the IG2 relay from the engine room No. 1 relay block.

4. INSPECT IG2 RELAY

(a) Measure the resistance of the IG2 relay.

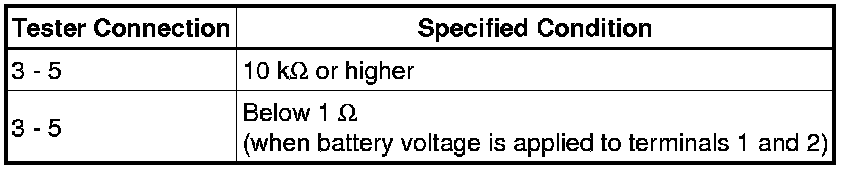

Standard resistance:





If the result is not as specified, replace the relay.

5. INSTALL IG2 RELAY

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
