Removal

NAVIGATION: NAVIGATION RECEIVER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

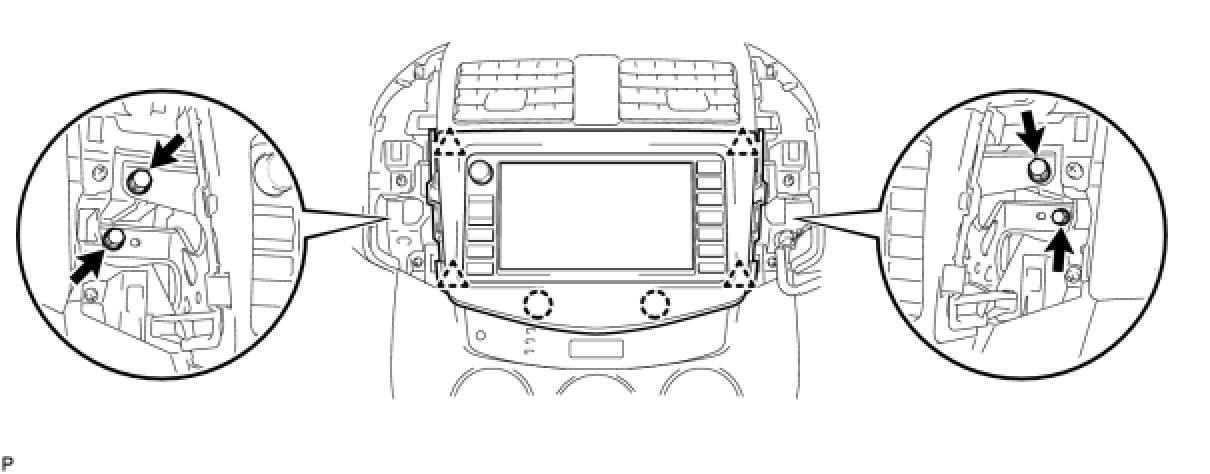

4. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

(a) w/ DVD Player:

(1) Remove the 4 bolts.

(2) Pull the navigation receiver to detach the 2 claws and 4 clips on the backside of the navigation receiver





(3) Disconnect all the connectors and remove the navigation receiver.

(b) w/ CD Player:

(1) Remove the 4 bolts.





(2) Pull the navigation receiver to detach the 2 claws and 4 clips on the backside of the navigation receiver.

(3) Disconnect all the connectors and remove the navigation receiver.

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

(a) Detach the 4 claws and remove the instrument cluster finish panel.

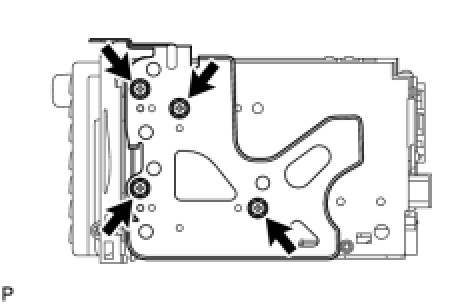

6. REMOVE NO. 1 RADIO BRACKET

(a) w/ CD Player:

(1) Remove the 4 screws and No. 1 radio bracket from the navigation receiver.





(b) w/ DVD Player:

(1) Remove the 4 screws and No. 1 radio bracket from the navigation receiver.

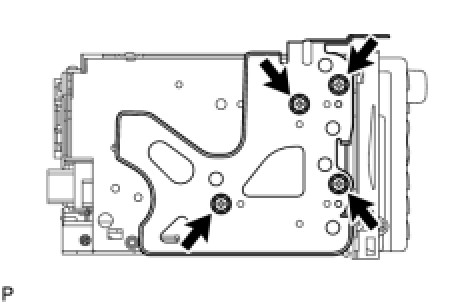

7. REMOVE NO. 2 RADIO BRACKET

(a) w/ CD Player:

(1) Remove the 4 screws and No. 2 radio bracket from the navigation receiver.





(b) w/ DVD Player:

(1) Remove the 4 screws and No. 2 radio bracket from the navigation receiver.
