50-53 - Position of Parts in Engine Compartment
50-53 - Position of Parts in Engine Compartment

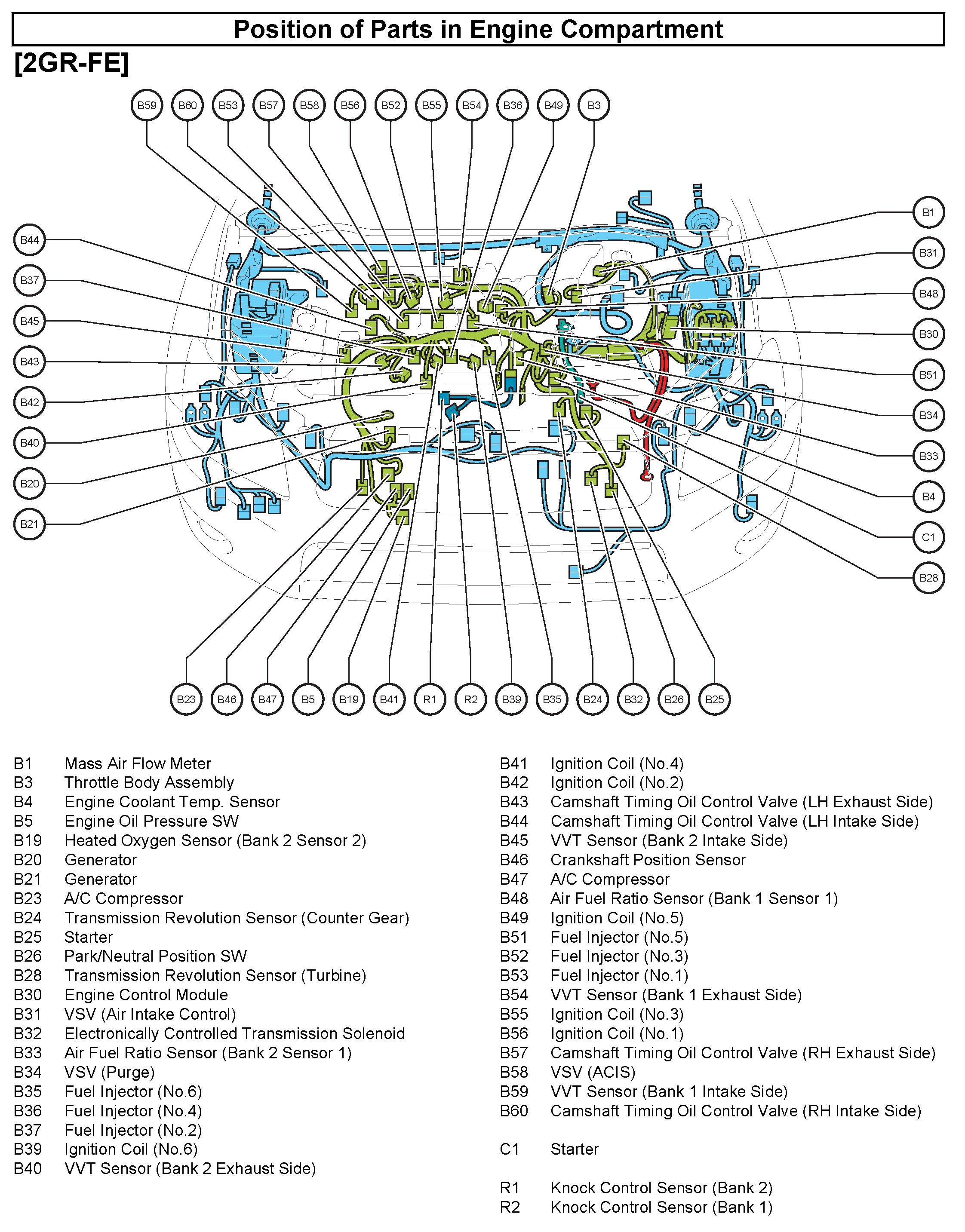

50 - Position of Parts in Engine Compartment:

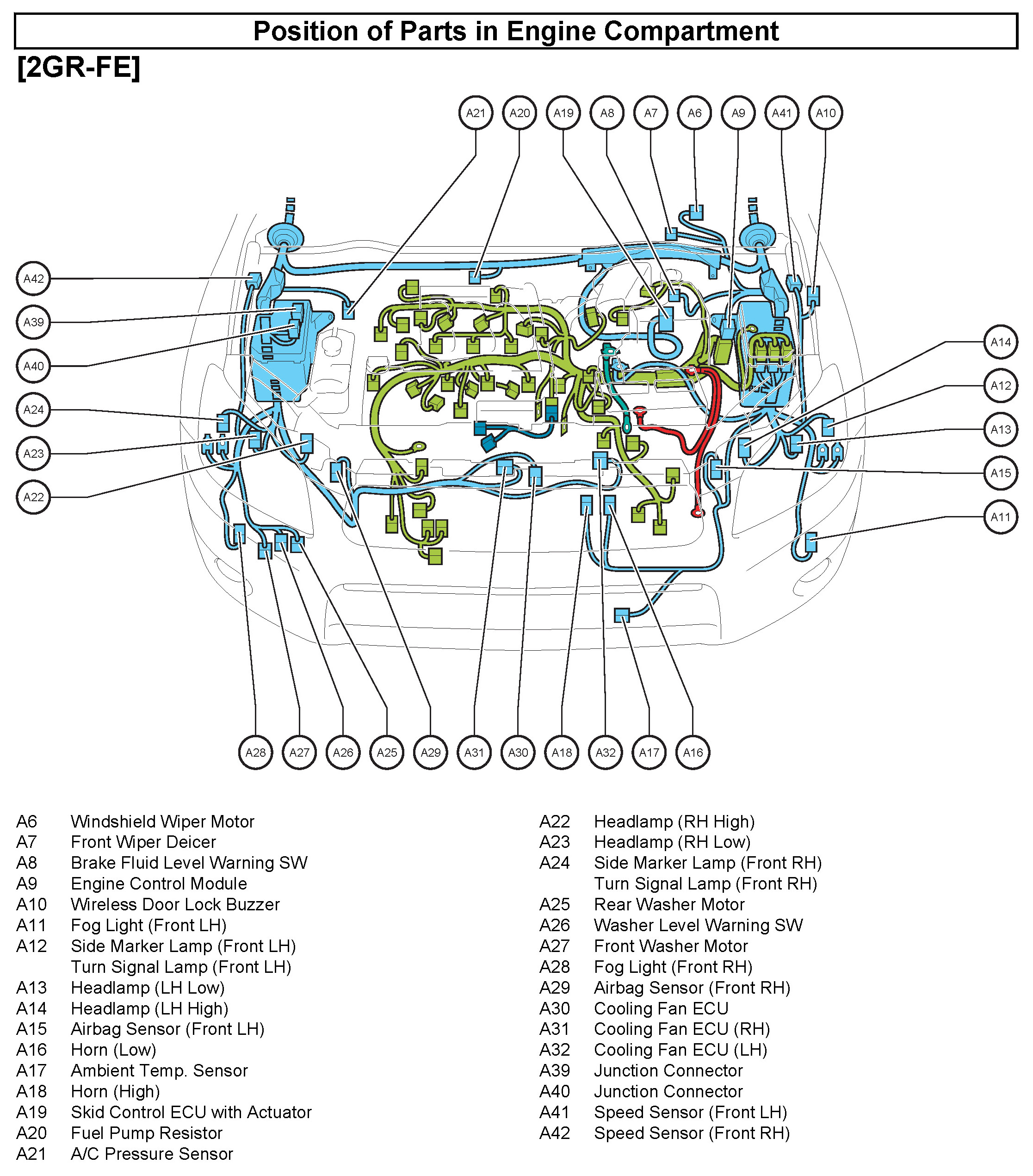

51 - Position of Parts in Engine Compartment:
