Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning)

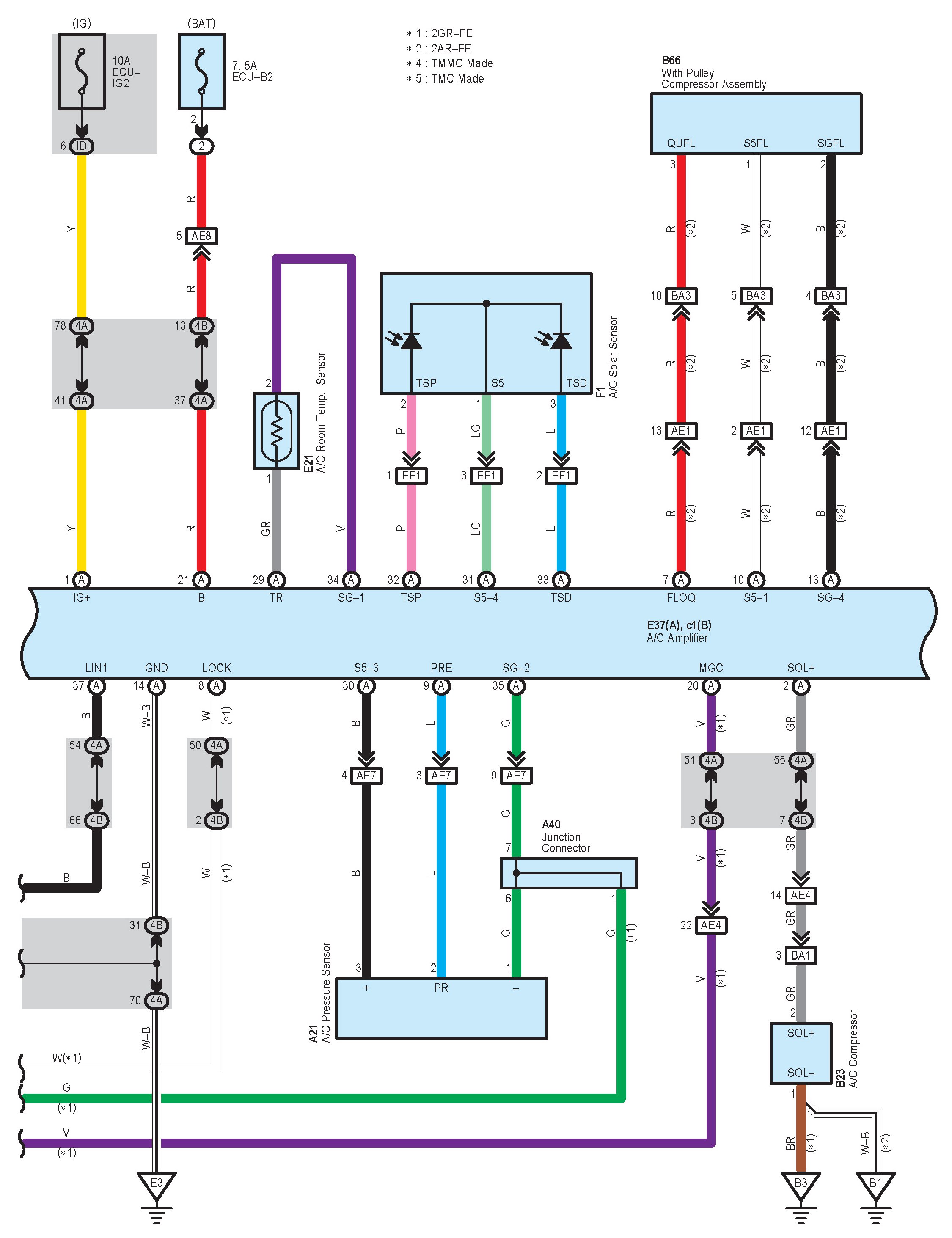

Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning) Part 1:

Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning) Part 2:

Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning) Part 3:

Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning) Part 4:

Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning) Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
