Locations
>>
Connector Locations
Connector Locations

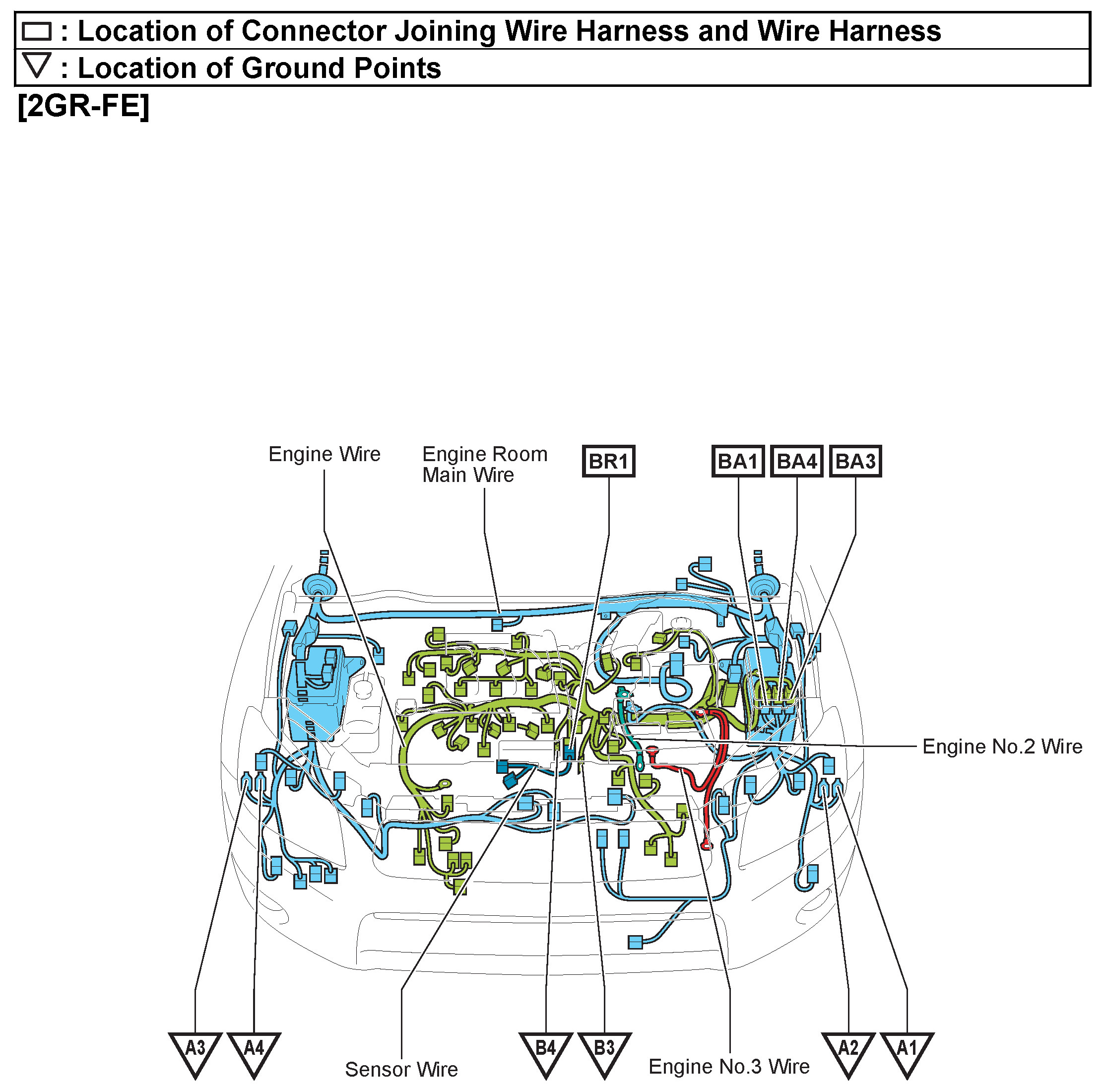

64 - A1-B4, BA1-BR1:
66 - AE1-SK2:
67 - K1-Q1, IL1-VK1:
68 - KX1-LY1:
