Installation

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

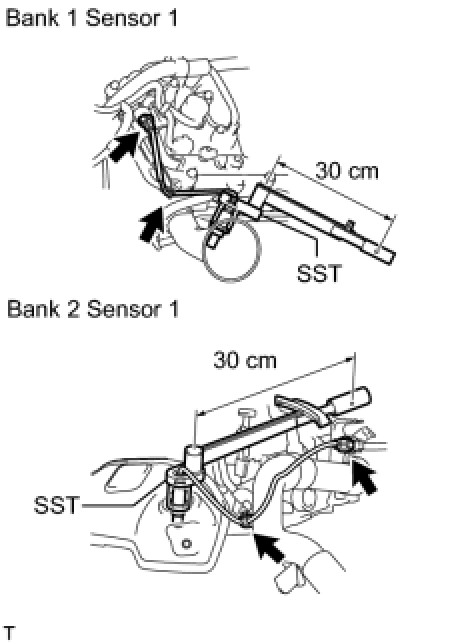

(a) Using SST, install the sensor to the exhaust manifold.

SST : 09224-00010

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) for use with SST

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) for use without SST

HINT
* Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
* Make sure SST and a wrench are connected in a straight line.

(b) Connect the sensor connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. CHECK FOR EXHAUST GAS LEAKS
