Removal

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: REMOVAL

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE HEATED OXYGEN SENSOR (for Sensor 2)

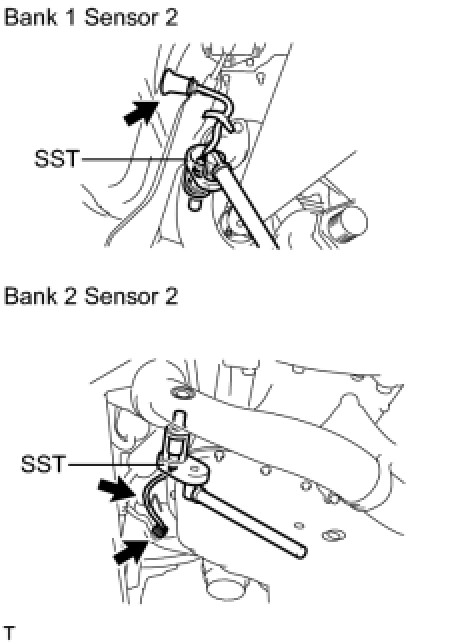

(a) Bank 1 Sensor 2:

Remove the rear console box Removal.

(b) Disconnect the sensor connector.

(c) Using SST, remove the sensor from the exhaust pipe.

SST : 09224-00010
