Heated Oxygen Sensor

2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSPECTION

1. INSPECT HEATED OXYGEN SENSOR (for Sensor 2)

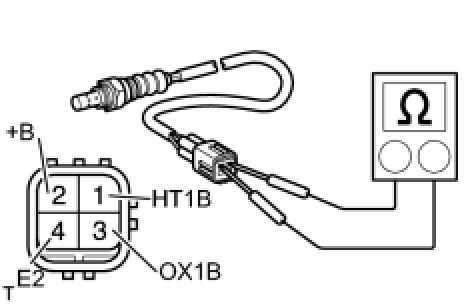

(a) Measure the resistance of the sensor.

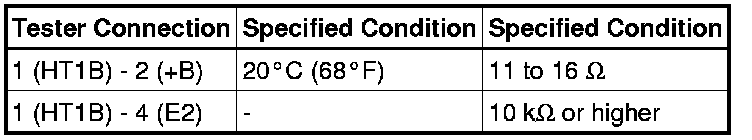

Standard resistance:





If the resistance is not as specified, replace the sensor.
