Computers and Control Systems: Service Precautions

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PRECAUTION

1. IGNITION SWITCH EXPRESSION

HINT

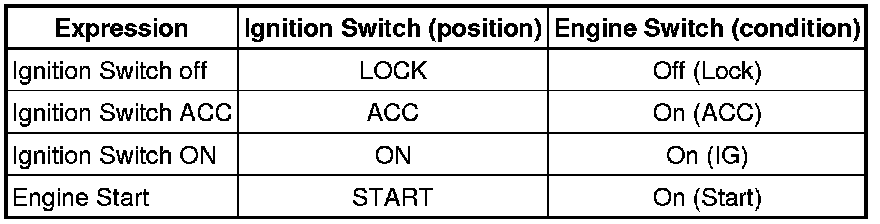

The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.





2. INITIALIZATION

NOTICE:
* Perform the Reset Memory (A/T initialization) when replacing the automatic transaxle assembly, engine assembly or ECM Programming and Relearning.
* Perform the Registration (VIN registration) when replacing the ECM Programming and Relearning.

HINT
Initialization cannot be completed only by disconnecting and reconnecting the battery cable.

3. FOR USING TECHSTREAM

CAUTION:
Observe the following items for safety reasons:

* Read the Techstream instruction books before using the Techstream.

* Prevent the Techstream cable from being caught on the pedals, shift lever or steering wheel when driving with the Techstream connected to the vehicle.

* When driving the vehicle for testing purposes while using the Techstream, two persons are required. One person drives the vehicle, and the other operates the Techstream.

4. DISCONNECT AND RECONNECT CABLE OF NEGATIVE BATTERY TERMINAL

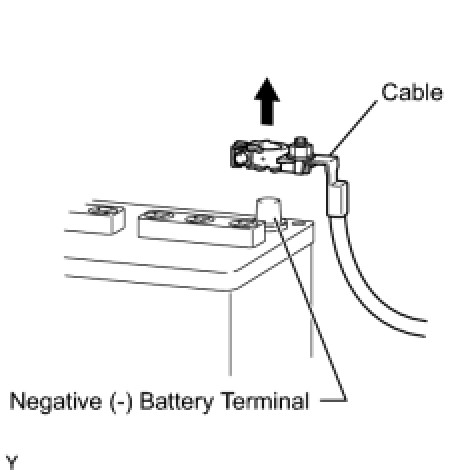

(a) Before performing electronic work, disconnect the cable from the negative (-) battery terminal in order to prevent short circuits and burn outs.

(b) Before disconnecting and reconnecting the battery cable, turn the ignition switch off and the headlight dimmer switch OFF. Then loosen the terminal nut completely. Do not damage the cable or terminal.

(c) When the battery cable is disconnected, the clock and radio, settings and stored DTCs are erased. Therefore, before disconnecting the battery cable, make a note of the settings.
