Electrical Diagrams

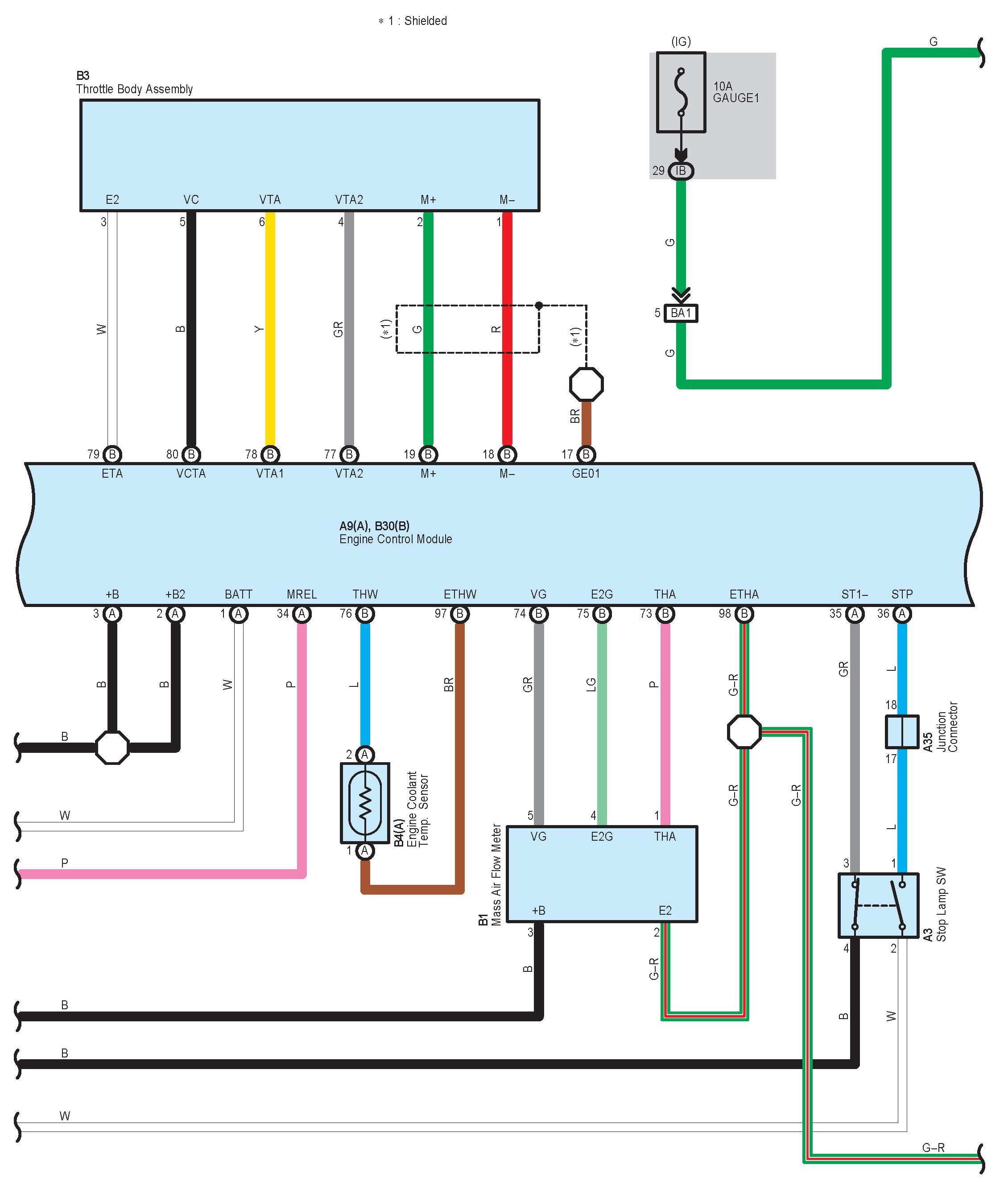

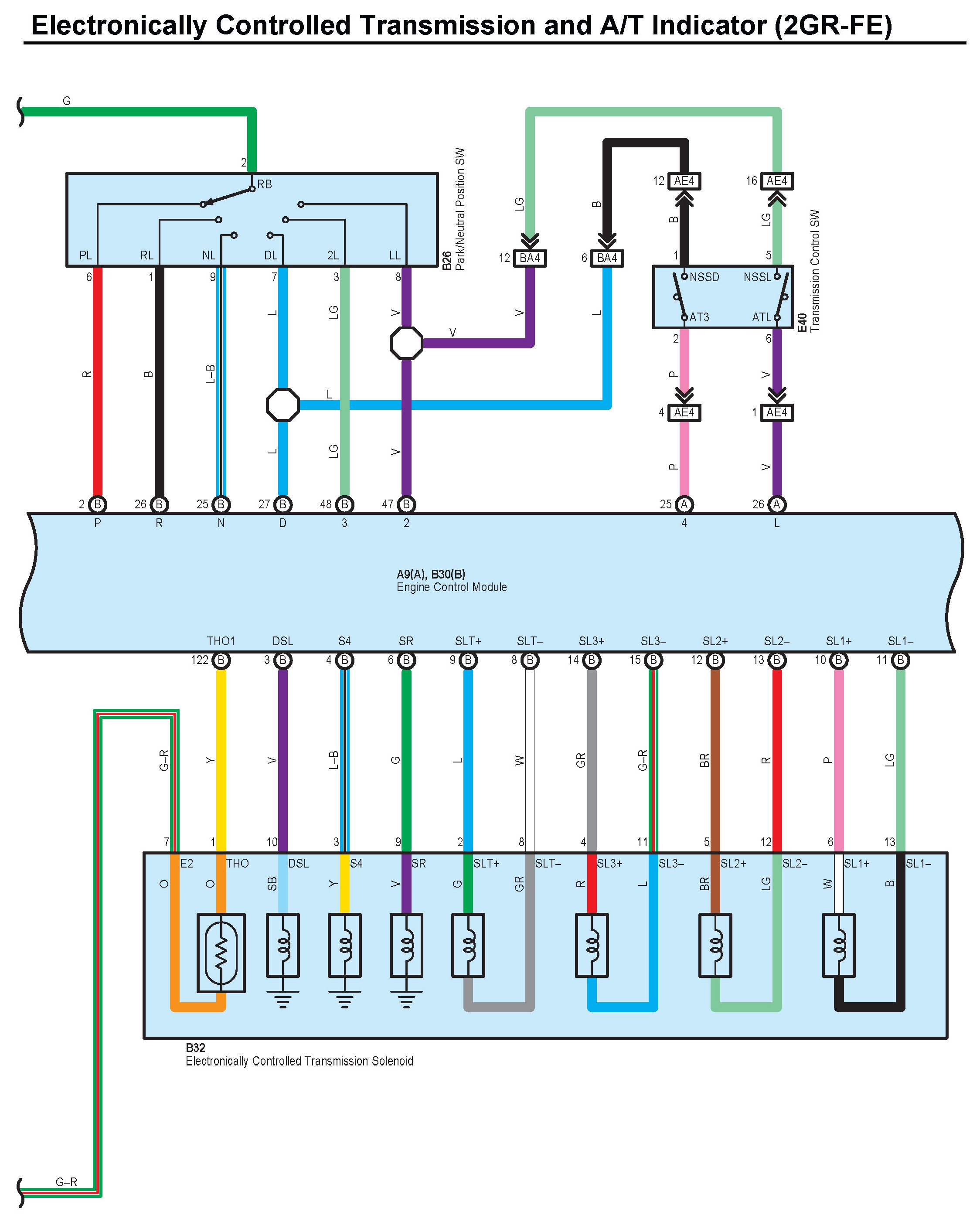

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 1:

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 2:

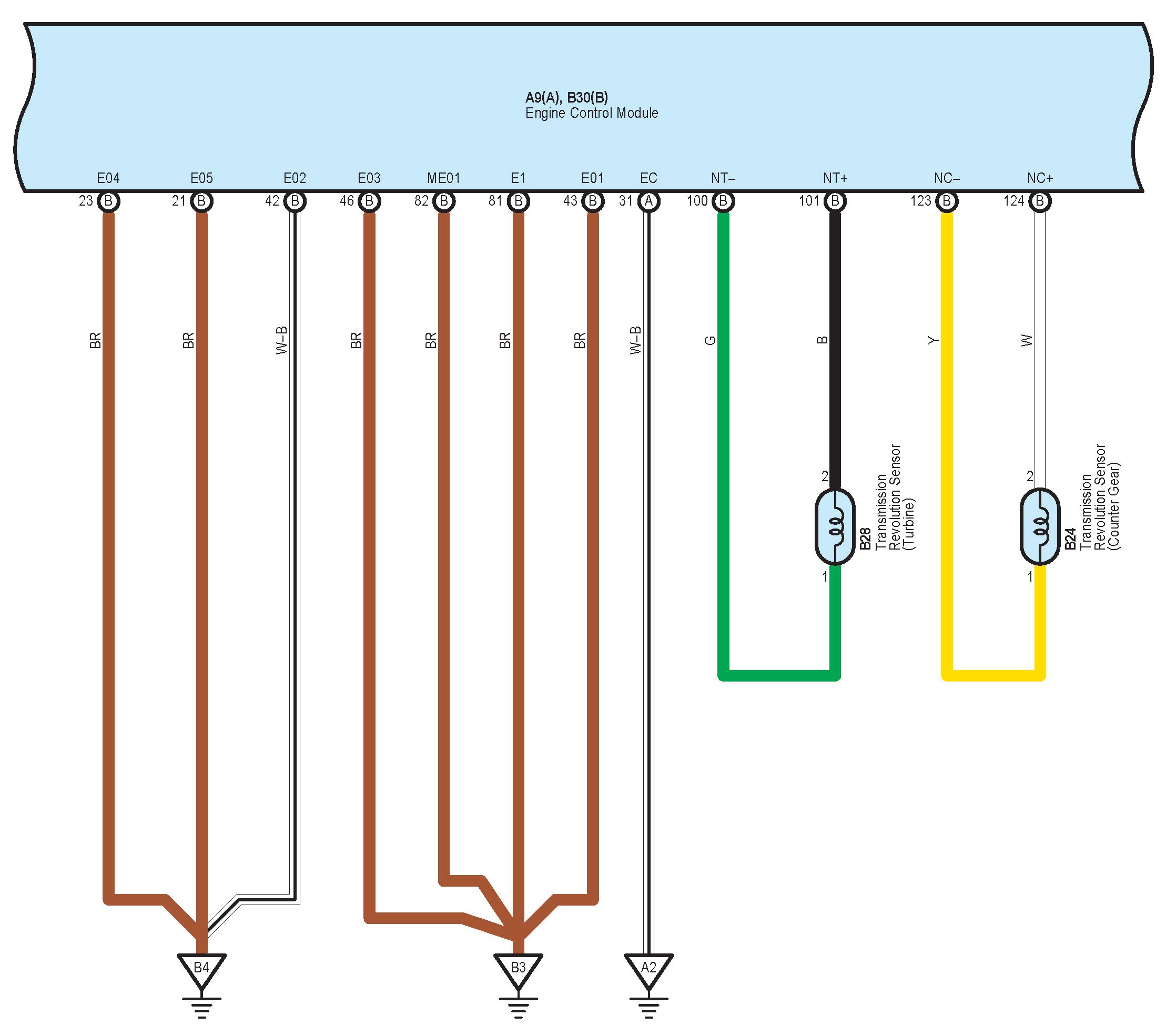

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 3:

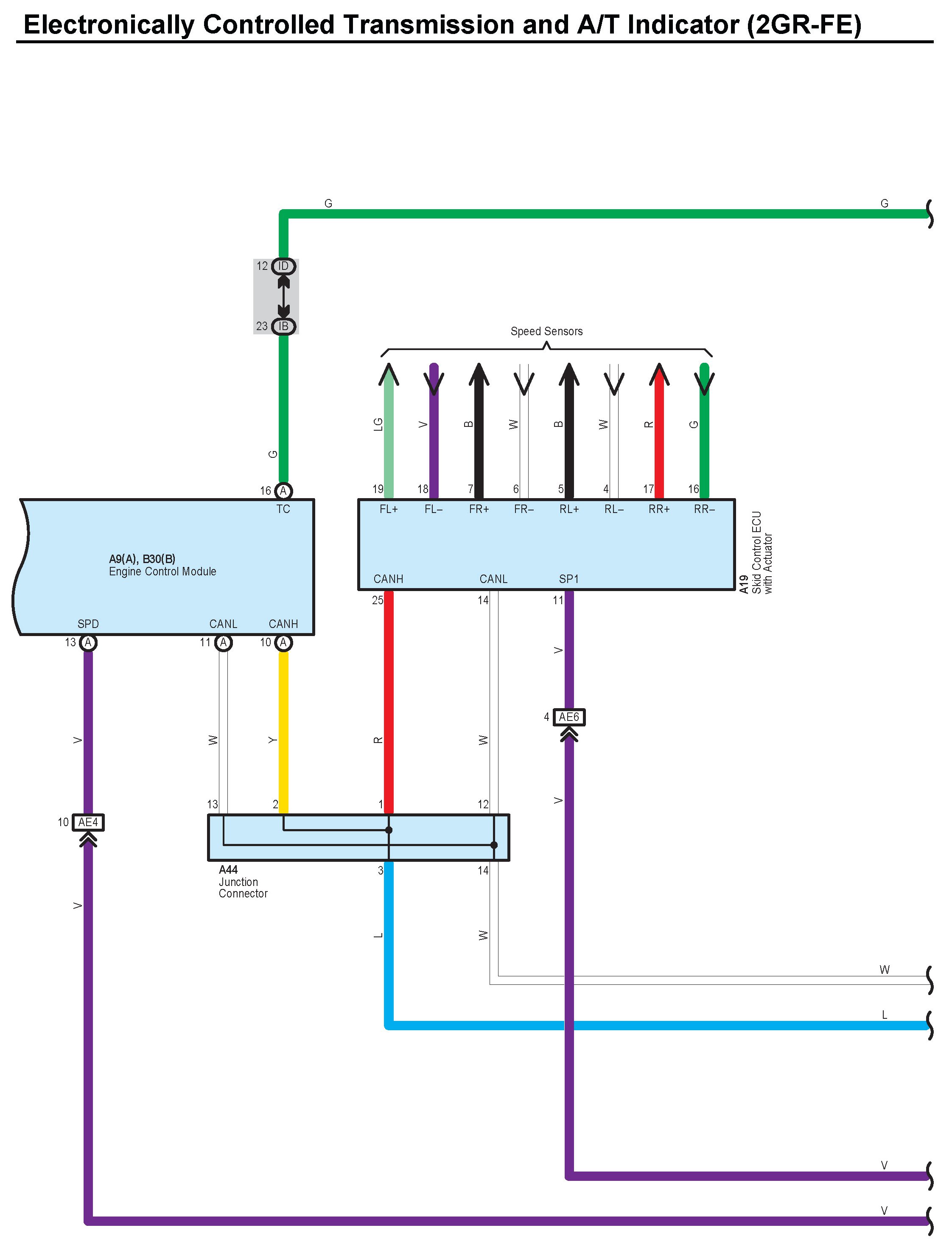

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 4:

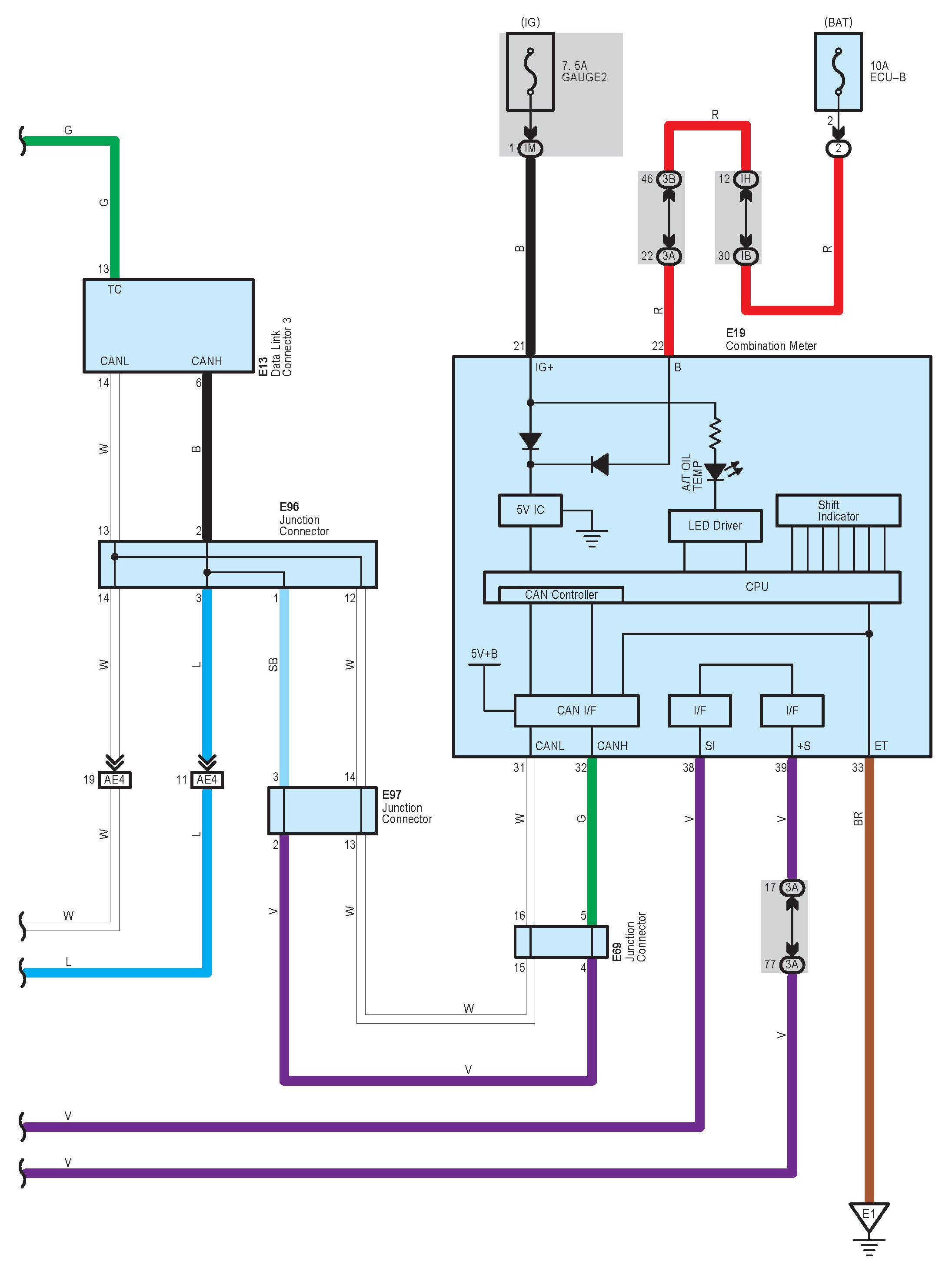

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 5:

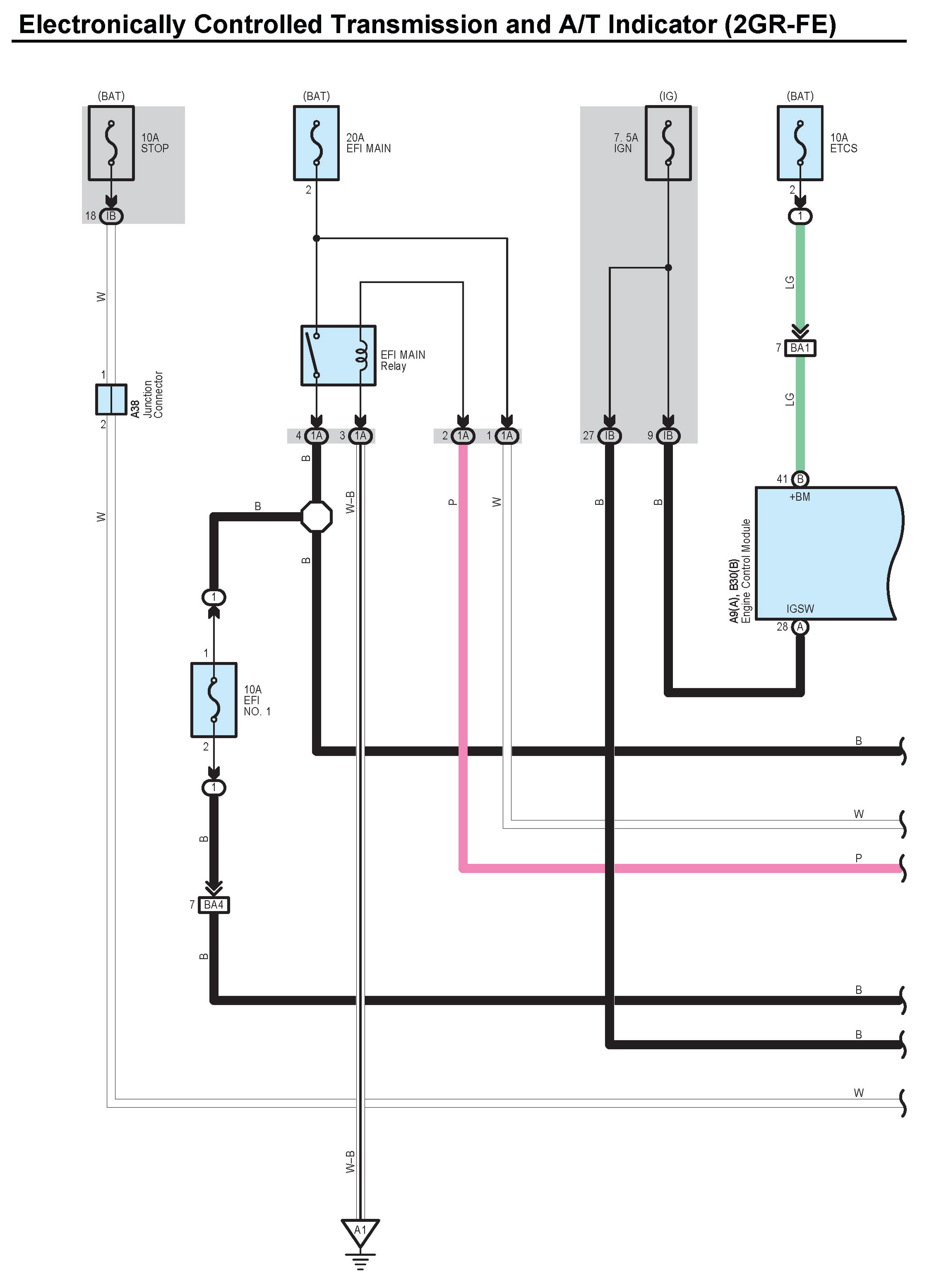

Electronically Controlled Transmission and A/T Indicator (2GR-FE) Part 6:

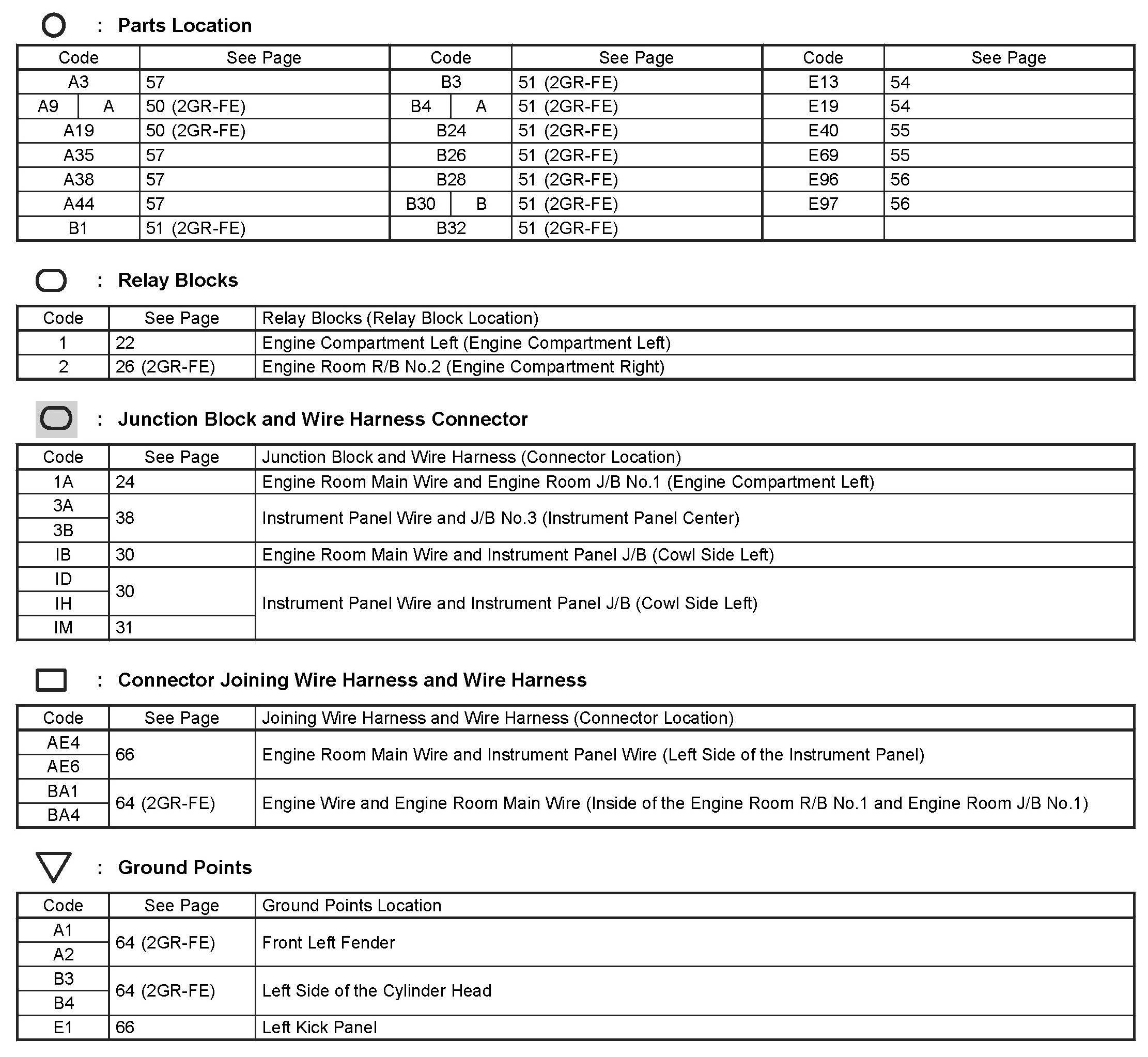

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
