Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Measure the resistance of the power switch.

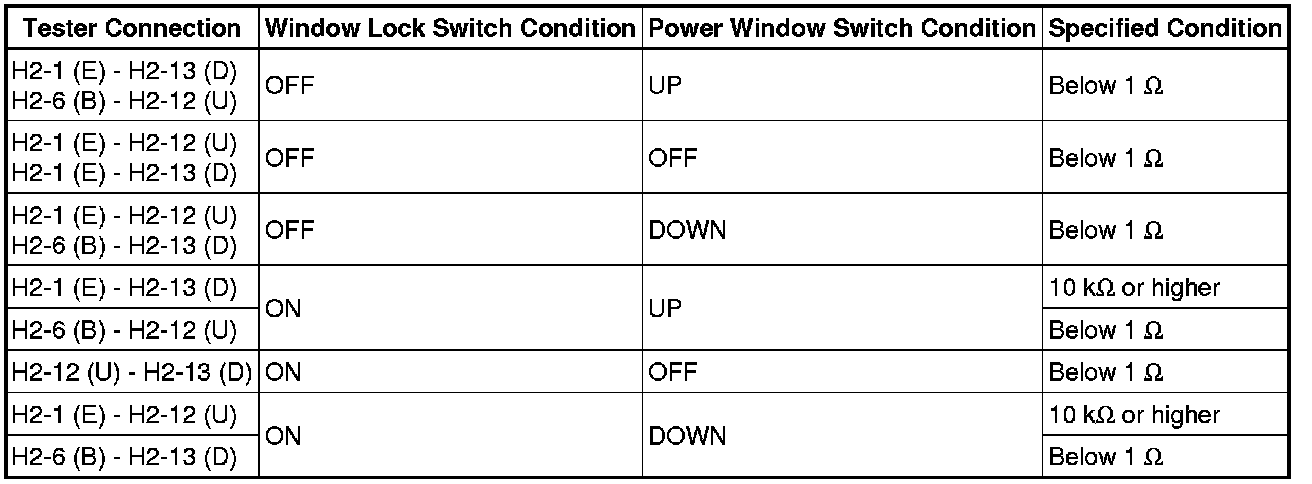

Standard resistance:

for Front driver switch
for Front passenger switch
for Rear LH switch
for Rear RH switch


















If the result is not as specified, replace the switch assembly.

(b) Apply battery voltage to the master switch and check that the AUTO light illuminates.





OK:





If the result is not as specified, replace the switch assembly.
