Alignment

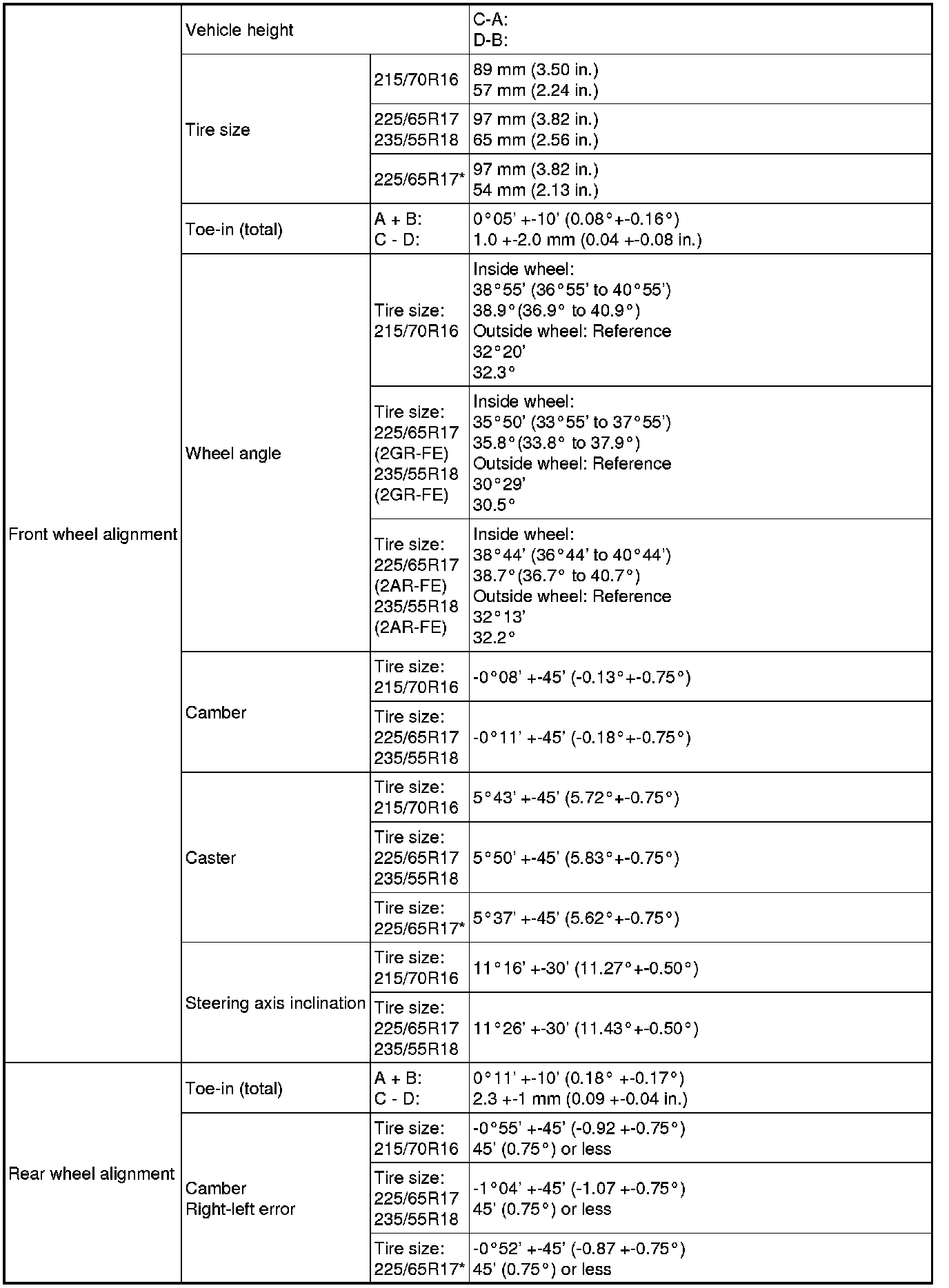

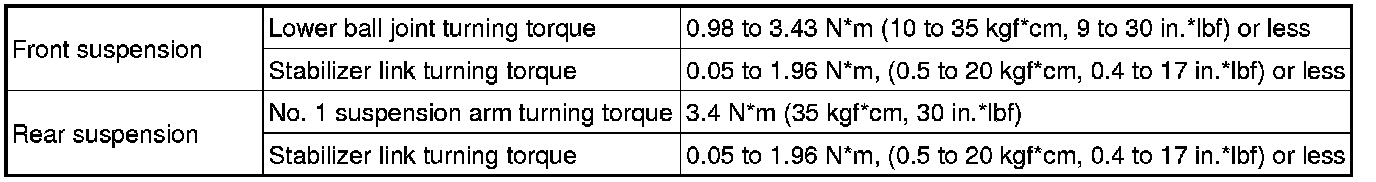

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

*: w/ 3rd seat.

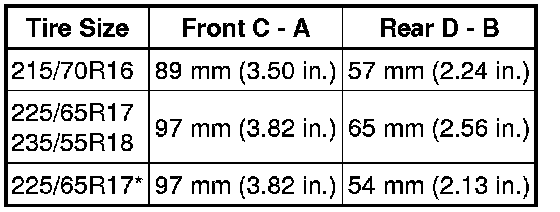

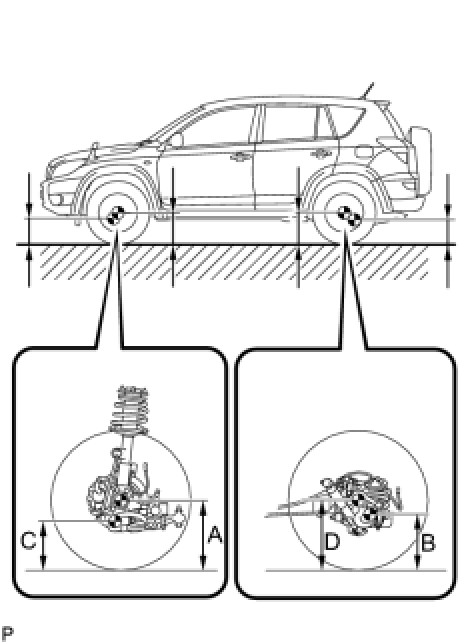

VEHICLE HEIGHT

Standard vehicle height (unloaded vehicle)
