Axle Nut
FRONT AXLE SHAFT NUTInstall a new hub nut.
Torque 216 Nm (2203 kgf-cm, 159 ft-lbf) for dia 26 for 2AR-FE
Torque 292 Nm (2978 kgf-cm, 215 ft-lbf) for dia 30 for 2GR-FE

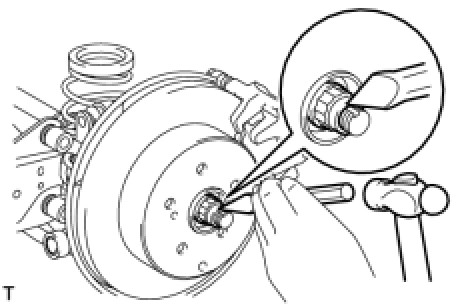

Using a chisel and hammer, stake the hub nut.
REAR AXLE SHAFT NUT (for 4WD)
Clean the threaded parts on the drive shaft and a new axle shaft nut using a non-residue solvent.
Install a new hub nut.
Torque 216 Nm (2203 kgf-cm, 159 ft-lbf)
Using a chisel and hammer, stake the hub nut.
