RAV4 4WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
Service Data
Service Data

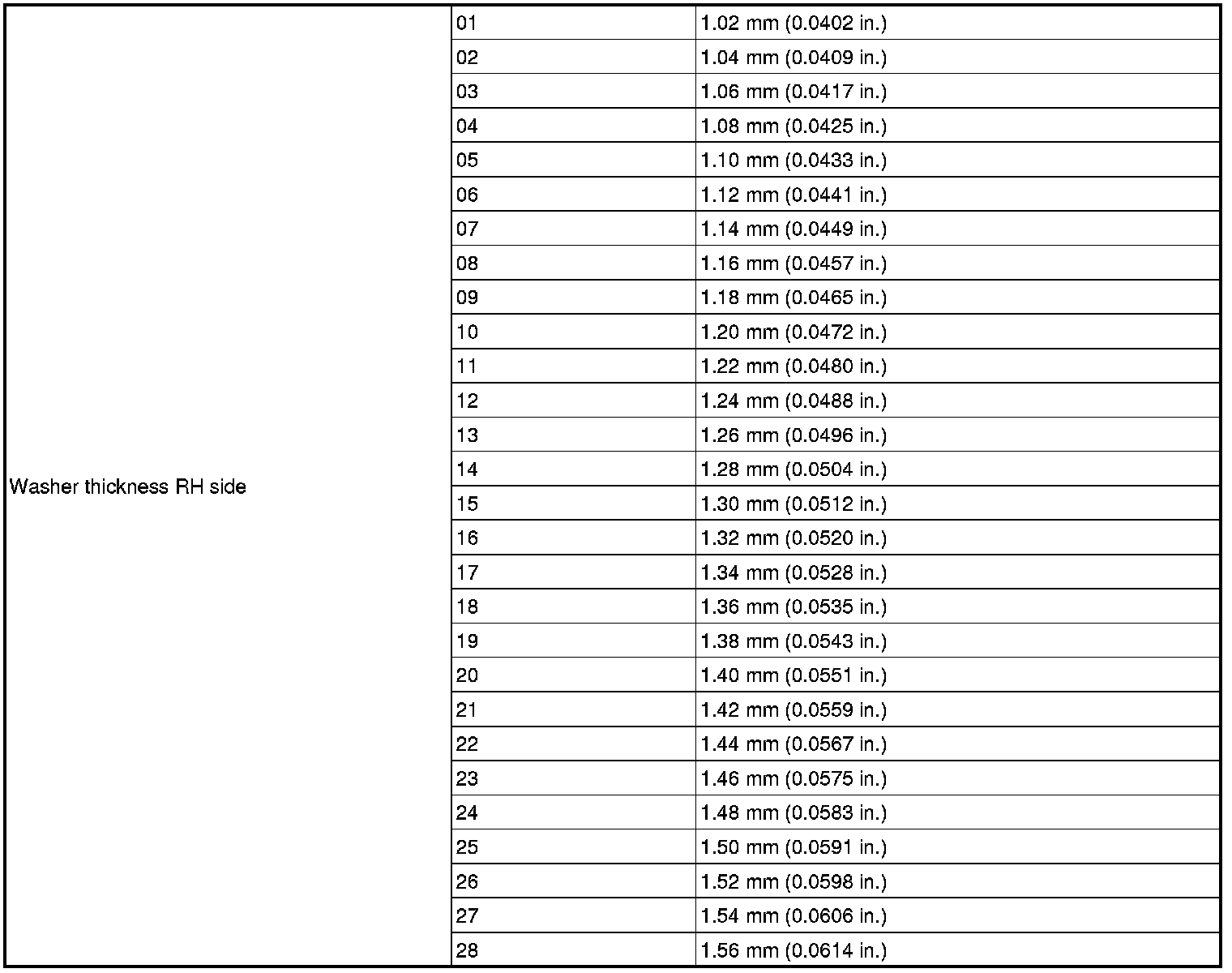

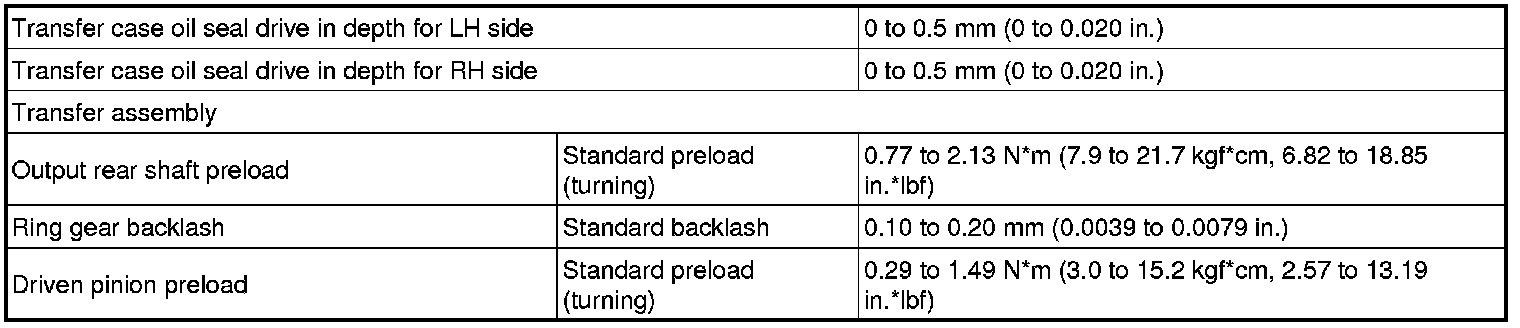

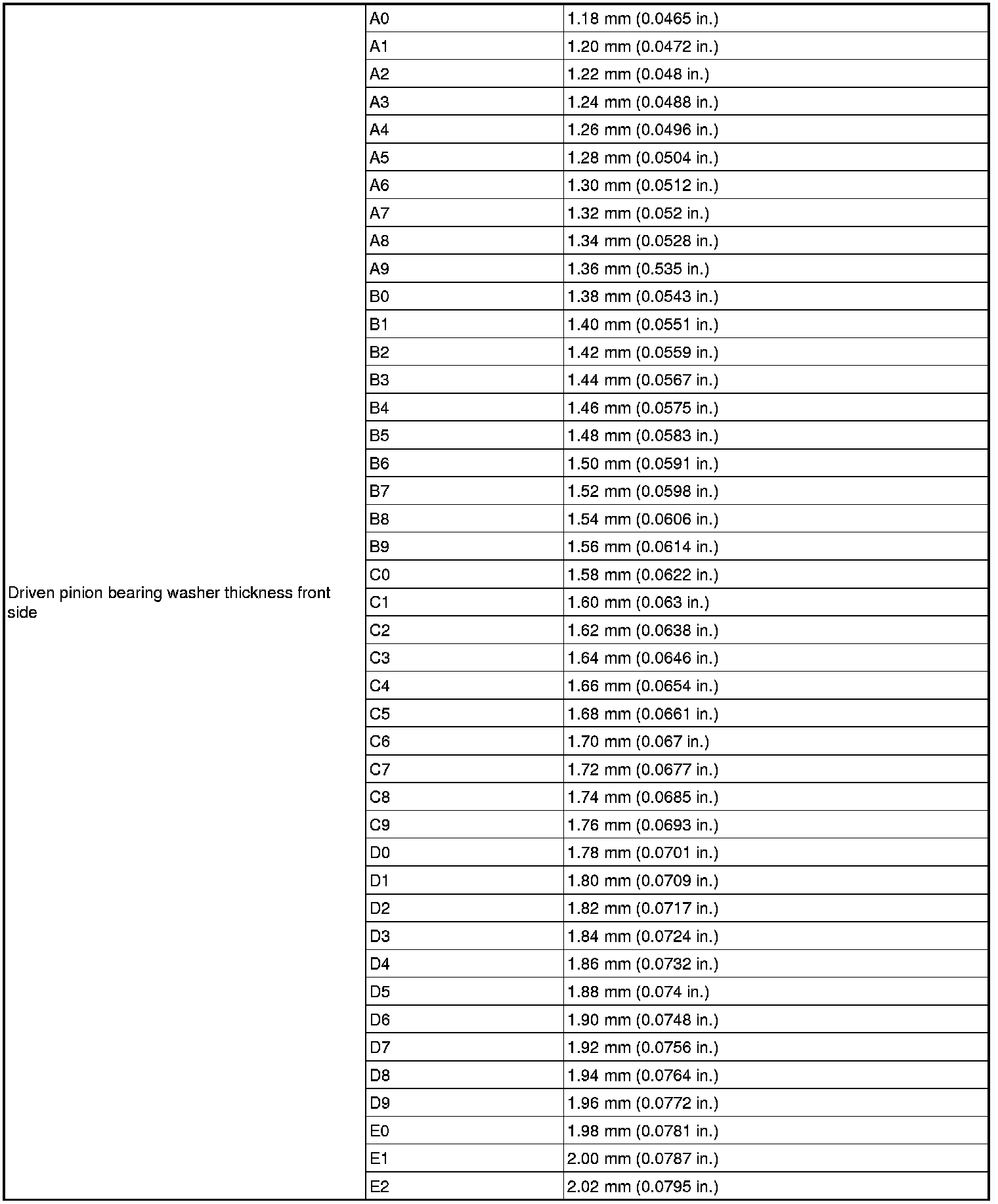

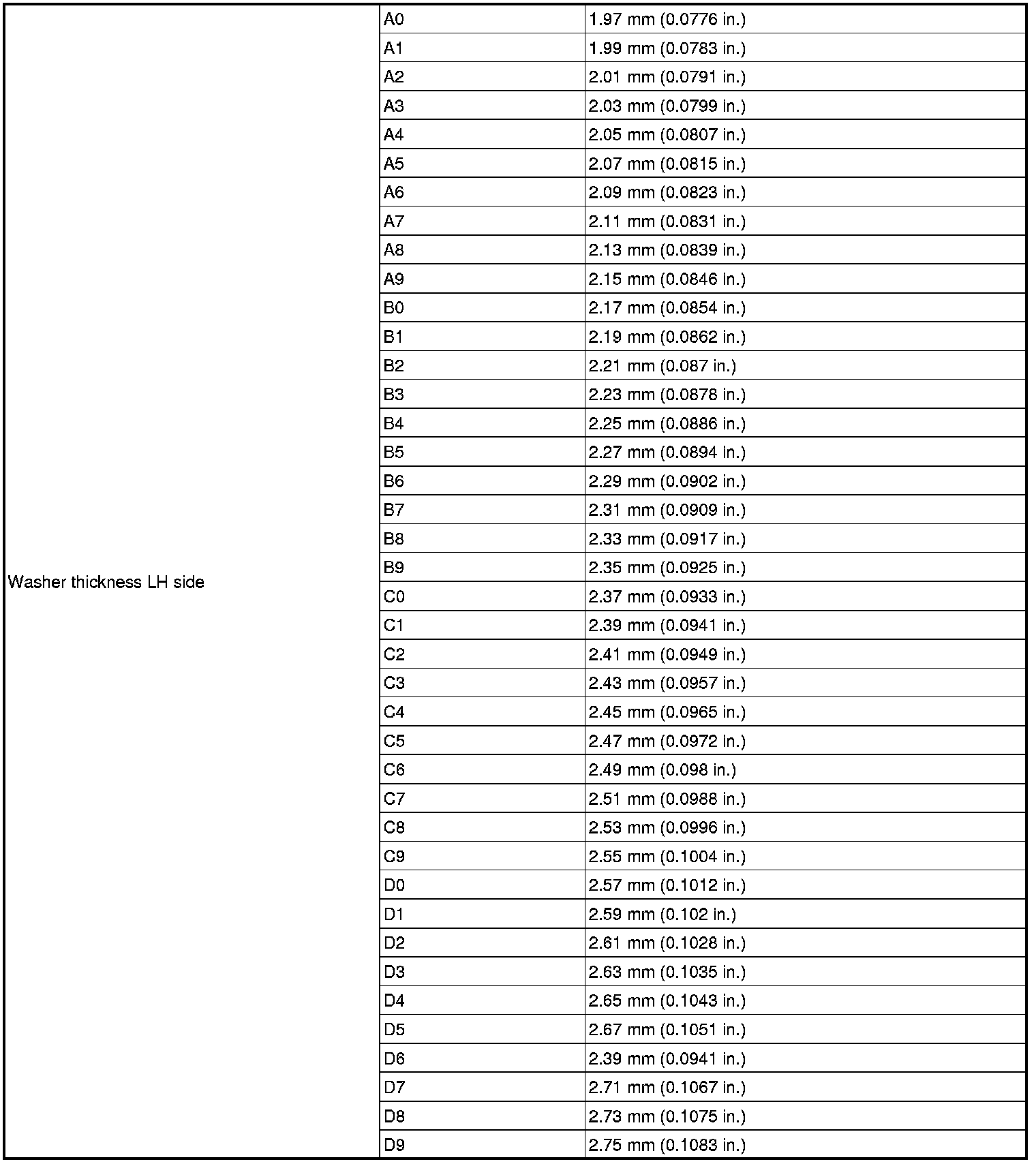

SERVICE SPECIFICATIONS: GF1A TRANSFER: SERVICE DATA
